To use this feature, you must have the SVReport.comp file. The SVReport.comp file is bundled
with the processed report.

To compare SANs, complete the following steps:

Select SAN Comparison > Compare SAN.
The SAN Comparison window is displayed.

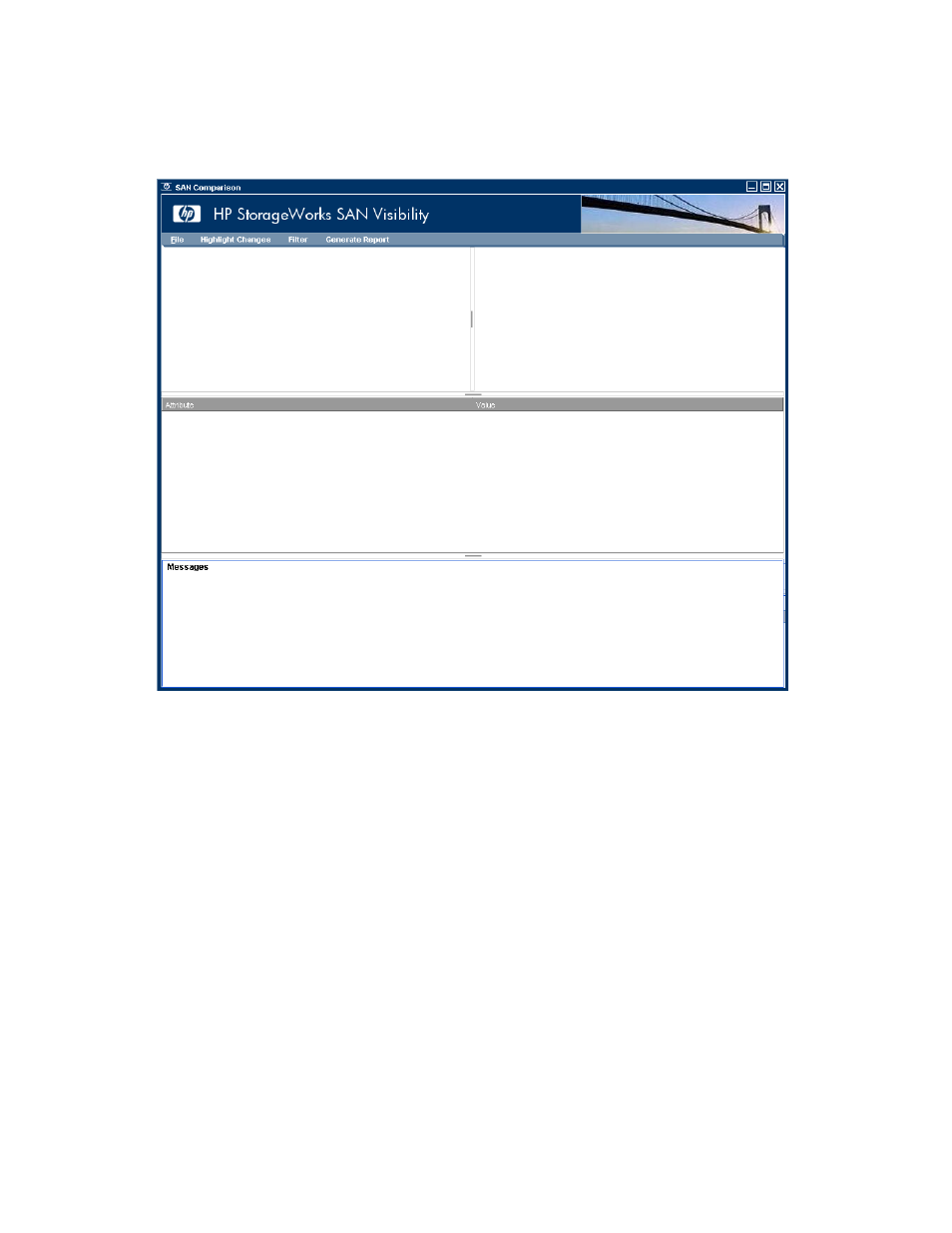

Figure 28 SAN comparison window

Select File > Open > Dataset1.
By default, it opens the ExtractedProcessedReports folder.

Select the SVReport.comp file for comparison.

Follow steps 1–3 to load Dataset 2.
If you select any node in Dataset1 or Dataset 2, the corresponding details of the node will be
displayed.

Select Highlight Changes > Dataset1 or Dataset2 to check the changes.
The changes will be highlighted in red (see

), and the new devices are shown in blue.
