Page 16: San settings window
• Comparing SAN
• Saving the current configuration file
• Opening an existing configuration file
• Exiting from SAN Visibility
Accessing the SAN Visibility GUI
To access the SAN Visibility GUI, complete the following steps:
1.
Double-click the HP StorageWorks SAN Visibility shortcut icon on the desktop.
OR
2.
Go to Start>Programs>Hewlett-Packard>HP StorageWorks SAN Visibility folder. Click HP
StorageWorks SAN Visibility. The SAN Visibility welcome screen is displayed.
3.
Click OK to view the SAN Settings window.
Specifying SAN details
The SAN Settings window displays SAN details. It enables you to add and modify a SAN group.
shows the SAN Settings window.

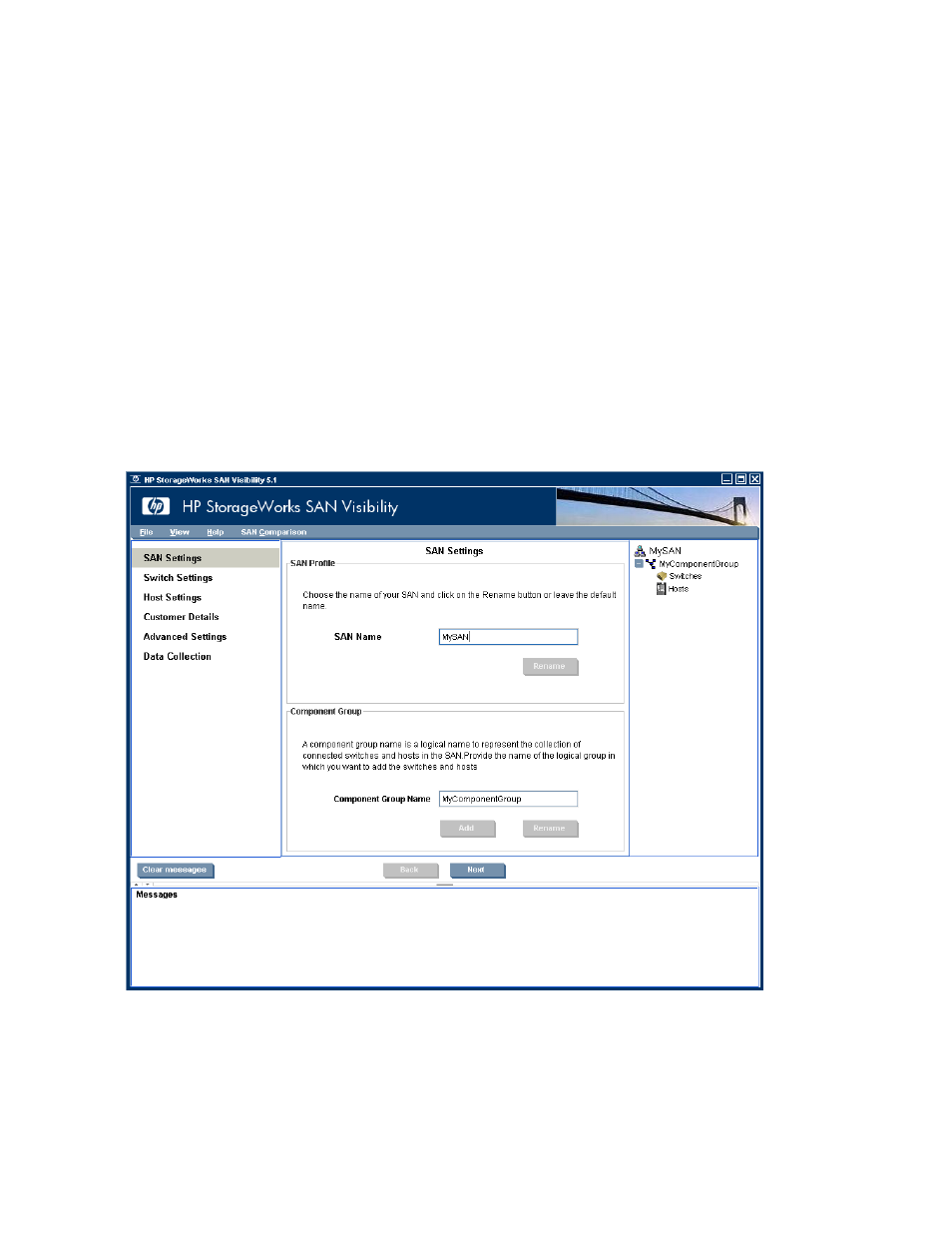

Figure 3 SAN Settings window
.
Using SAN Visibility
16
