7 Using the Version 2 GUI
Version 2 shares some tabs with ShadowImage for Mainframe.
This chapter describes the items on the windows that display when you click the shared tabs and
Version 2 original tab.
•
•
•
•
Pair Operation Window
The Pair Operation window displays the volume and pair information for the selected CU image
on the connected storage system.
An LDEV number that ends with a pound or gate symbol (#) indicates that the LDEV is an external
volume (for example, 00:00:01 #). For details about the external volumes, see the HP
XP24000/XP20000 External Storage Software User Guide.
Though the Pair Operation window displays the relationship information for Version 1, Version 2,
and the pair information for ShadowImage for Mainframe. This section only explains items related
to Version 2 relationships. For details about the items related to Version 1 relationships, see
. For details related to ShadowImage for Mainframe pairs, see the Hitachi ShadowImage™
for Mainframe User Guide: HP XP24000 Disk Array, HP XP20000 Disk Array.

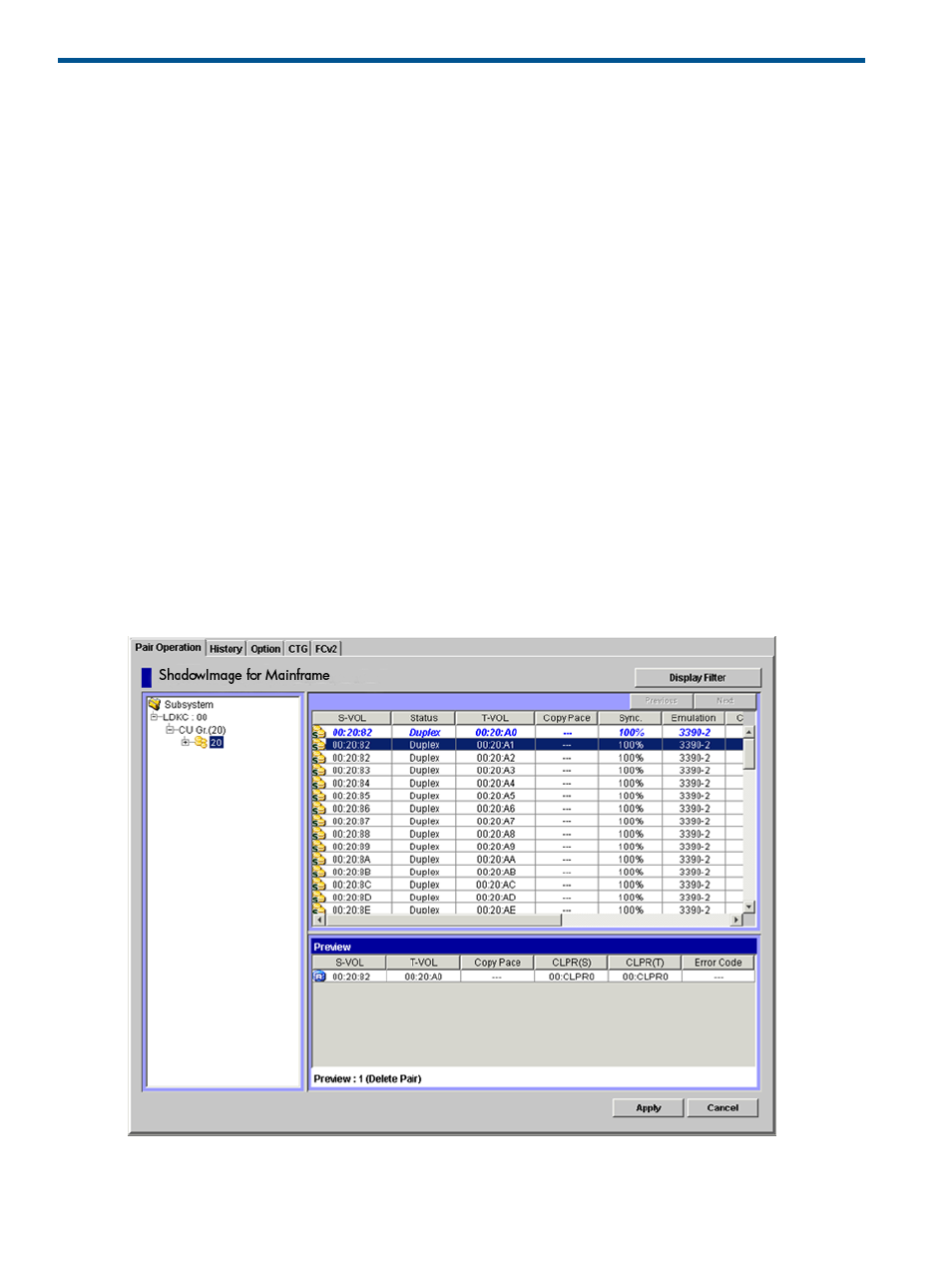

Figure 40 Pair Operation Window
