• Serial: Product serial number.
• Product: Product name.
• Vendor: Vendor name.
• WWN of the external array
• LUN: LU number in the external array.
• Characteristic: External LU's ID number.
• Device: External LU's device name.
• Ex-Dev. info.: Information about the external array. When the external array is an SATA/FATA
drive, an asterisk (*) appears.
• VMA: Information about the VMA setting by XP LUN Security Extension. When VMA is set for
the volume, an asterisk (*) appears.
• Capacity: External LU's capacity in blocks.
• Characteristic2: External LU's extended identifying information. This information is used for
identifying logical volumes in the EVA array. For more information, see Identifying logical
volumes of EVA arrays (using Characteristic 2) .
WWN tree
To display the WWN tree, select the WWN tab. The information already set in the status that the
Device tree is selected is displayed. The contents displayed in the WWN list (upper right of the panel)
change corresponding to the items selected in the WWN tree.

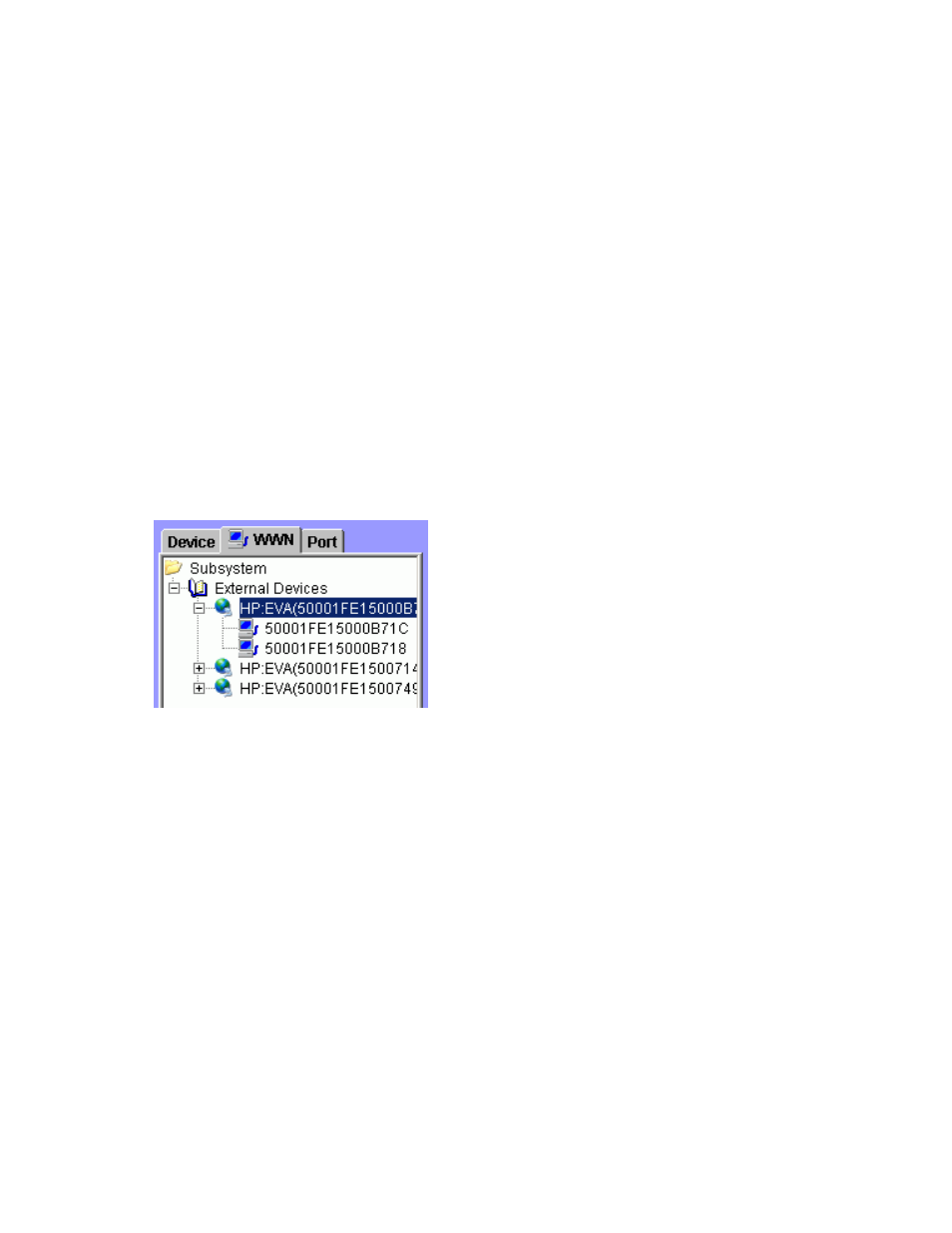

Figure 31 WWN tree
.
• Subsystem
When selected, displays nothing in the WWN tree. Subsystem is selected when you initially display
the WWN tree.
• External Devices
When selected, displays information about the external array connected to the external port in
the WWN list.
• Product name of the connected external array
When selected, displays the name of the external array for which the connection setting is already
completed in the tree under External Devices.
• WWN of the external array
When selected, displays WWNs identifying ports on the connected external array in the tree under
the name of the external array product.
