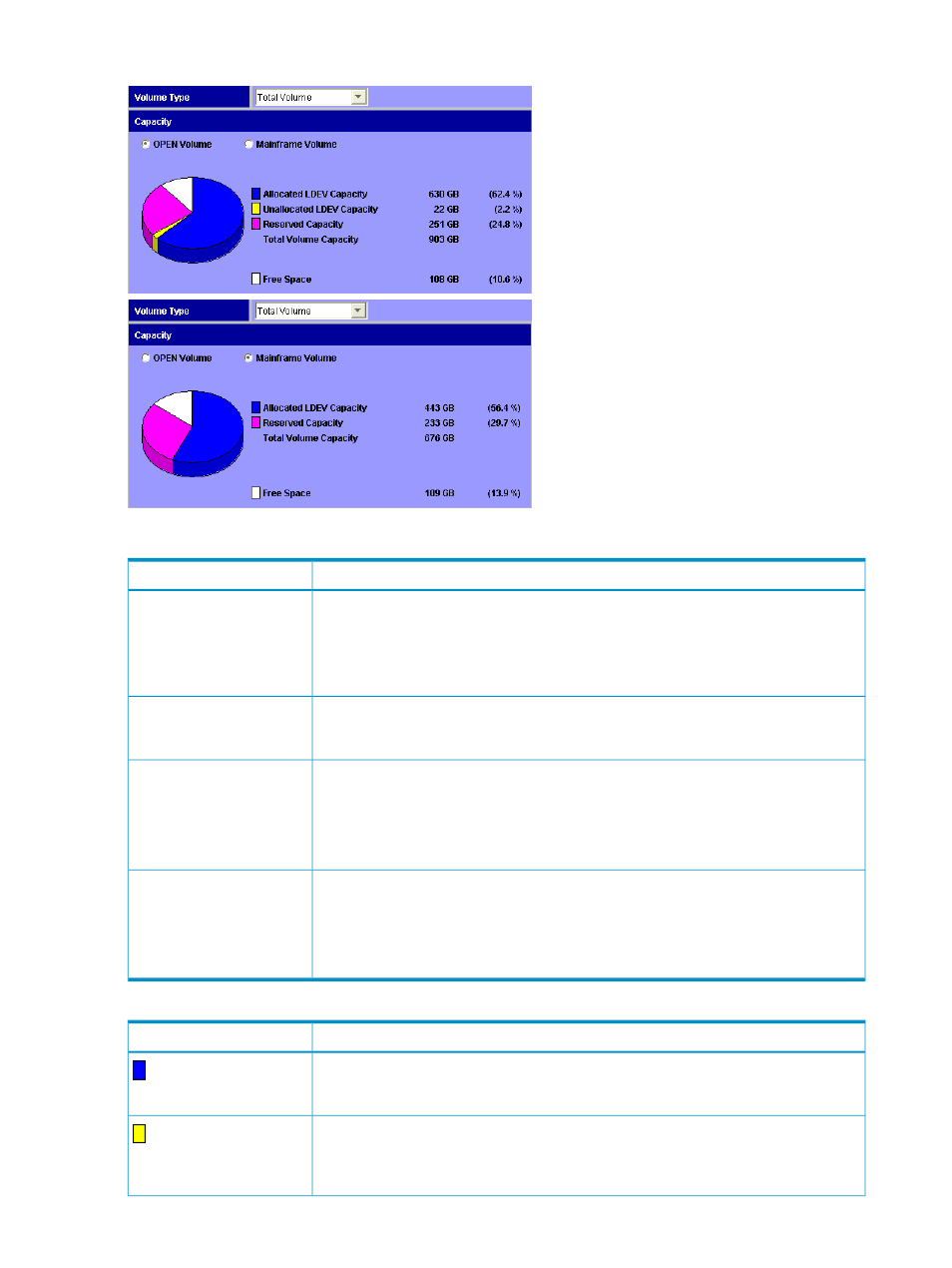

Figure 29 Volume Type and Capacity in LDEV Information
Table 24 LDEV Information Details
Description Item
Allows you to select the type of volume capacity information from the Volume Type list:
•
Total Volume: Information on all the volumes.
• Internal Volume Only: Information on only the internal volumes.
•
External Volume Only: Information on only the external volumes.
Volume Type
Provides the capacities in MB when the Total Volume Capacity is 10 GB or less, and in
GB when the Total Volume Capacity is more than 10 GB. The percentages (%) of the
capacities relative to total capacity are shown in parentheses. Capacity
When selected, shows the volume capacity information (capacity by volume type, pie
chart, total capacity) on open-system volumes in the storage system. The information does
not include the capacity of the V-VOL. When there is no open-system volume, No Volume
appears.
See Table 25 (page 64) for the capacity pie chart when OPEN Volume is selected.
OPEN Volume
When selected, shows the volume capacity information (capacity by volume type, pie
chart, total capacity) on zSeries, S/390 (mainframe), and multiplatform volumes in the
storage system. The information shown does not include the capacity of the V-VOL. When
there is no zSeries and S/390 volume, No Volume appears.
See Table 26 (page 65) for the capacity pie chart when Mainframe Volume is selected.
Mainframe Volume
Table 25 Open Volume Capacity Pie Chart
Description Item
The capacity of open-system volumes (LDEVs) that have assigned paths and are available
to the user. This capacity also includes all LDEVs that consist of LUSE volumes, but does
not include control cylinders. This capacity is indicated in the pie chart by the blue area.
Allocated LDEV Capacity
The capacity of open-system volumes (LDEVs) that do not have assigned paths and are
available to the user. This capacity does not include control cylinders, reserved volumes
of XP Auto LUN, journal volumes, pool volumes, system disks, or quorum disks. This
capacity is indicated in the pie chart by the yellow area.
Unallocated LDEV
Capacity
