Connecting Multi-channel Audio Speakers to the PC
If your PC has multi-channel speakers capability
(select models only), you can connect speakers for
4-channel or 6-channel output. You must connect
your speaker system to the PC, and then configure
the audio software for sound output. Your PC may
include the Multi-channel Sound Manager or the
Creative SoundBlaster Audigy sound manager.
Refer to the correct procedure to configure your
multi-channel speakers.
1
Turn off the PC.
2
Connect the three audio cable plugs from the
speaker system to the connectors on the back
of the PC (see the table).
3
Turn on the PC.
4
Turn on your speaker system.
5
Configure the multi-channel audio output; refer
to the next procedure.
Connect speaker
channels (plugs) To PC back
connector
Front speakers Audio (Line) Out (K)
(lime-green)
Rear speakers Audio (Line) In (blue) (L)
Center/subwoofer
speakers Mic-1 (pink) (J)
n
If you do not see
the Speaker
Configuration tab,
your PC may not
have the multi-
channel option.

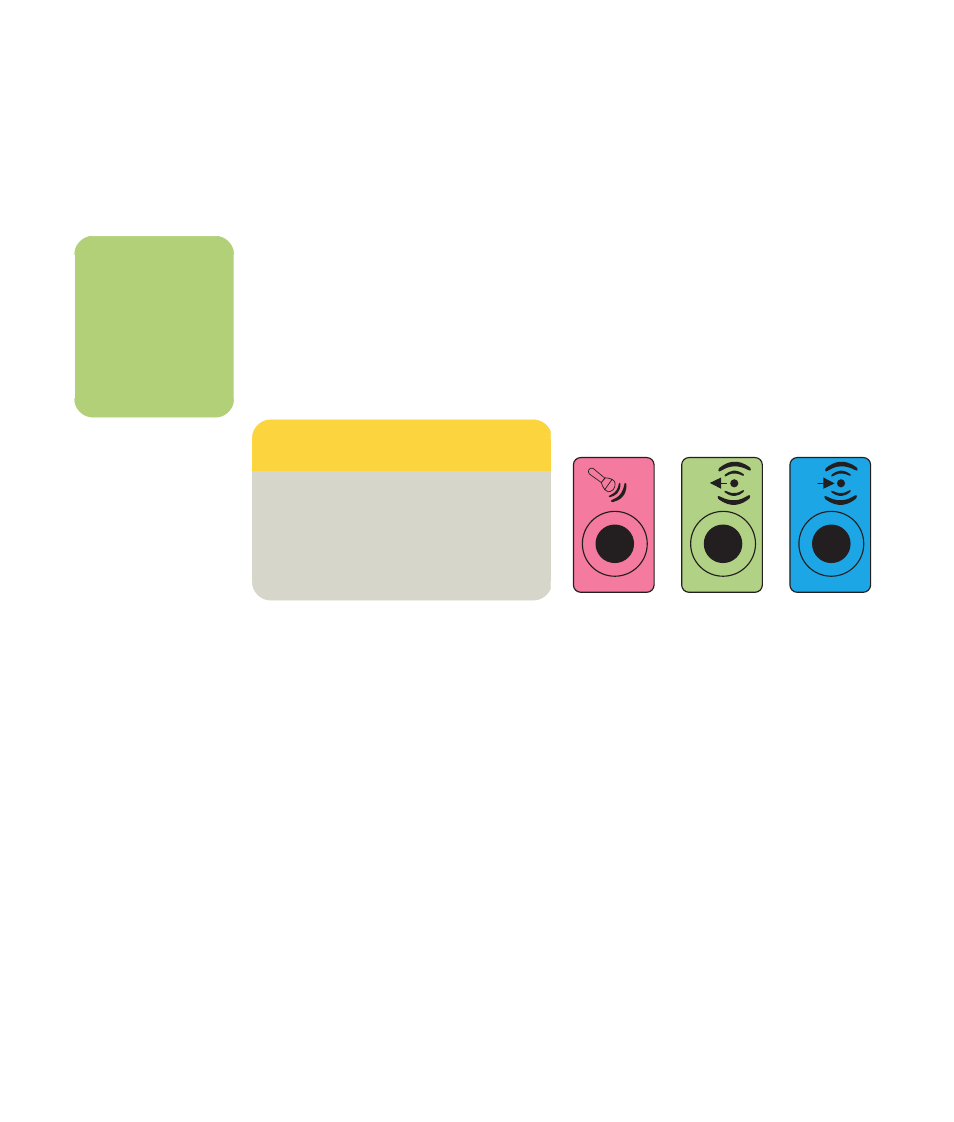

IN
L J
OUT
K
