5.1 Audio Connectors

(Select Models Only)

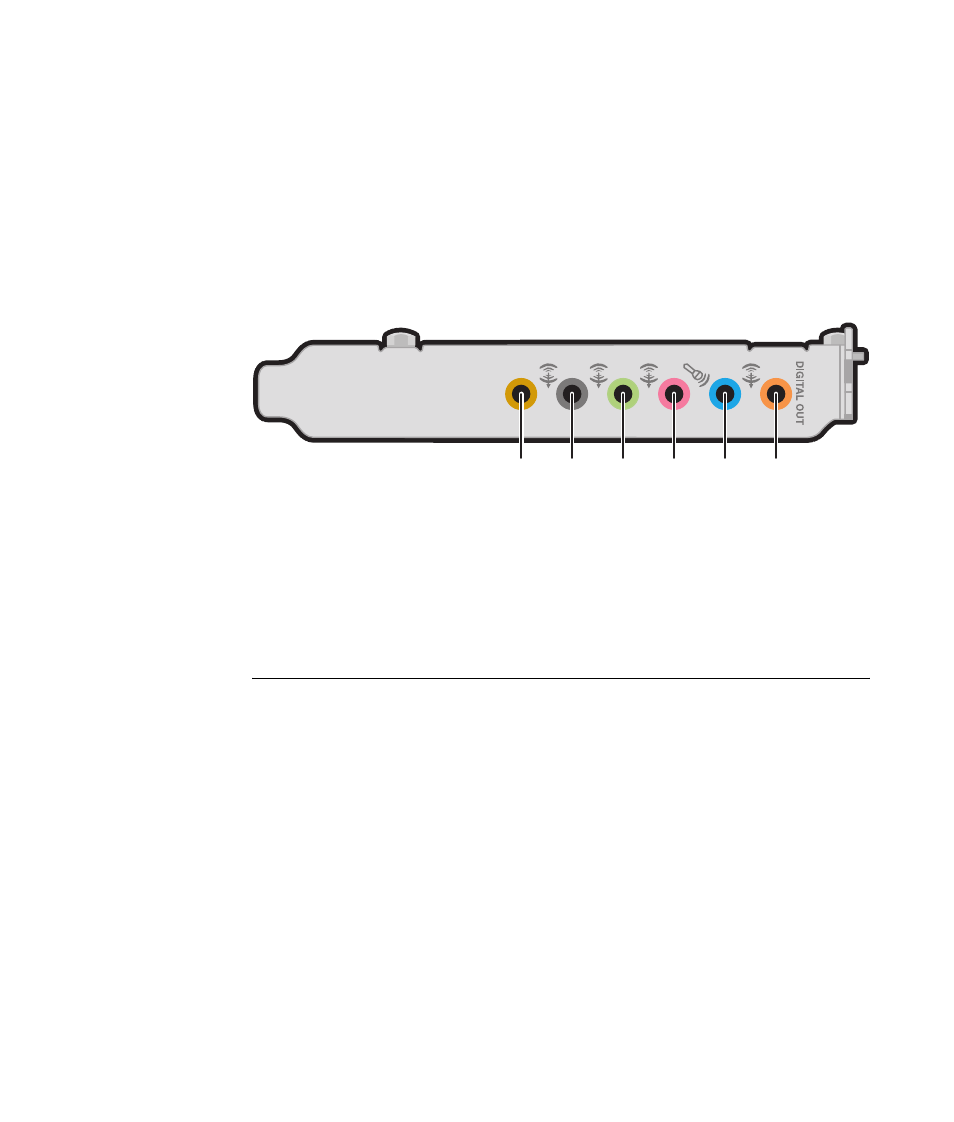

The audio connectors on the back of the PC include
analog and digital outputs as well as a microphone
and an audio input. Refer to “5.1 Speaker System”
on page 31 for more information.

A Line out

(light orange) for the central/subwoofer

speaker, connects to an active multi-channel six
speaker system such as the 5.1 speaker system.

B Line out

(black) for rear speakers, connects to an

active multi-channel six speaker system such as
the 5.1 speaker system.

C Line out

(lime green) connects to an active stereo

or multi-channel speaker system.

D Microphone

Mic (pink) connects to a

microphone.

E Line in (

blue) connects to an analog audio

device for sound input to the PC.

F Digital Line out

(dark orange) connects to a

digital device such as a stereo system with
digital input.

Setting up digital speaker output

1

Click Start, choose All Programs,
Creative
, Sound Blaster Audigy 2, and
then click Creative Speaker Settings.

2

Select a speaker setting from the Speaker/
Headphone Selection drop-down menu.

3

For digital speakers, place a check mark in
the Digital Output Only check box.

4

Close the Sound Settings window.
