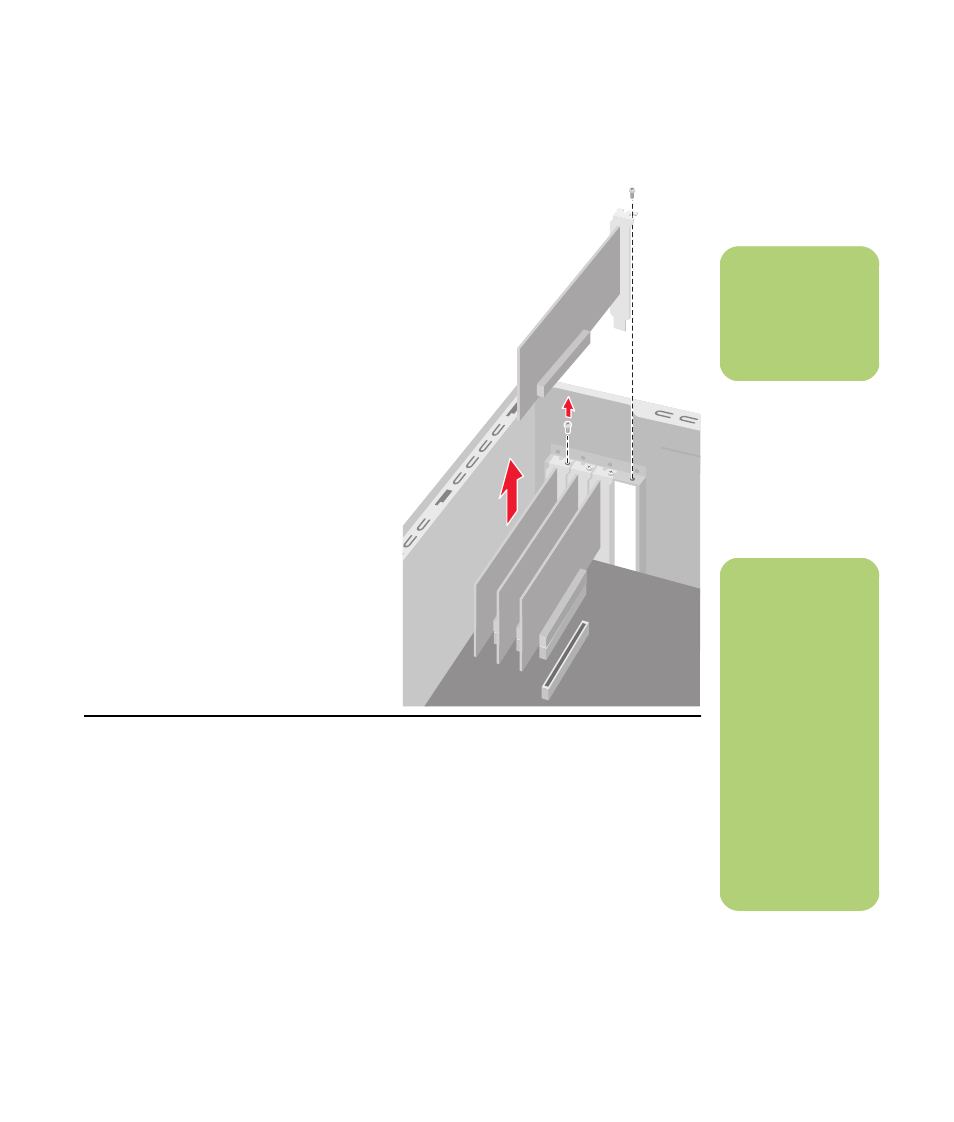

Removing Add-In Cards
1
Disconnect any external and internal cables
attached to the card.
2
Remove the screw on the bracket of the card
you are replacing.
3
Hold the metal bracket and the far top
corner of the card. Carefully remove the
card by pulling the card straight out of the
expansion slot.
Replacing Add-In Cards
1
Insert the new card into the slot and push
straight down. Make sure the card is properly
seated.
2
Attach the screw to secure the card you have
replaced.
3
Connect any internal cables to the card.
n
Be careful of the
sharp edges on the
expansion slot cover.
n
Do not overload the
PC by installing
add-in cards that
draw excessive
current. The chassis is
designed to provide
2 amps (average) of
+5 V power for each
board or card in the
chassis. The total
+5 V current draw in
a fully loaded chassis
(one with all add-in
card slots filled) must
not exceed the total
number of slots
multiplied by 2 amps.
