hp media center pc user’s guide
Removing the Fan Duct
Remove the fan duct when replacing memory, an
optical drive, or the drive cage.
1
To disengage the fan duct, push down the
two tabs (A). You can push with your fingers
or a pen.
2
Rotate the fan duct (B) down and out to
remove it from the chassis.
Replacing the Fan Duct
1

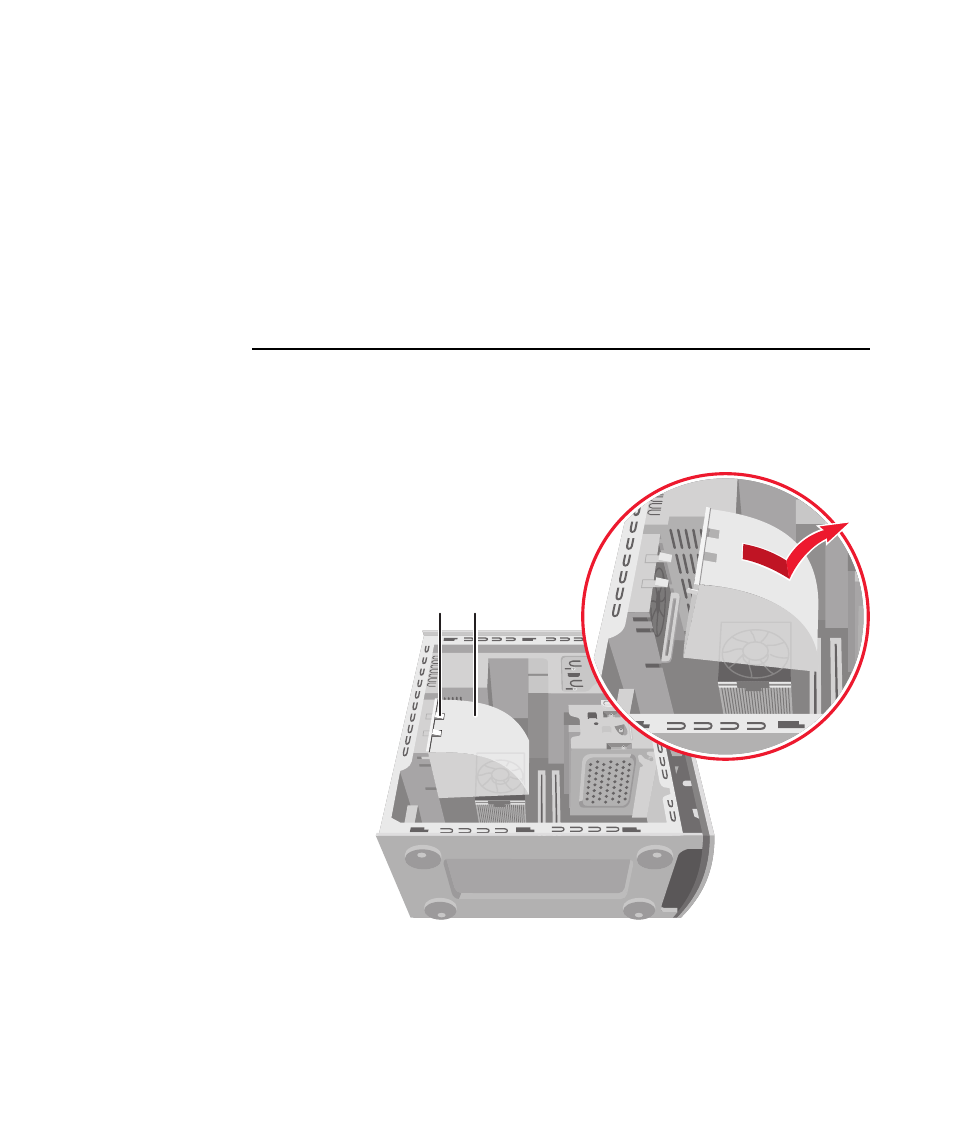

To replace the fan duct, hold the fan duct at a
45-degree angle, and align the bottom of the
duct with the slot on the fan holder.
A B
2
Rotate the fan duct (B) into position. Make
sure it is securely locked.
