183 replacing the side panels, Locating components in the pc chassis – HP Media Center m477.uk Desktop PC User Manual
Page 189

Upgrading and Servicing
183
Replacing the Side Panels
1
To replace the side panel, align the notches on
the panel with the holes on the chassis, slide
the side panel forward until it locks in place,
and then tighten the thumbscrews on the side
panel.
2
Repeat for the other side panel if it was
removed.
3
Reconnect (in this order) the power cord, the
modem/telephone cable, and then all other
cables.

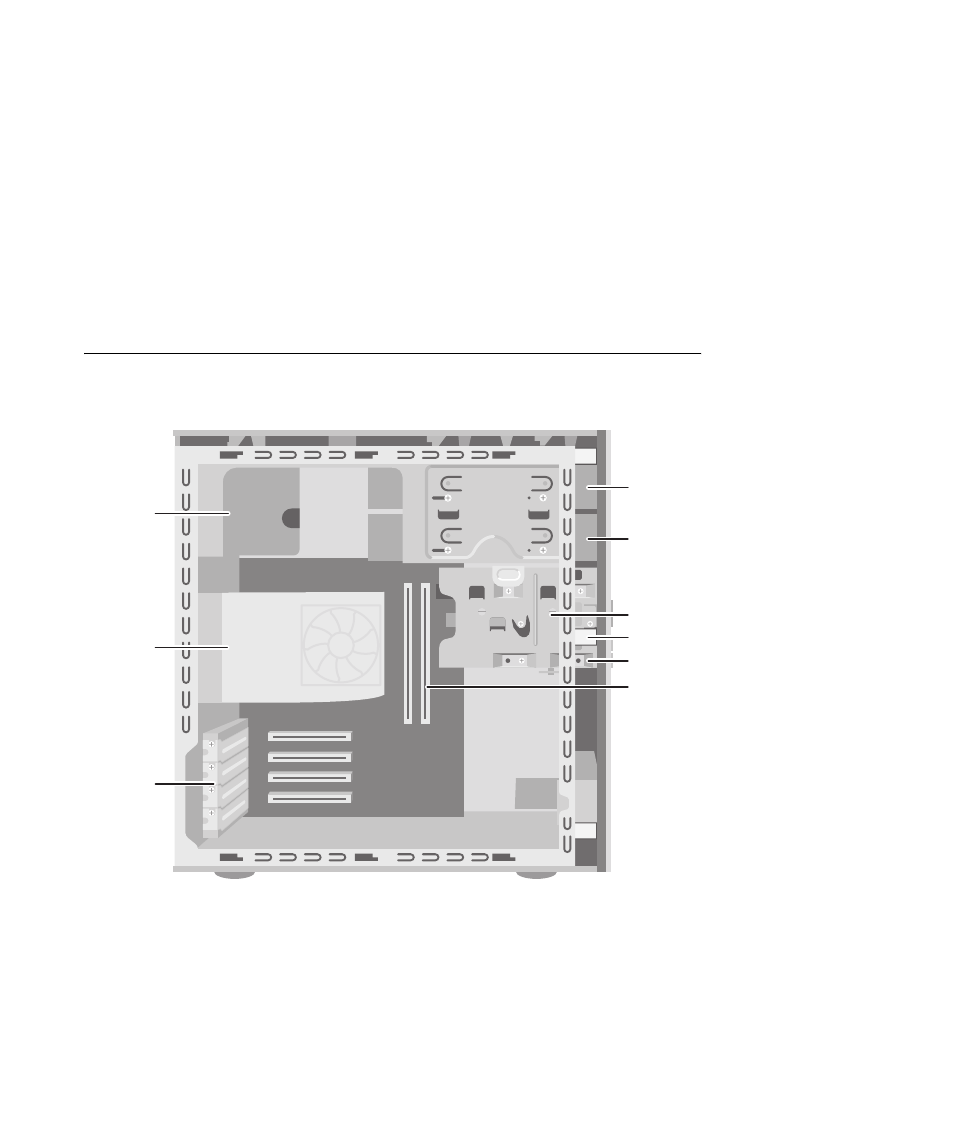

Locating Components in the PC Chassis
A
Power supply
B
Fan duct
C
Expansion (Add-In) cards slots
D
1st optical drive bay
E
2nd optical drive bay
F
Hard disk drive
G
7-In-1 memory card reader
(Some PCs come with a 6-in-1 card reader)
H
Diskette (floppy) drive
J
Memory sockets
A
B
C
J
E
D
F
G
H
