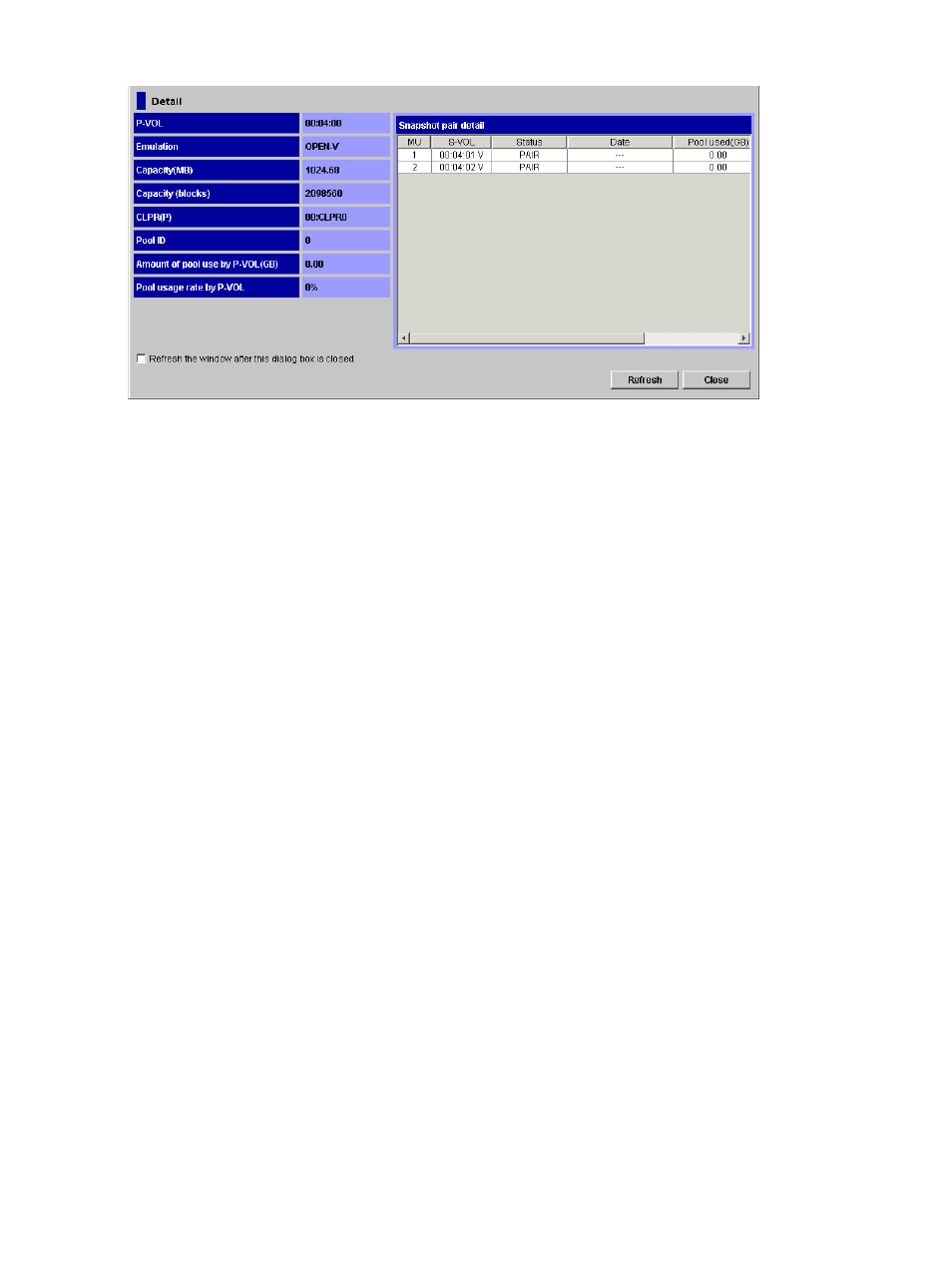

Figure 24 Detail Dialog Box for an XP Snapshot Pair
The Detail dialog box displays the following items.
•
P-VOL
LDKC number, CU number, and LDEV number of the P-VOL are displayed.
•
Emulation
Emulation type of the P-VOL is displayed.
•
Capacity(MB)
Capacity of the P-VOL is displayed. The unit is megabytes (MB).
•
Capacity(blocks)
The number of blocks used by the P-VOL is displayed.
•
CLPR(P)
The cache logical partition (CLPR) of the P-VOL is displayed.
•
Pool ID
The Pool ID of the pool in which the P-VOL is registered is displayed.
•
Amount of pool use by P-VOL(GB)
The Amount of the pool capacity that is used by the P-VOL is displayed.
•
Pool usage rate by P-VOL
The Pool usage rate of the P-VOL is displayed.
•
XP Snapshot Pair Detail list
The following information items of snapshot data are displayed.
◦ MU: snapshot ID
◦ S-VOL: LDKC number, CU number, and LDEV number of the S-VOL
◦ Status: status of the XP Snapshot pair
◦ Date: time when the snapshot data is stored in the pool
◦ Pool used(GB): capacity of the pool that is used by the S-VOL
◦ Sync.: consistency rate of the data of the P-VOL and the S-VOL
