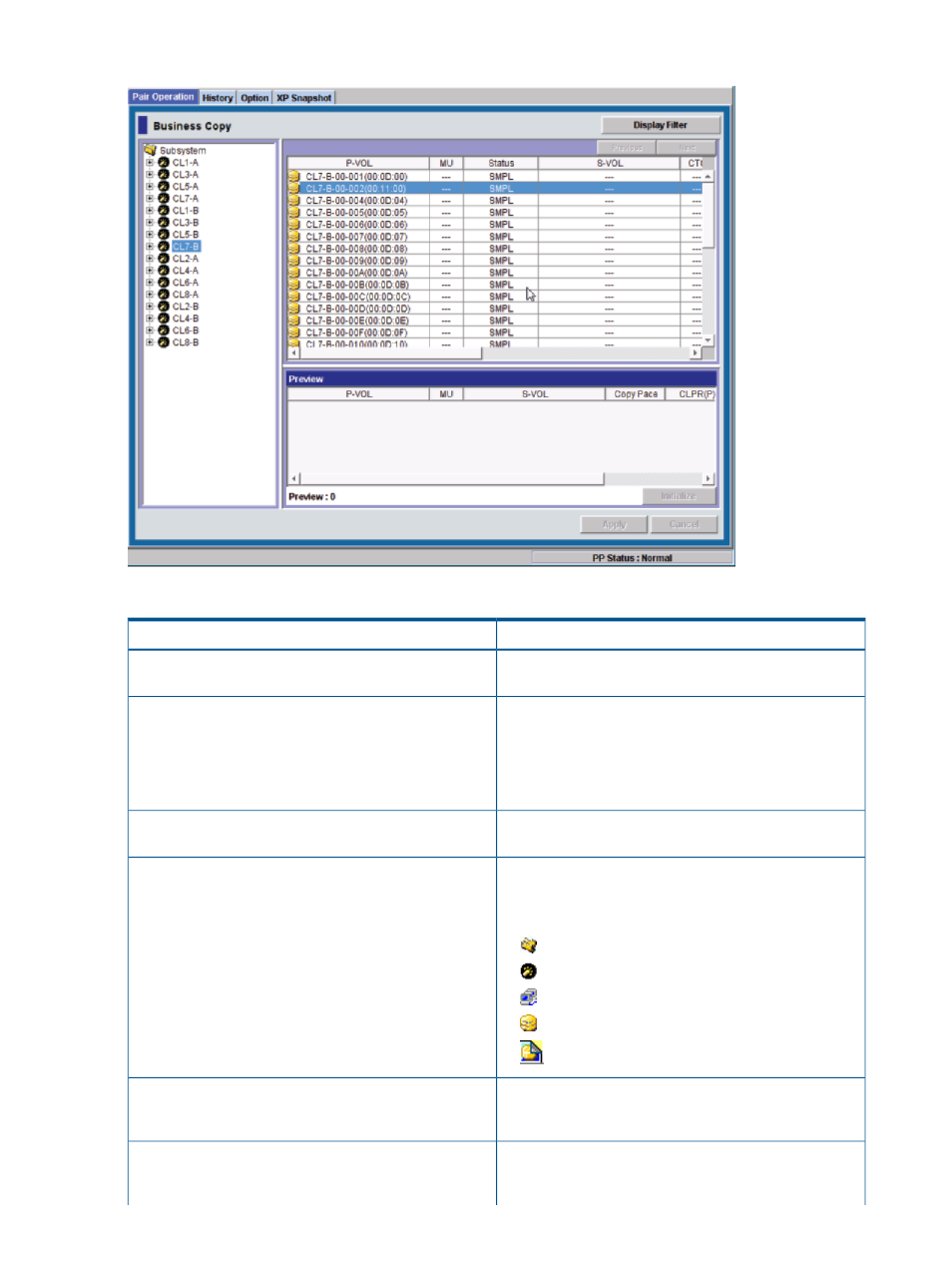

Figure 6 Pair Operation Window
Table 20 Pair Operation Window Items
Description
Item
Displays the Display Filter dialog box (
) where
you can filter the volumes displayed in the volume list.
Display Filter button
Displays the ports that are defined paths or host groups,
in tree style. When you select the items in the tree,
Tree (the area in the left portion of the window)
information about XP Business Copy pairs or XP Snapshot
pairs will be displayed in the volume list on the right of the
window. Note that no volume will be displayed when you
select Subsystem, which is shown in the top of the tree.
Displays all available volumes.
Volume list (the area in the upper right portion of the
window)
The following are the XP Snapshot icons and their
meanings. For the icons related to XP Business Copy, see
Icons
the HP XP24000/XP20000 Business Copy Software User
Guide.
•
: disk subsystem (storage system)
•
: port
•
: host group
•
: LUN or SMPL volume
•
: XP Snapshot pair
Displays the operations that have been performed in the
Pair Operation window, but are still not applied to the
storage system.
Preview (the area under the volume list)
Applies the operations displayed in the Preview list to the
storage system. If the specified operations are applied
successfully, the Preview list will be cleared.
Apply button
