Status
Description
Item
Green = Linked to network
Off = Not linked to network
iLO 2/data link LED
16
Green or flashing = Network activity
Off = No network activity
10/100/1000 NIC activity LED
17
Green = Linked to network
Off = Not linked to network
10/100/1000 NIC link LED
18
HP StorageWorks 1200r All-in-One Storage System
The following figures show components, controls, and indicators located on the front and rear panels
of the AiO1200r.

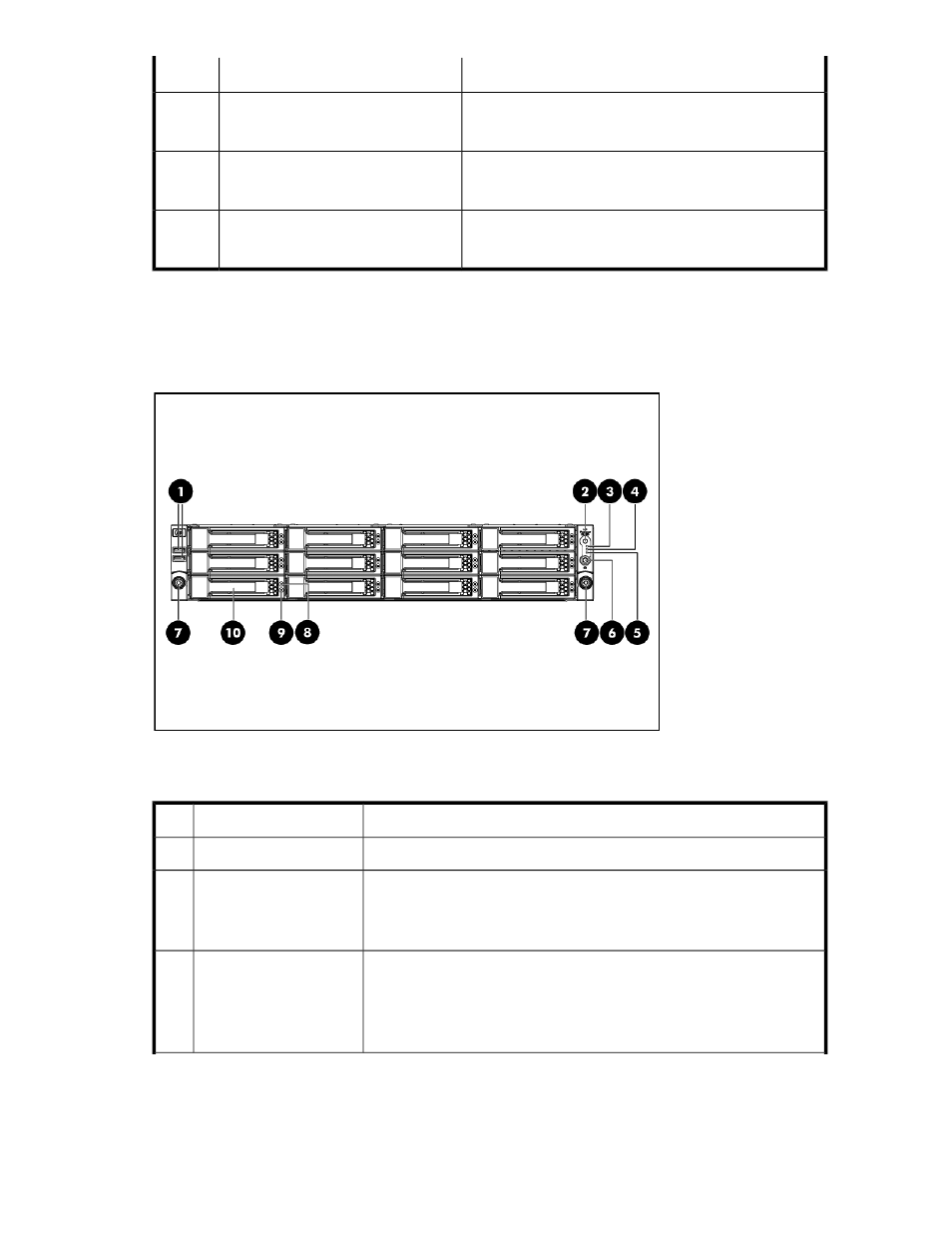

Figure 9 HP StorageWorks 1200r All-in-One Storage System front panel
Table 13 HP StorageWorks 1200r All-in-One Storage System front panel components
Status
Description
Item
N/A
USB 2.0 ports
1
Blue = Activated
Flashing = System remotely managed
Off = Deactivated
Unit identification (UID)
button
2
Green = Normal (system on)
Flashing amber = System health degraded
Flashing red = System health critical
Off = Normal (system off)
System Health LED
3
