HP StorageWorks 1200r All-in-One Storage System - Manual (Page 194)

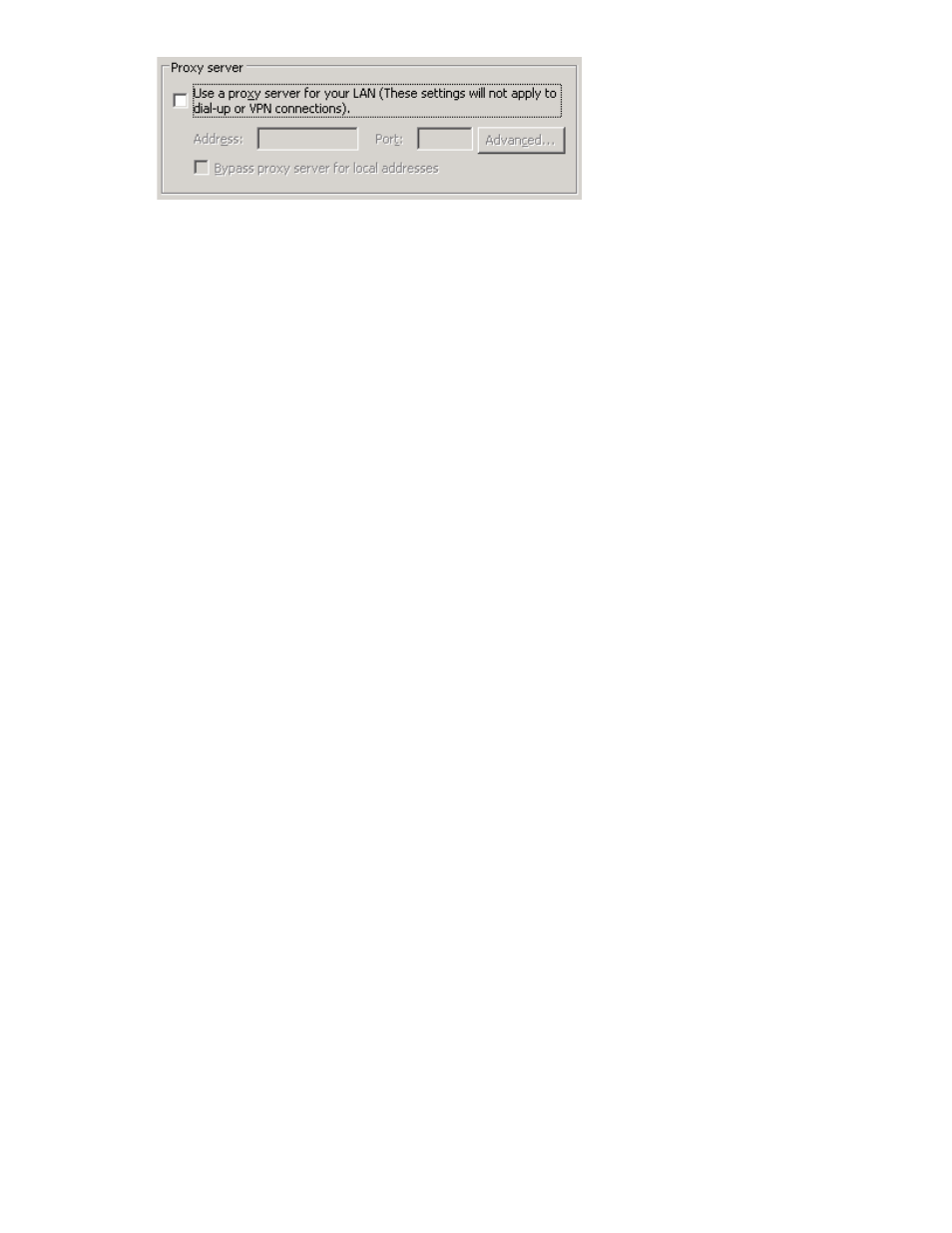

Figure 37 Proxy server settings
3. In the Address box, type the network name or IP address of the proxy server.
4. In the Port box, type the port number that is used by the proxy server for client connections (for
example, 8080).
5. Click the Bypass proxy server for local addresses check box if you do not want the proxy server
computer to be used when you connect to a computer on the local network.
6. Click OK to close the LAN Settings dialog box.
7. Click OK again to close the Internet Options dialog box.
Configuring storage system for Web access (optional) 194
