32 Protecting an Exchange Cluster with a Like-Named Cluster
NOTE: The server name will be appended with the suffix “(like-named)”

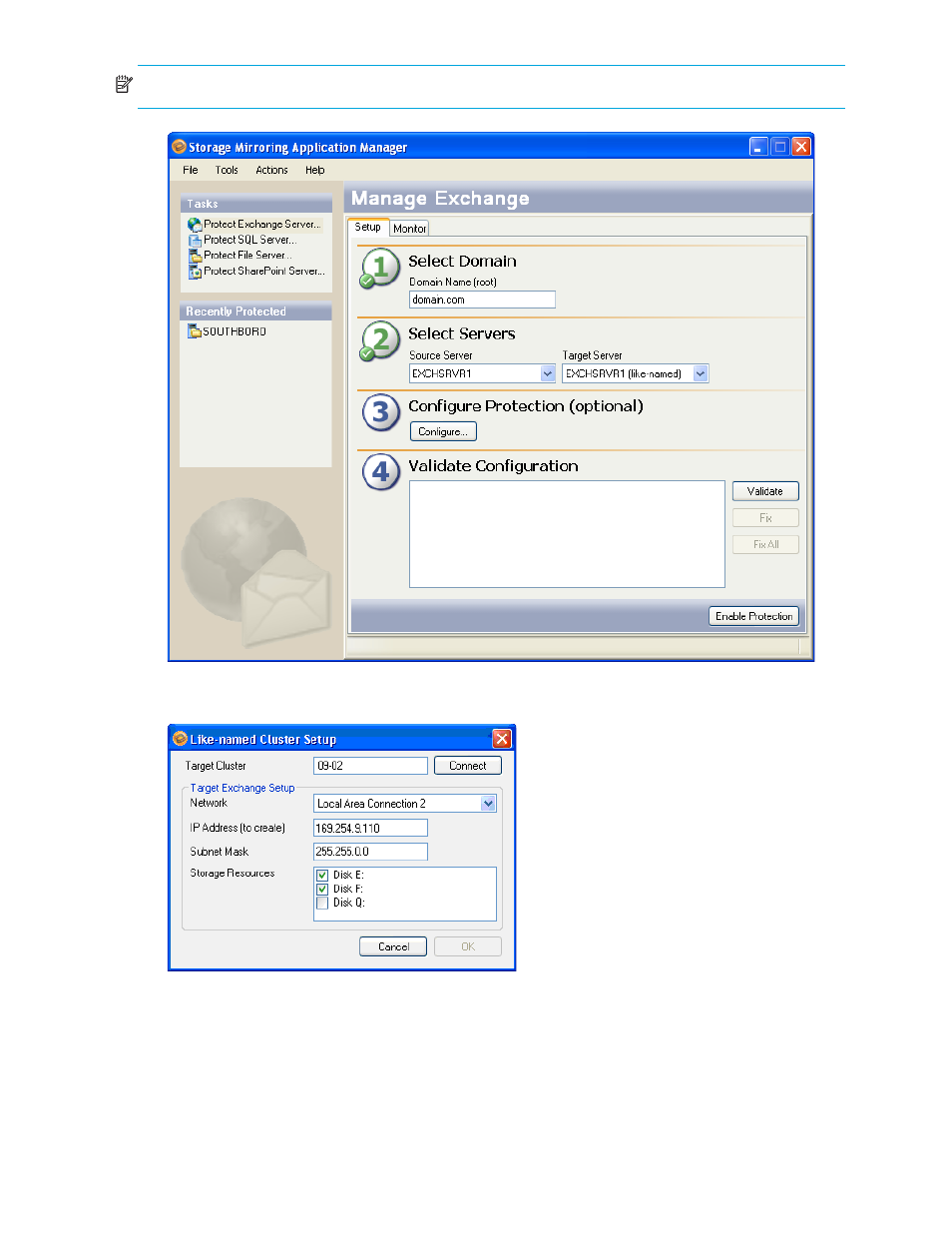

3. After you select a like-named cluster for the target, you will need to configure the like-named cluster. After
you select the target server, the Like-named cluster setup dialog box will appear.
4. Enter the following information:
•
Target Cluster —Enter the name of one of the target nodes, then click Connect .
• Network —Select the NIC to which you will assign the IP.
• IP Address (to create) —Enter a new IP address for the target to use when it stands in for the source.
• Subnet Mask —Enter the subnet mask to use for the new IP address.
• Storage Resources —The Application Manager will automatically select the required storage resources on
the target, provided that they exist (for example, if the source and target both have
E:\
and
S:\
). Verify
that the drive letters where Exchange data is located are selected.
