12 Navigating the user interface
Changing Storage Mirroring Application Manager preferences

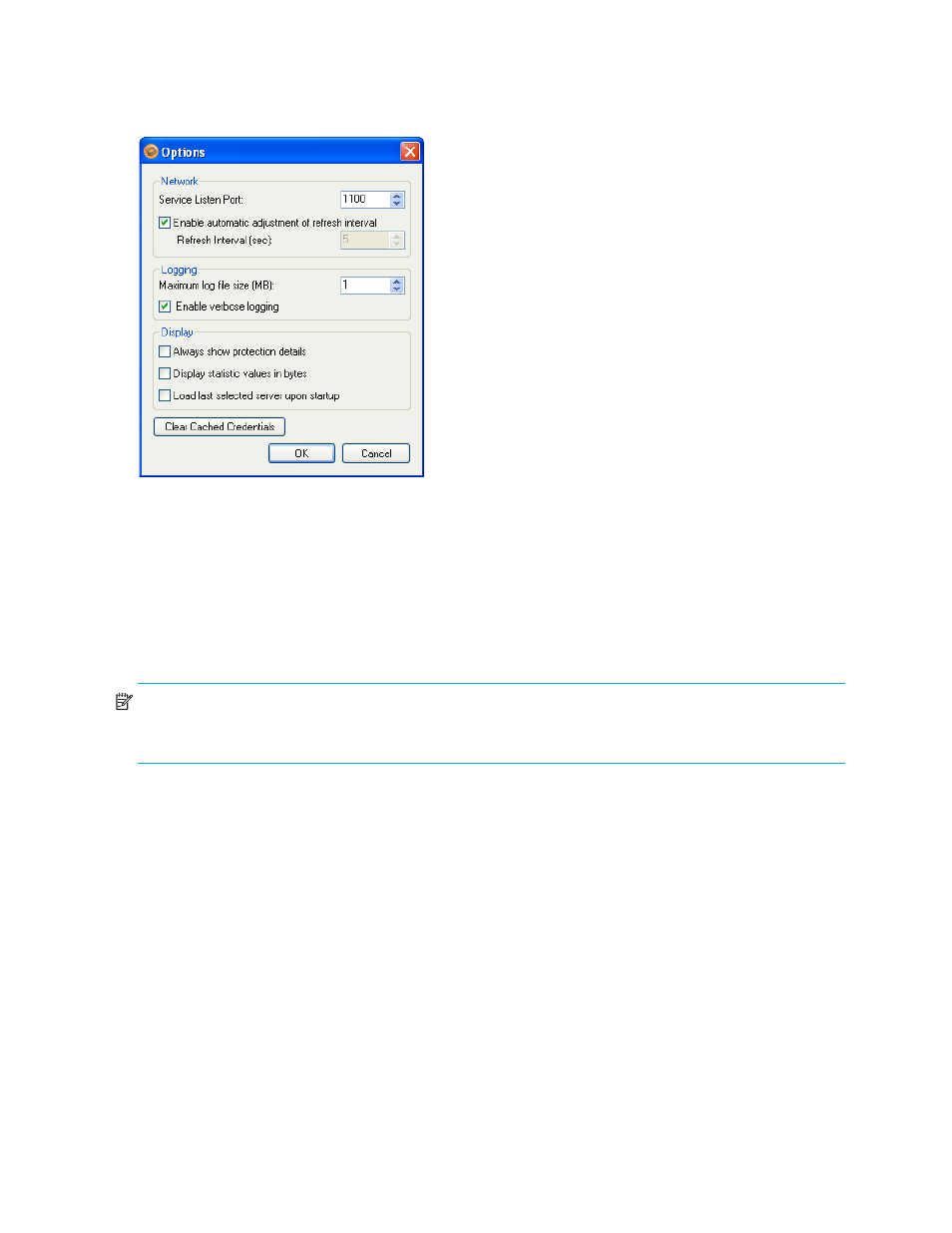

To change display preferences for the Storage Mirroring Application Manager, select Tools, Options . The
Options dialog box will appear.
Service Listen Port —Enter the value for the Storage Mirroring port to be used for Application Manager
communication. The default port is 1100. You can also change the port through the Storage Mirroring
Management Console.
To specify the rate at which the Application Manager updates the protection status, clear the
Enable automatic
adjustment of refresh interval checkbox, then enter the desired Refresh Interval. You can enter a value between 1
and 30,000 seconds.
If you want the refresh interval to be updated automatically, select the
Enable automatic adjustment of refresh
interval checkbox.
NOTE: If the Application Manager appears to be running slowly, it may be because the refresh interval is set
to a long interval. Set a shorter refresh interval, and make sure that the automatic adjustment option is
not
selected.
Maximum log file size —(Default = 10 MB) Enter the maximum size for the
dtam.verbose.log
file. When the
maximum size is reached, the
dtam.verbose.log
file is renamed to
dtam.verbose.prev.log
and
subsequent actions are logged to a new
dtam.verbose.log
file.
Enable verbose logging —(Default = selected) When enabled, all user interactions with Storage Mirroring
Application Manager are logged to the
dtam.verbose.log
file.
To have the Protection Details section on the Monitor tab expanded by default, select the Always show protection
details checkbox.
Select the Display statistics values in bytes checkbox if you always want to show these values in bytes, rather than
in MB, GB, or TB.
If you want Storage Mirroring Application Manager to automatically reconnect to the last protected
source/target pair when it is re-started, select the Load last selected server upon startup checkbox.
To clear the cached user name and password, click the Clear Cached Credentials button.
Click OK to save your changes, or Cancel to discard your changes and exit the Options dialog box.
