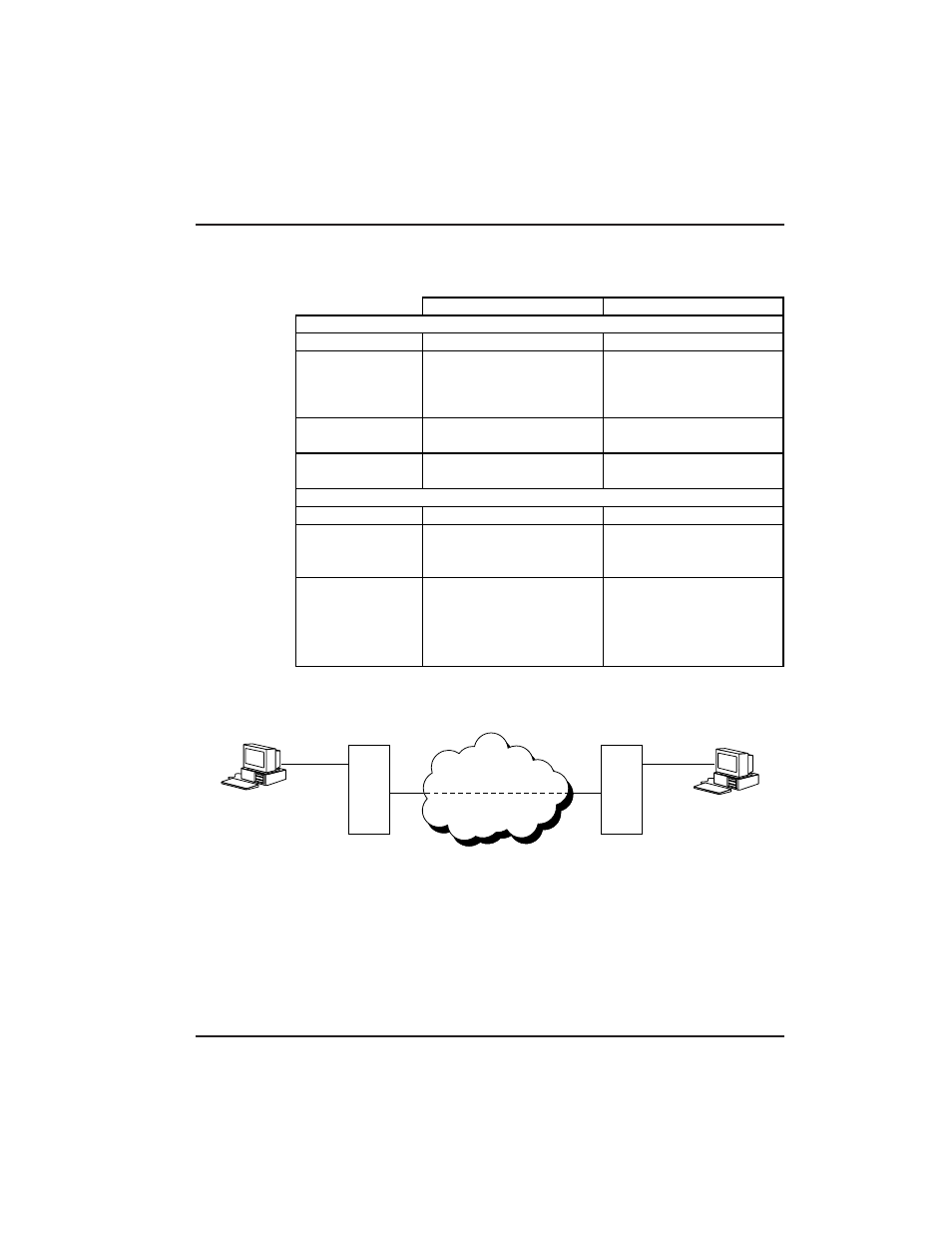

Chapter 4. Applications
Table 4-D
Configuration Settings for Transparent BOP Application
HOST FSU REMOTE FSU
DTE Port 1
P r o t o c o l TRANS BOP TRANS BOP
Physical Layer CONN=V.35 CONN=V.35
Options RATE=64K RATE=64K
IDLE=FLAGS IDLE=FLAGS
HDW FLOW CTRL=ON HDW FLOW CTRL=ON
Protocol
Options N/A N/A
P r o t o c o l FAR END PORT=1 FAR END PORT=2
Address Table DLCI=100 DLCI=17
Network Port
Interface Type NET NET
Physical Layer LOOP RATE=64K LOOP RATE=64K
Options CLOCK SOURCE=SLAVE CLOCK SOURCE=SLAVE
Frame Relay SIGNAL TYPE=ANNEX D SIGNAL TYPE=ANNEX D
Options T 3 9 1 = 1 0 T 3 9 1 = 1 0
N 3 9 1 = 6 N 3 9 1 = 6
N 3 9 2 = 3 N 3 9 2 = 3
N 3 9 3 = 4 N 3 9 3 = 4
PC
PC
ASYNC ASYNC
DTE1 DTE2
DLCI=17 DLCI=100
FSU FSU
UNI
N
UNI
FRAME RELAY
REMOTE LOCAL
Figure 4-6
Transparent Async Application
