Appendix: Connecting the components
254

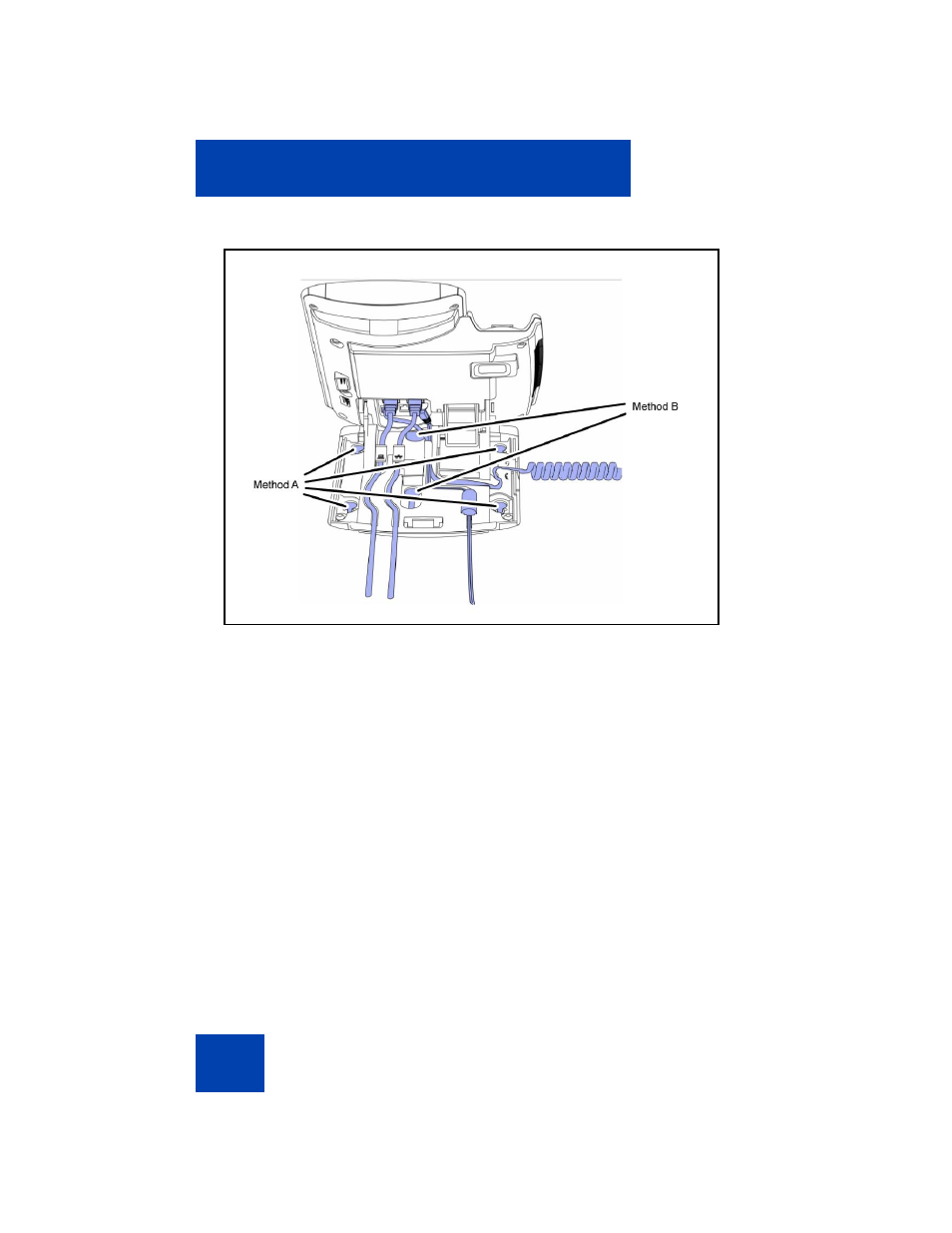

Figure 42: Cable routing tracks and mounting holes
8. Wall-mount your IP Deskphone (optional).
Your Avaya 1165E IP Deskphone can be mounted either by:
(Method A) using the mounting holes on the bottom of the IP
Deskphone stand,
or
(Method B) using a traditional-style wall-mount box with RJ-45
connector and 15-cm (6-inch) CAT5e cable (not provided).
Complete steps 1-7, as needed, before you wall-mount your IP
Deskphone:
Method A: Press the wall-mount lever, and pull the IP Deskphone
away from the stand. Using the stand cover (the part you removed in
step 1), mark the wall-mount holes by pressing the bottom of the
stand cover firmly against the wall in the location where you wish to
install the IP Deskphone. Four small pins on the bottom of the stand
cover make marks on the wall. Use the marks as a guideline for
installing the wall-mount screws (not provided). Install the screws so
that they protrude 3 mm (1/8 inch) from the wall, and then install the
IP Deskphone stand mounting holes over the screw heads. You may
