Chapter 3 Avaya P333T Front and Back Panels
Avaya P333T User’s Guide 11
Avaya P330 Back Panel
The Avaya P330 back panel contains a stacking sub-module slot, power supply and
BUPS connector. Figure 3.3 shows the back panel of the AC switch (top) and the DC
switch (bottom) with a stacking sub-module installed.

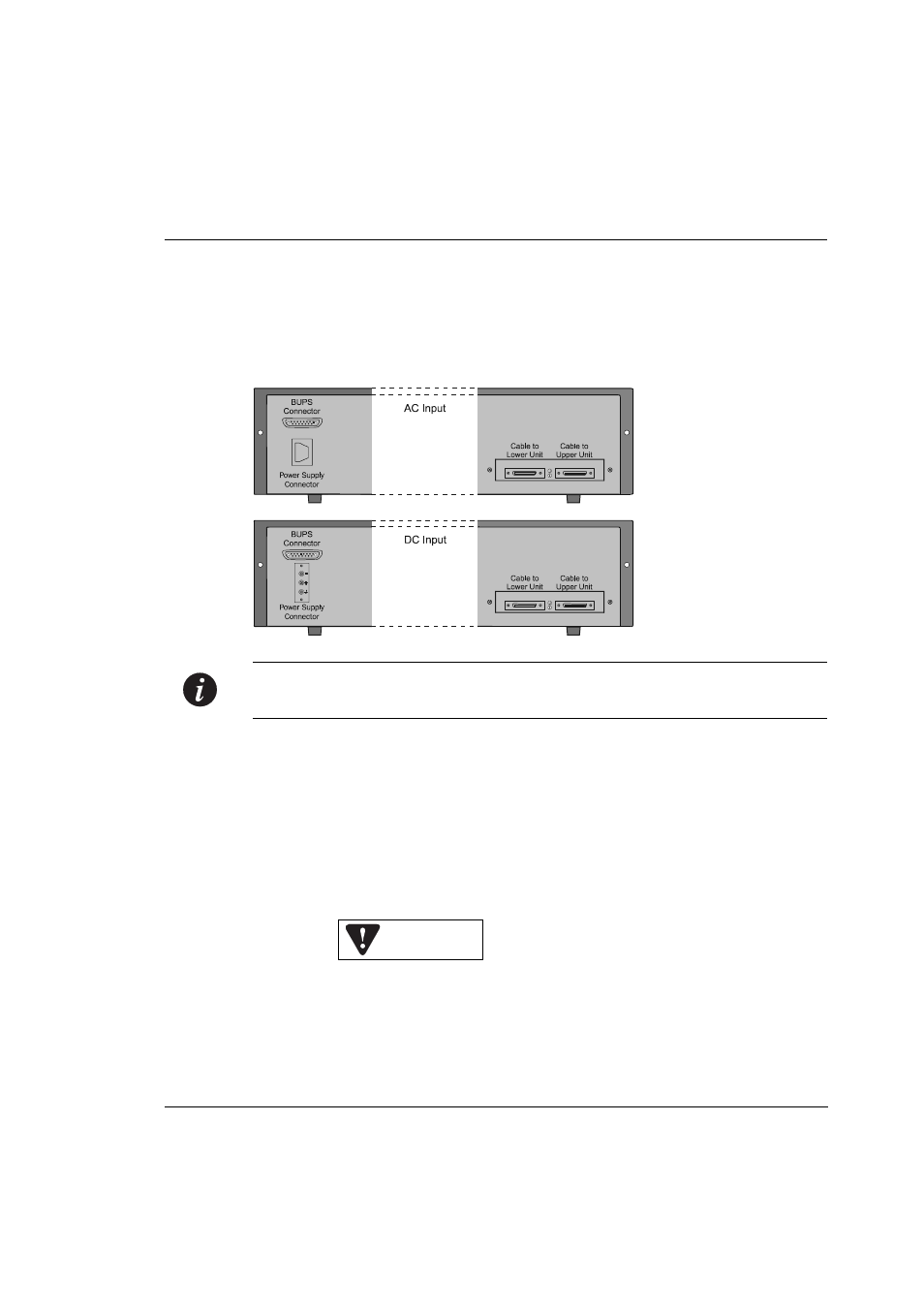

Figure 3.3 Avaya P330 AC and DC Back Panels
Note: Further illustrations of the Avaya P330 Back Panel will be that of the AC
model, the topmost panel in Figure 3.3.
Figure 3.3 shows the back panel of the AC switch (top) and the DC switch (bottom)
with a stacking sub-module installed.
BUPS Input Connector
The BUPS input connector (see Figure 3.4) is a 5 VDC connector for use with the
Avaya P330 BUPS unit only. A BUPS Input sticker appears directly to the right the
BUPS input connector.
Figure 3.4 BUPS Input Connector Sticker
BUPS Input
