Instruction Manual CyberComm 6000
15
1.6.2 Data Export
The following data can be transferred from CyberComm to the meter.
ƒ Setup data
ƒ Standardization data
When you export setup and standardization data, only the data of the current project
is transferred to the meter.
To export data:
1. Click on Project button to switch to Project tab.
2. In the menu bar, click Sync Data and then click on any of the following sub
menus :
ƒ
Export Setup Data, or
ƒ Export STD Data
3. Sync Device Data dialog appears (Figure 15). Click Start Synchronization. The
progress bar shows the status of data synchronization.

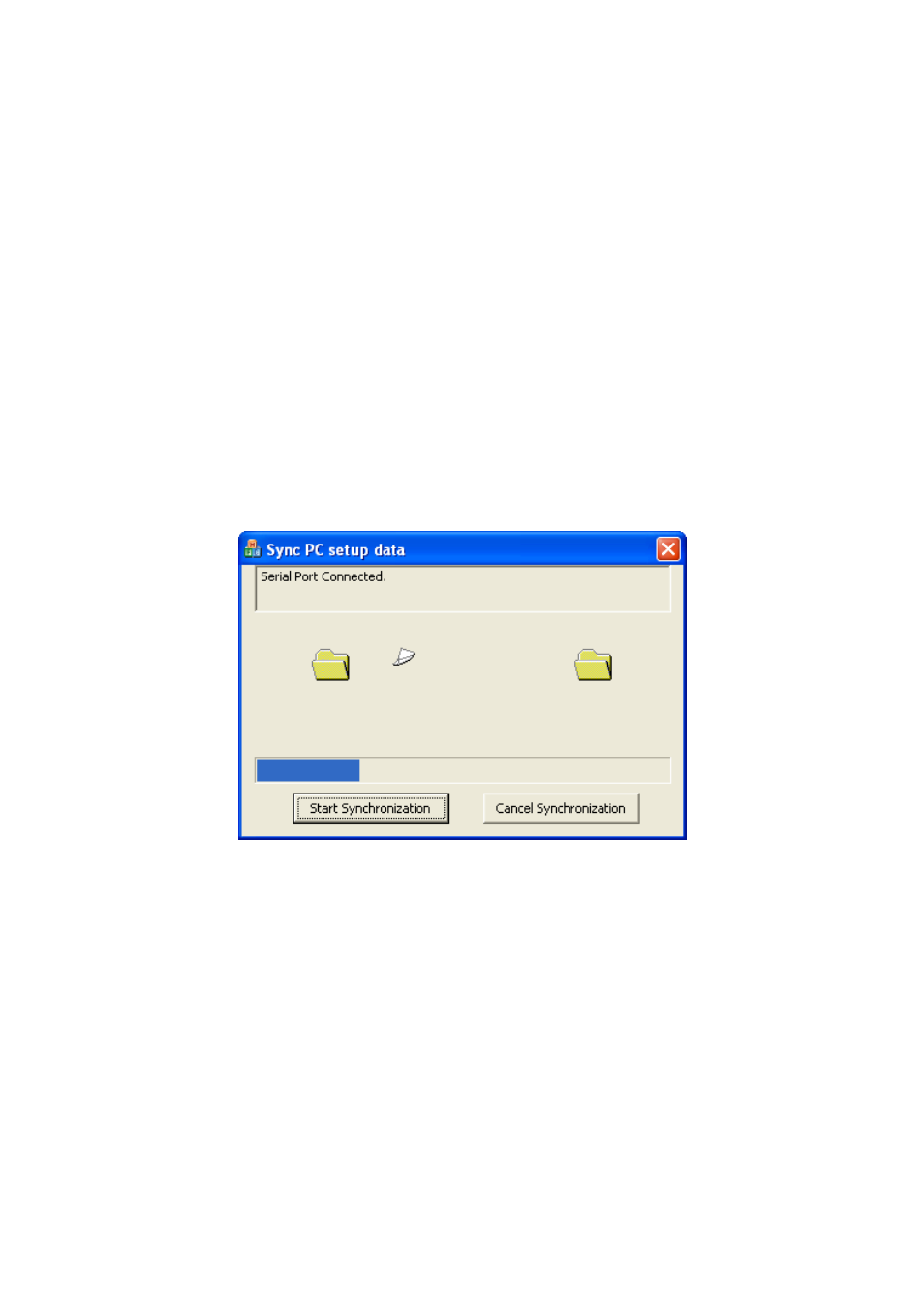

Figure 15 : Synchronizing CyberComm data
4. When the data export is competed, the dialog box closes automatically and the
selected data (setup or standardization) of the current project copied to the meter,
replacing previously stored data of the meter (if any).
