To connect the Conductivity/TDS electrode with built-in temperature sensor:
a)
During this operation, it is important that water does not get onto the BNC connector.
Also avoid touching the connector with soiled hands.
Slide the electrode connector of electrode over the socket of the meter (BNC connector).
Ensure that the slot of the connector is inline with the protrusions of the socket.
Rotate the connector clockwise until it locks. Be careful not to use excessive force in this
operation.
b) The built-in temperature probe uses a phono jack to connect with the socket on the
meter. Insert the jack into the socket as shown in Figure 5.

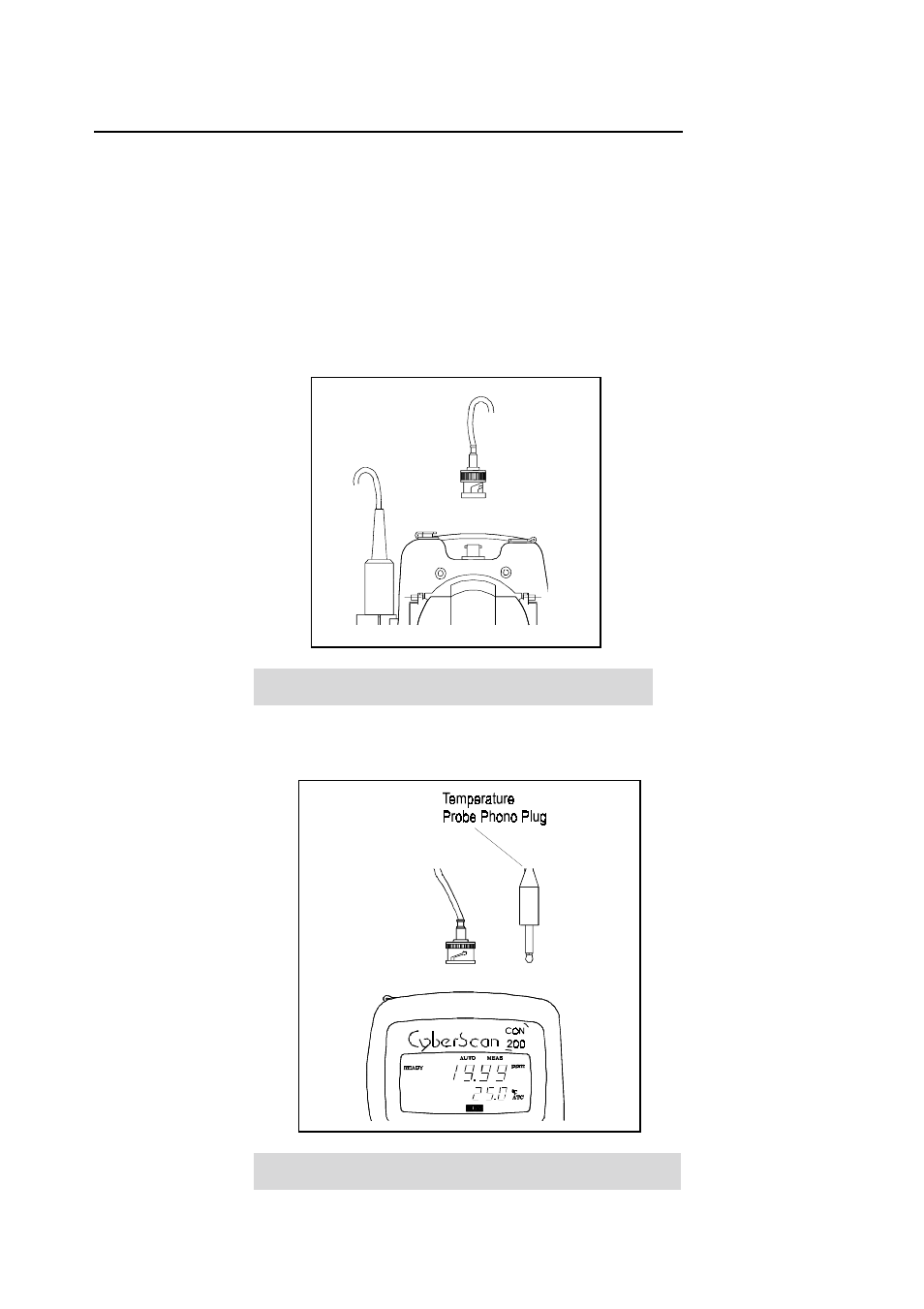

Figure 4: Connecting the Conductivity /TDS probe
Figure 5: Connecting the built-in temperature sensor
