9.4

Capturing And Printing Data Into Computer Using
CyberComm Portable

After matching the Communication Settings between your computer using CyberComm DAS

and the CyberSCan CON 200 meter, you can now capture data into your computer for

analysis and storage purposes.

1.

Ensure the 1-meter RS232 communication cable (supplied with the meter) is connected

between the computer and the CyberScan CON 200 meter’s Com port. Refer to section

3.5 “Connecting the RS232C Cable (Only For CyberScan CON 100)” for connection

procedure.

2.

Switch on the CyberScan CON 200 meter and run the CyberComm DAS software as

indicated in Figures 47 and 48.

3.

Click “ENABLE CONNECTION” button.

4.

With the CyberScan CON 200 meter switched on, press the PRINT key to send data to

the computer. See Figure 52 below.

5.

You can use MODE key on the meter and change to other parameter such as mV or Rel

mV and print data accordingly.

6.

You can also check off the Time Stamp function, so as to print without the Time and Date

information.

7.

You can click Clear Readings button to begin another set of measurements, or click Save

Readings to store readings for future retrieval.

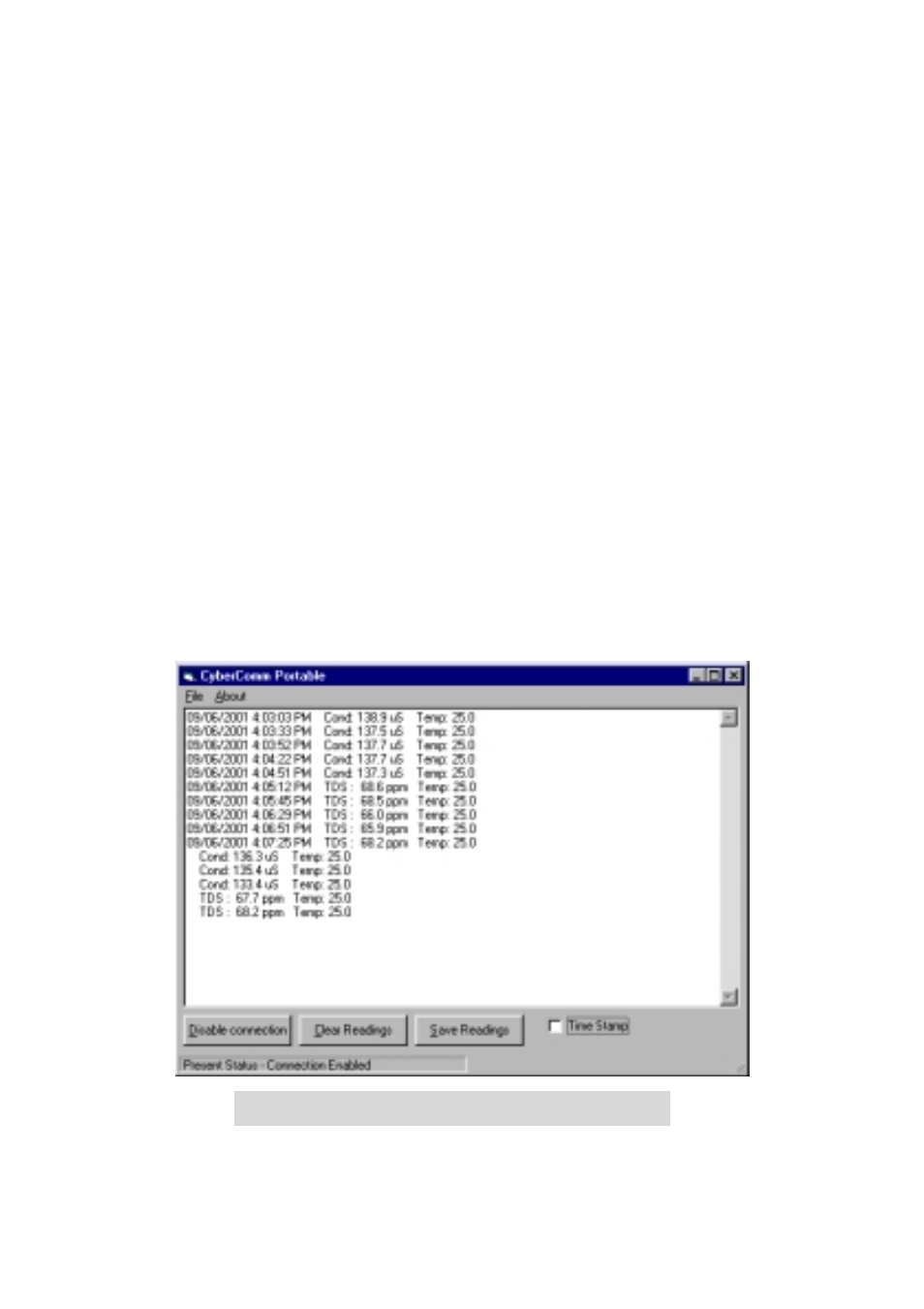

Figure 52: A set of data print in CyberComm Portable DAS
