3.5.1

RS 232C Configuration

The CyberScan CON 200 meter has a 9-pin female RS 232C connector with the following pin-

out:

A one-is-to-one connection can be made with a 9-pin RS 232C port of the computer.

In case the meter output has to be sent to a 25-pin RS 232C connector, the following cable

configuration may be used:

PIN NO

DESCRIPTION

1

-

2

Transmit Data

3

-

4

DSR (Data Set Ready)

5

GND

6

-

7

CTS (Clear to Send)

8

-

9

-

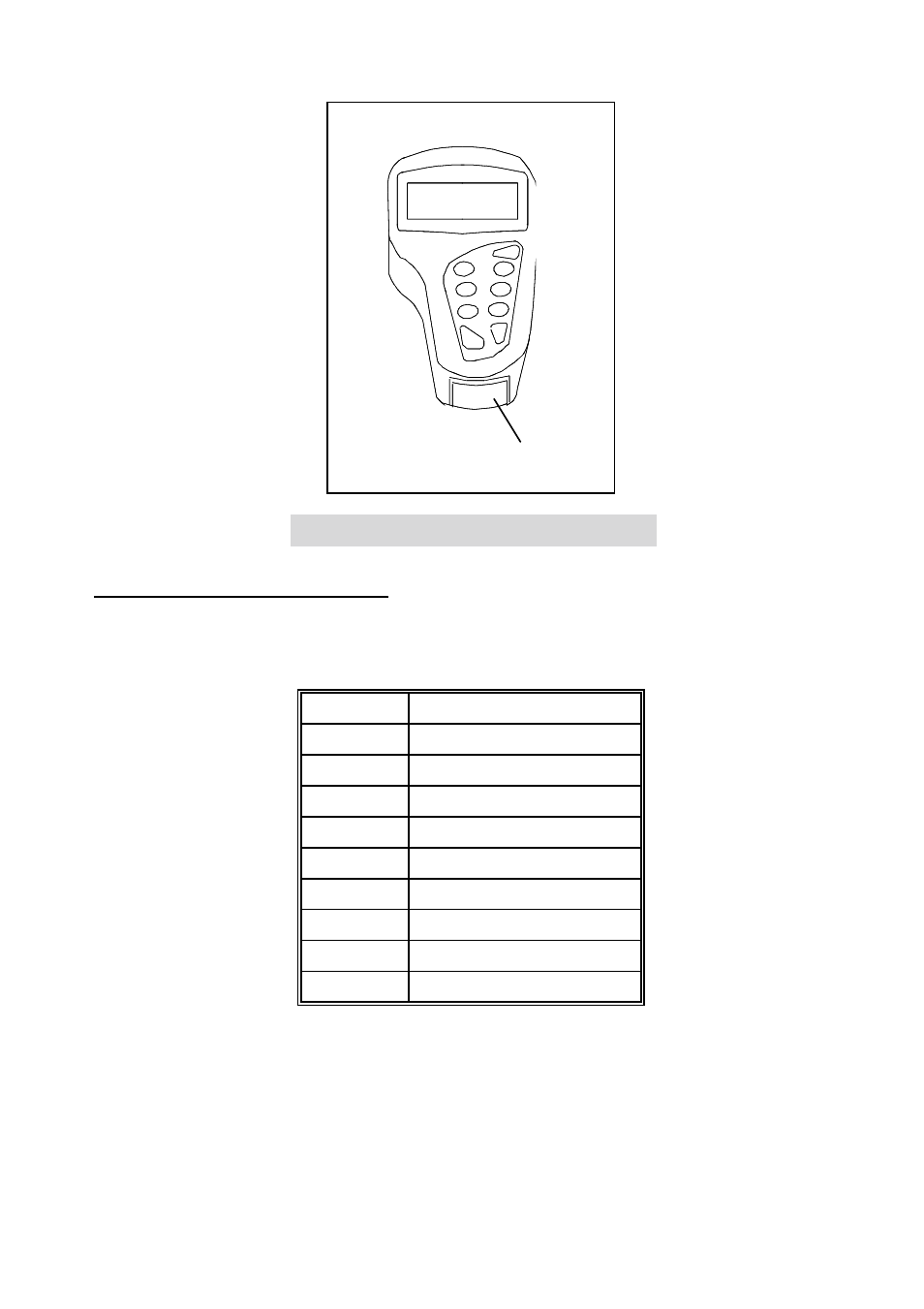

Figure 10: The CyberScan CON 200 RS 232 port

Location of
RS 232 port
