3.3 Display

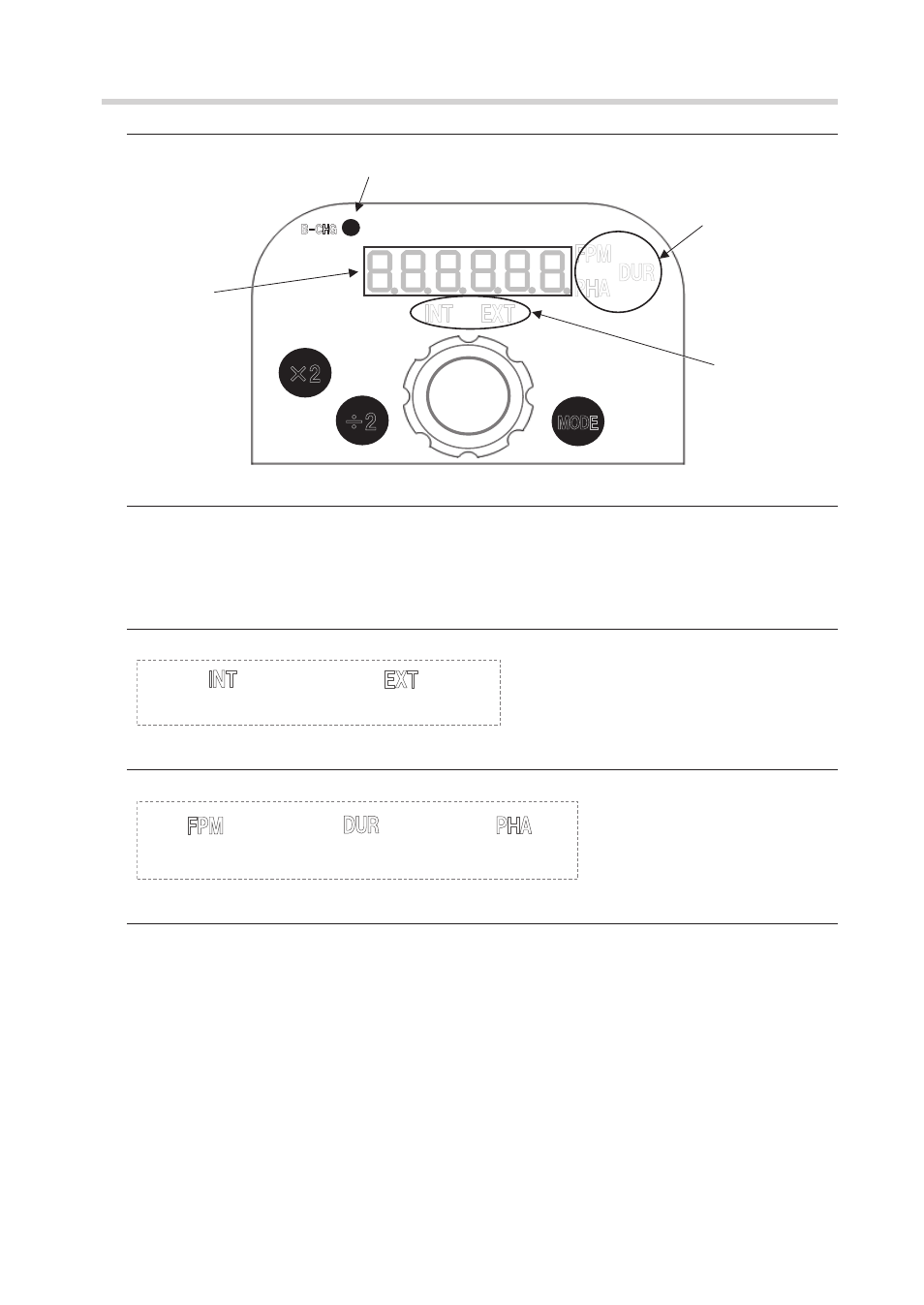

3.3.1 Part names
INT EXT
FPM
DUR
PHA
×2
MEM
MODE
÷2
Numerical display
Mode display
Emission setting display
Charging lamp
B-CHG
3.3.2 Number display
•Indicates the setting value (of the emission count (frequency)) on internal oscillation emission.
•Indicates the external signal frequency while on external synchronous emission.
•Each setting value is indicated in the function setting mode.
* For details about the function setting mode, refer to "4.5 Function mode".
3.3.3 Emission setting display
Indicates the emission setting.
Internal oscillation emission External synchronous emission
INT EXT
3.3.4 Mode display
Indicates the mode on the number display.
Emission count mode Emission duration mode Phase mode
FPM DUR PHA
3.3.5 Charging lamp
Lights up while charging, and goes off when charging is complete.
