16
4.4.2 Emission duration mode
The emission duration (ratio) can be set by 0.1º within the range between 0.1º/ 360º and 3.6º/ 360º
in the emission duration mode (DUR).
(The emission duration setting value shows the strobe emitting time by angle while a rotating
object rotates one revolution (360º).)
A longer emission duration increases the brightness, but a measured object appears to be moving.
Also, a shorter duration time decreases the brightness, but a measured object appears to stand
more still.
Adjust the appropriate emission duration according to your application and conditions and use the
unit.
Press the "MODE" key to switch to the phase mode (PHA).
* When the external trigger pulse has not been entered, [ _ _ _ _ _ _ ] and the emission duration are
indicated alternately.
When the external trigger pulse has been entered, only the emission duration is indicated.

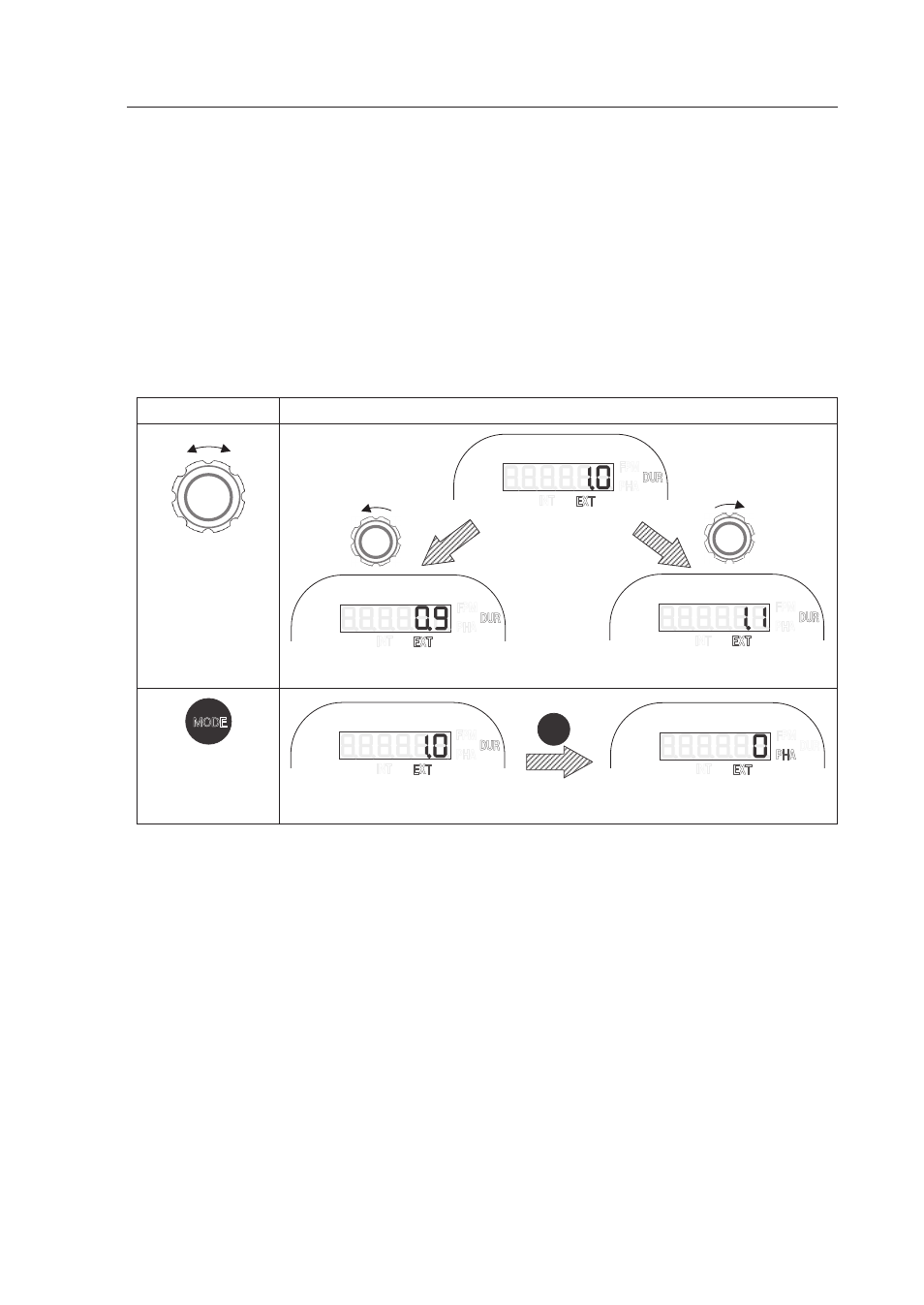

Operation Display
Increase/decrease
the emission
duration
INT EXT
FPM
DUR
PHA
INT EXT
FPM
DUR
PHA
INT EXT
FPM
DUR
PHA
Emission duration: decreases Emission duration: increases
CCW
CW
MODE
Press the key to
switch to the phase
mode
INT EXT
FPM
DUR
PHA
INT EXT
FPM
DUR
PHA
Emission duration mode Phase mode
MODE
