4.4.3 Phase mode
Delay emission can be set within the input signal range between 60 fpm and 10,000 fpm.
In the phase mode (PHA), the phase from the external trigger pulse entry to strobe flash emission
can be changed by 0.1º using the dial within the range between 1º and 359º.
When time is used for setting, a time longer than the emission cycle cannot be set.
Press the "MODE" key to switch to the emission count mode (FPM) of internal oscillation emission.
* When the external trigger pulse has not been entered, [ _ _ _ _ _ _ ] and the phase are indicated
alternately.
When the external trigger pulse has been entered, only the phase is indicated.

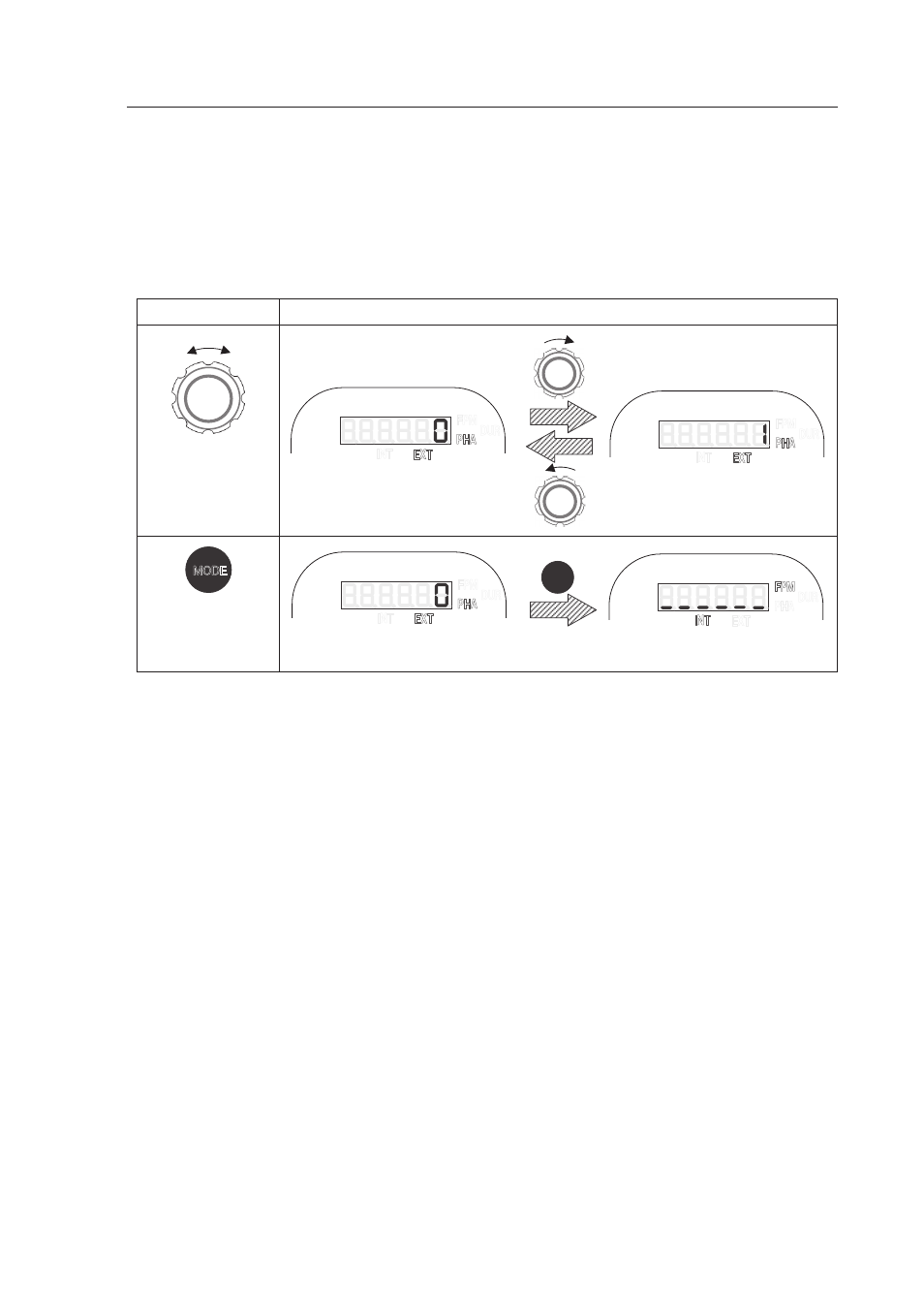

Operation
Display
Increase/decrease
the phase
INT
EXT
FPM
DUR
PHA
INT
EXT
FPM
DUR
PHA
Phase: decreases
Phase: increases
CCW
CW
MODE
Press the key to
switch to the phase
mode
INT
EXT
FPM
DUR
PHA
INT
EXT
FPM
DUR
PHA
Phase mode
Emission count mode
MODE
