19
4.5 Function mode
The following settings in the table can be configured in the function mode.
Setting item Default setting value
Function mode 1 Measurement range setting 120,000
Function mode 2 Trigger edge setting L-H
Function mode 3 Auto emission stop time setting 0

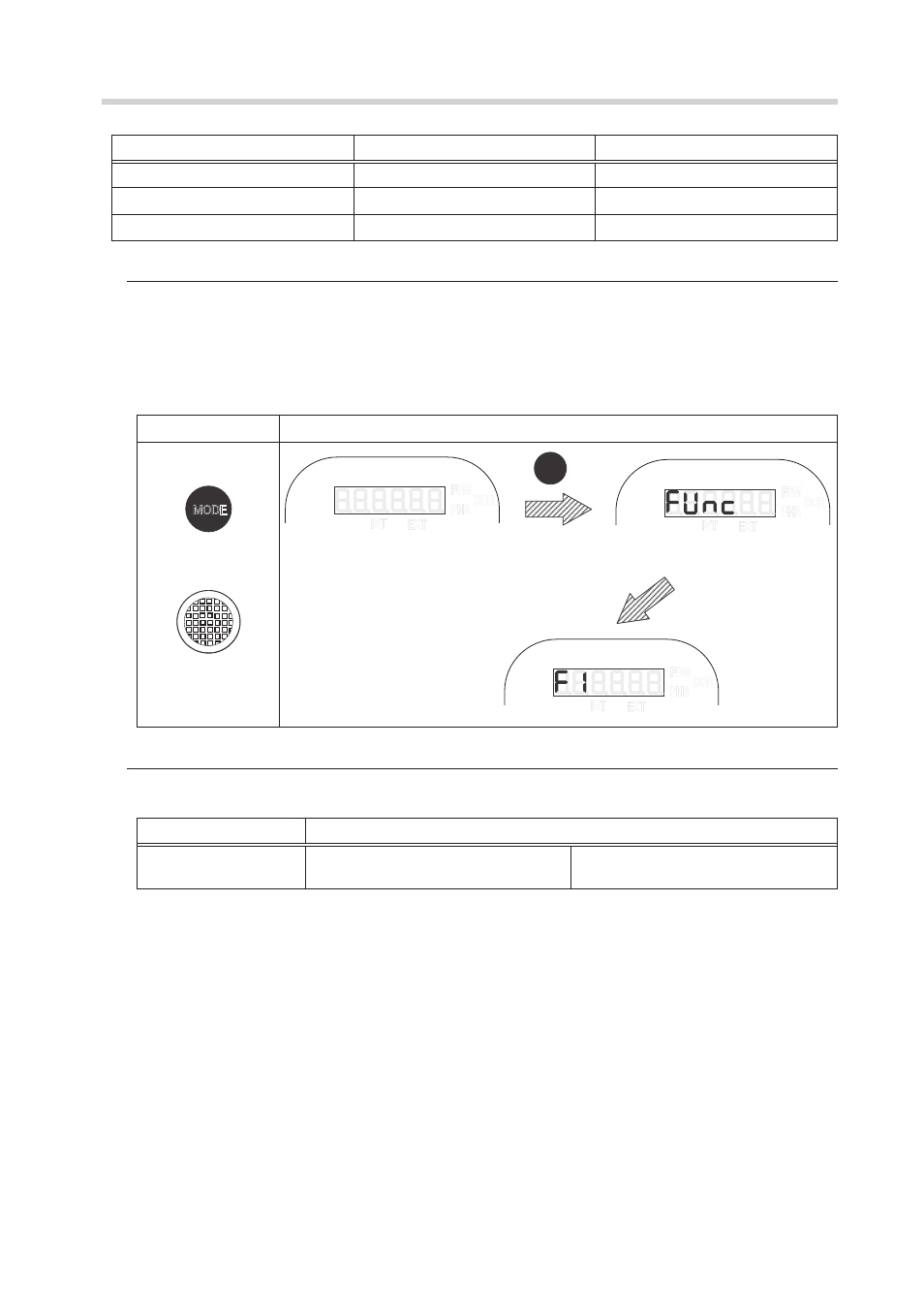

4.5.1 Moving to the function mode
Turn the power ON while pressing the "MODE" key to enter the function mode.
During the function mode, press the "MODE" key to indicate the next setting item.
Press the "POWER" key in function mode 3 to save the specified items collectively and move to the
emission screen.
If the power is turned OFF in the middle of the function mode, the setting value will not be saved in
the memory.
Operation Display
MODE
Press and hold
Press once
INT EXT
FPM
DUR
PHA
INT EXT
FPM
DUR
PHA
Turn the power ON
while pressing the "MODE" key
Go to the function mode
INT EXT
FPM
DUR
PHA
After the above display is
indicated for 2 seconds,
go to function mode 1.
MODE
4.5.2 Measurement range setting (Function mode 1)
This function is used to set the measurement range on internal oscillation emission. The
measurement range has two levels. The indicated contents depend on the measurement unit setting.
Measurement unit *Measurement range
fpm
60 to 12,000
(Available setting range: 60.0 to 12,000.0)
60 to 120,000
(Available setting range: 60.0 to 120,000)
* The emission count saved in the memory will be x10 or 1/10 by changing the measurement range.
Example: Save the emission count (frequency) of 6000 fpm in the range between 60 fpm and 120,000
fpm. After that, the saved value of the emission count (frequency) will be 600.0 fpm by
changing the measurement range to between 60 fpm and 12,000 fpm.
* If the emission count (frequency) setting value is set to the one beyond (or below) the range when
changing the measurement range, the value will be limited to the maximum (or minimum) value within
the range.
Example 1: Save the emission count (frequency) of 60,000 fpm in the range between 60 fpm and
120,000 fpm. After that, the saved value of the emission count (frequency) will be 12,000.0
fpm by changing the measurement range to between 60 fpm and 12,000 fpm.
Example 2: Save the emission count (frequency) of 100 fpm in the range between 60 fpm and 120,000
fpm. After that, the saved value of the emission count (frequency) will be 60.0 fpm by
changing the measurement range to between 60 fpm and 12,000 fpm.
Turn the dial to the CW direction to set the range to between "60 fpm and 12,000 fpm", and to the CCW
direction to set the range to between "60 and 12,000".
Operate the dial to stop the alternate display, and the only the measurement range setting value is indicated.
