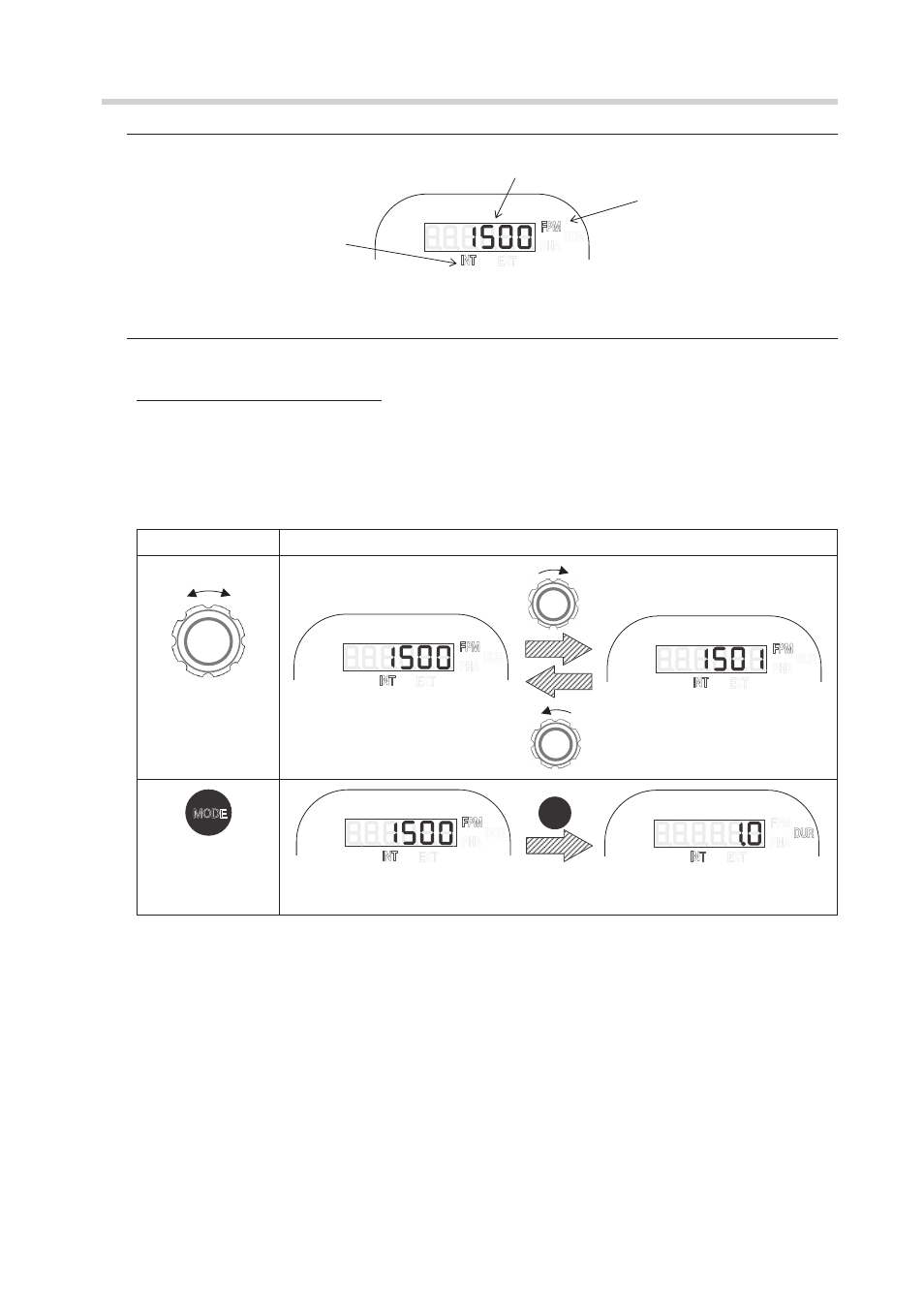

4.3 Internal oscillation emission

4.3.1 Display of internal oscillation emission

INT

EXT

FPM

DUR

PHA

Setting value

Mode display

Display showing internal

oscillation emission

4.3.2 Emission count mode

The emission count (frequency) can be set in the emission count mode (FPM).

4.3.2.1 Emission count setting

Turn the dial in a CW direction to increase the emission count (frequency), and in a CCW direction

to decrease it. (Turn the dial fast to change the setting value greatly, and slowly to change it

slightly.)

The emission count (frequency) you can set depends on the measurement range. For details about

the measurement range, refer to

"4.5.2 Measurement range setting".

Press the "MODE" key to switch to the emission duration mode (DUR).

Operation

Display

Increase/decrease

the emission count

(frequency)

INT

EXT

FPM

DUR

PHA

CW

Decrease

INT

EXT

FPM

DUR

PHA

CCW

Increase

MODE

Press the key to

switch to the emission

duration mode

INT

EXT

FPM

DUR

PHA

INT

EXT

FPM

DUR

PHA

Emission count mode

Emission duration mode

MODE
