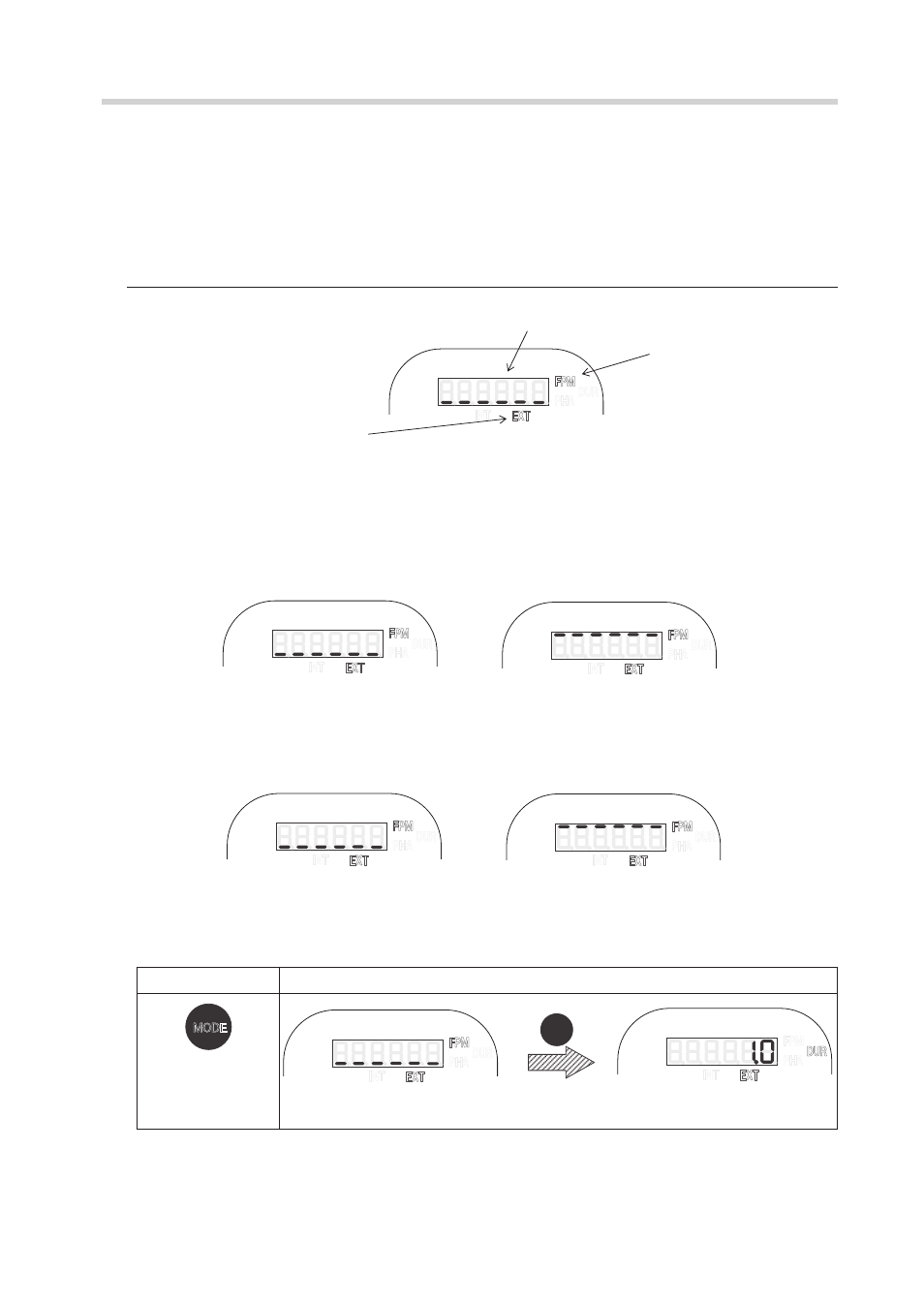

background image

15

4.4 External synchronous emission

External synchronous emission is the function to emit a strobe flash in synchronization with the

external trigger pulse.

•To activate external synchronous emission, refer to

"4.2 Emission setting".

• You can set which edge of the external trigger pulse triggers emission, the rising edge or falling edge.

Refer to

"4.5.3 Trigger edge setting".

• Timing (delay) from the external trigger pulse entry to strobe flash emission can be optionally set

using time and angle.

4.4.1 Emission count mode

Measurement value of the emission count (frequency)

INT

EXT

FPM

DUR

PHA

Indicates the external synchronous emission

Mode display

* The external trigger pulse frequency is measured per cycle and indicated (averaging procedure is

applied in every 200 ms to update the measurement value and indicate the latest one).

If the external trigger pulse cycle is beyond the specifications range, the following letters are indicated.

[Without the delay angle setting]

Measurable range 40 to 35,000

INT

EXT

FPM

DUR

PHA

INT

EXT

FPM

DUR

PHA

When the external input pulse

frequency goes below 40 fpm

When the external input pulse

frequency goes beyond 35,000 fpm

[With the delay angle setting]

Measurable range 60 to 10,000

INT

EXT

FPM

DUR

PHA

INT

EXT

FPM

DUR

PHA

When the external input pulse

frequency goes below 60 fpm

When the external input pulse

frequency goes beyond 10,000 fpm

Press the "MODE" key to switch to the emission duration mode (DUR).

Operation

Display

MODE

Press the key to

switch to the emission

duration mode

INT

EXT

FPM

DUR

PHA

INT

EXT

FPM

DUR

PHA

Emission count mode

Emission duration mode

MODE
