User's Guide

5-2 Cleaning and Maintenance

WINDOW

SUPPORT

TAB

CLIP

MOUNTING

TABS

Removing and Installing the Top Cover

Maintenance and troubleshooting proce-
dures require you to remove the top cover
to access internal printer components.

To remove the top cover, simply lift up the
front edge, as shown in figure 5-1.

To re-install the top cover, perform the
following procedure:

1. Position the platen window between

the back edge of the top cover and the
window support tabs, as shown in
figure 5-2.

2. Press down on the top cover until the

clips snap onto the mounting tabs.

3. Lower the top cover back into place.

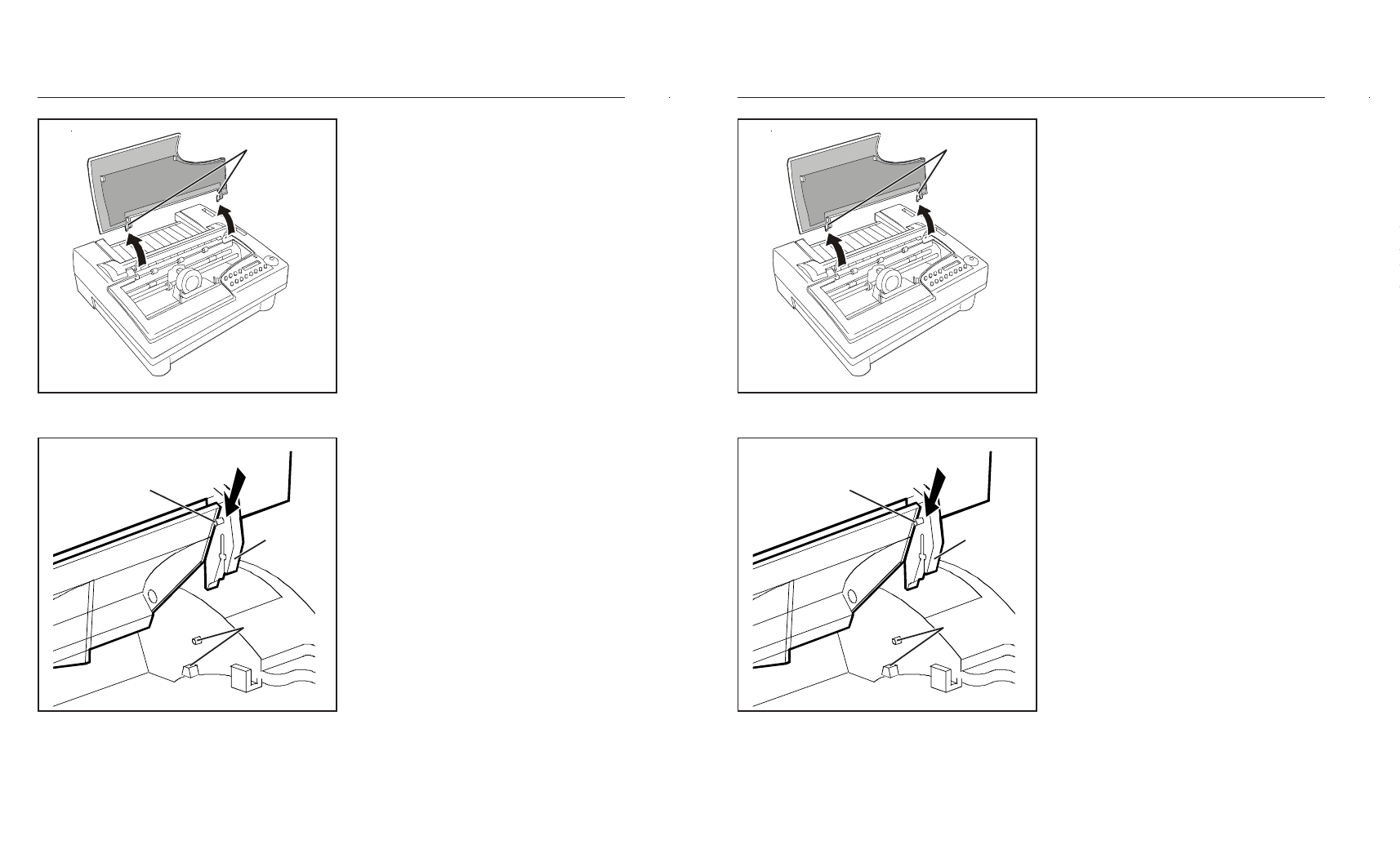

Figure 5-1. Removing the Top Cover

Figure 5-2. Aligning the Platen Window

and Top Cover

CLIPS

User's Guide

5-2 Cleaning and Maintenance

WINDOW

SUPPORT

TAB

CLIP

MOUNTING

TABS

Removing and Installing the Top Cover

Maintenance and troubleshooting proce-
dures require you to remove the top cover
to access internal printer components.

To remove the top cover, simply lift up the
front edge, as shown in figure 5-1.

To re-install the top cover, perform the
following procedure:

1. Position the platen window between

the back edge of the top cover and the
window support tabs, as shown in
figure 5-2.

2. Press down on the top cover until the

clips snap onto the mounting tabs.

3. Lower the top cover back into place.

Figure 5-1. Removing the Top Cover

Figure 5-2. Aligning the Platen Window

and Top Cover

CLIPS
