6
OPERATION
34
UFM 530 HT
www.krohne.com 12/2013 - 4002393201- HB UFM 530 HT R02 en

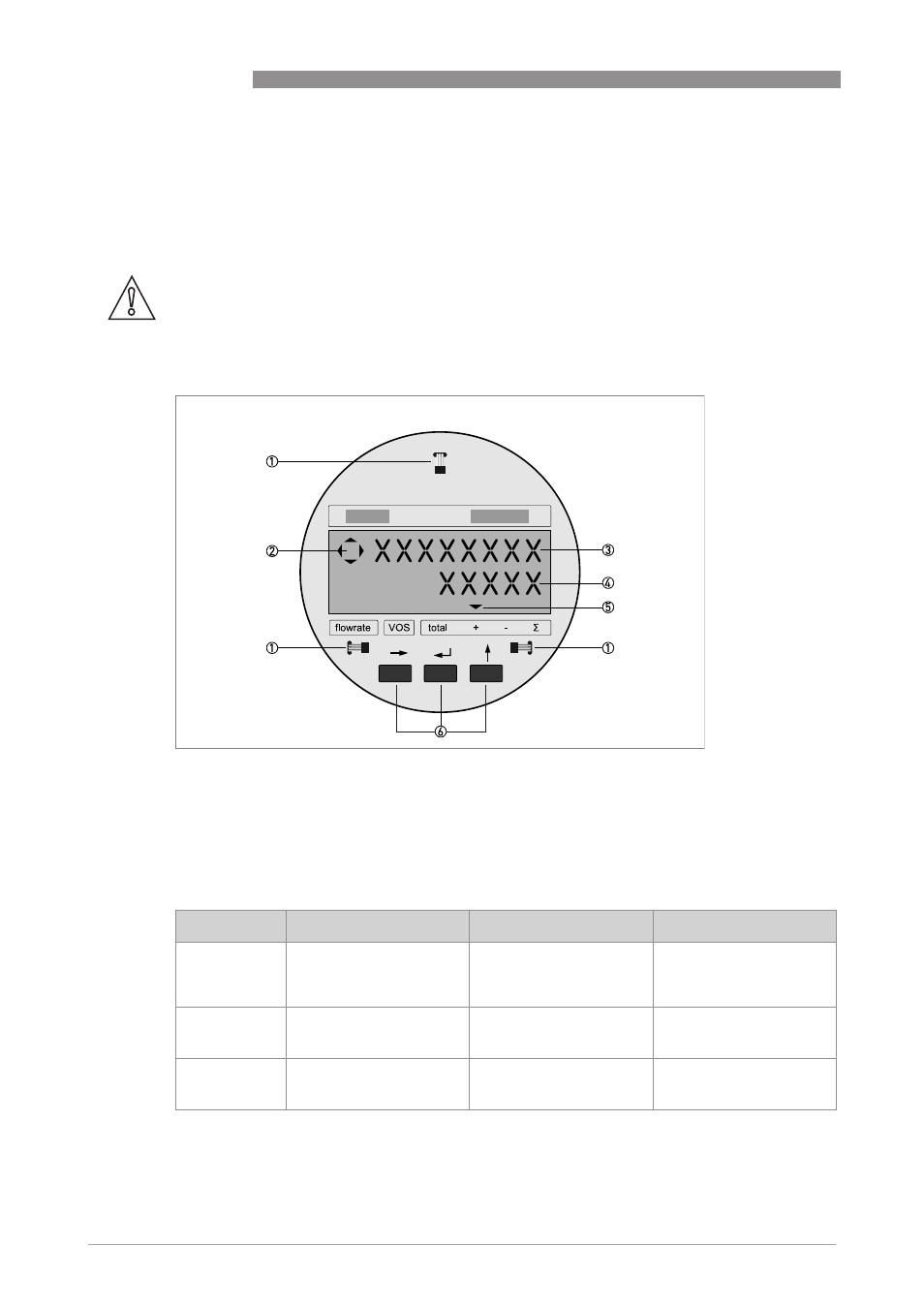

6.1 Signal converter: front panel and operating keys
The front panel and its operating keys are accessible after removing the front cover of the
electronics section (use the special wrench for it). If it is not allowed to open the housing, for
instance in hazardous areas, you can program the converter with the magnetic pin.
Function of operating keys depending on selected mode
CAUTION!
When removing the cover, do not damage the screw thread and the gasket, never allow dirt to
accumulate and make sure that they are well greased using Teflon. A damaged gasket must be
replaced immediately!
1 Magnetic sensors to program the signal converter by means of a hand-held bar magnet (optional) without having to
remove the front cover (left sensor is equivalent to the "→" key, right sensor to "↑" key and sensor at the top to "^" key.
2 Compass needles.
3 Measured value ("E" stands for "Exponent").
4 Unit of measured value.
5 Indication of actual displayed value.
6 Operating keys (→, ^, ↑) for programming the signal converter.
Key / symbol Measuring mode Menu mode Data level
→ Go to the parameter setting
mode. If access CODE 1 is
activated, CODE 1 must be
entered first.
Go to the next, lower menu
level.
Go to the next character or
change line (only when two
lines are displayed).
^ Go to the error/totalizer
reset mode (via CODE 2).
Return to the previous
(higher) menu level or
leave the menu mode.
Accept entered value.
↑ Cycle through measured
values.
Cycle through menu
options within actual menu
level.
Raise active digit.
