3.9.3.2.1 VOLTAGE MODE OPERATION
When the parallel combination is configured to operate in voltage mode (see Figure 3-24), the
master operates in voltage mode, receiving voltage programming commands, and the slave
tracks the output current of the master.

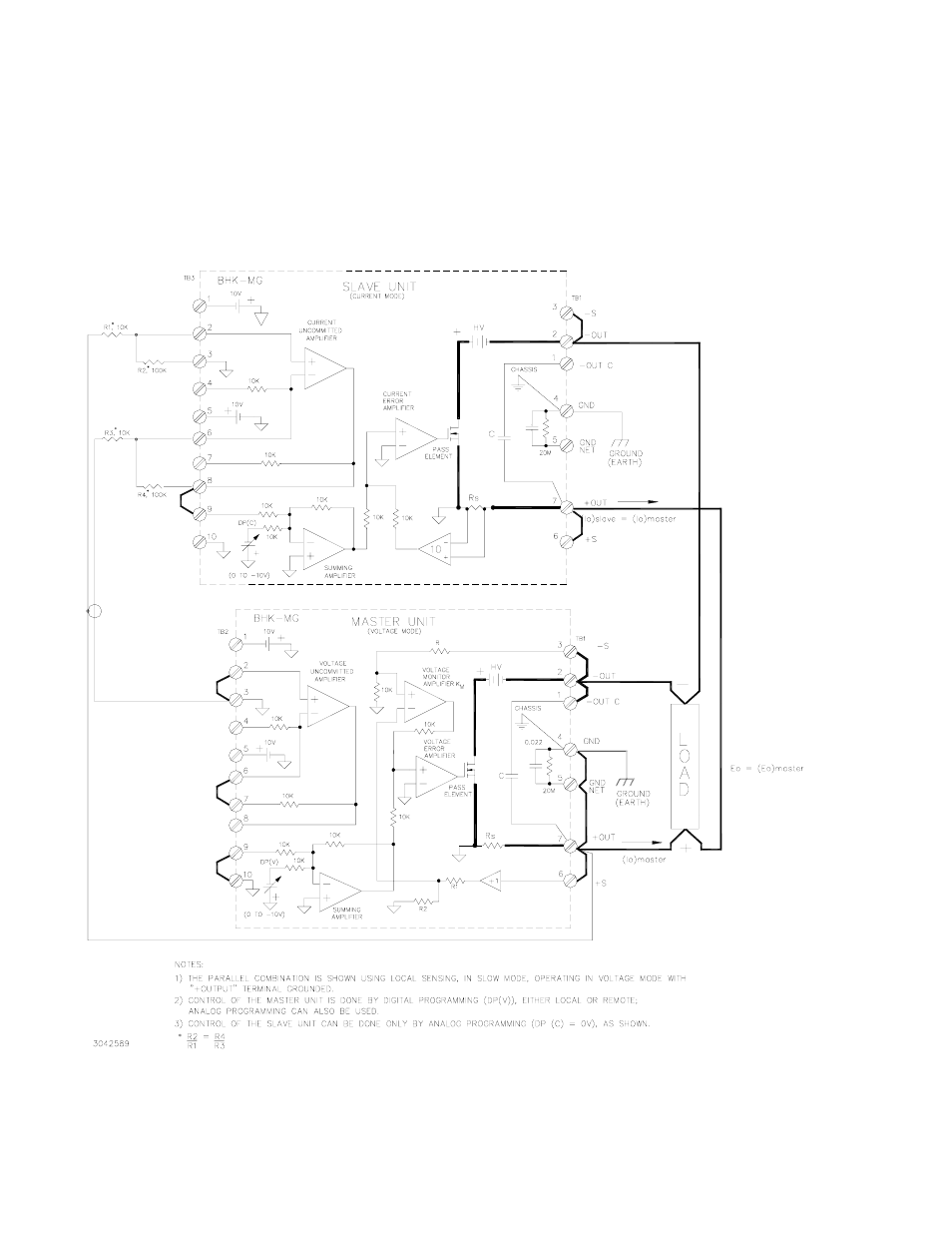

FIGURE 3-24. PARALLEL MASTER-SLAVE (VOLTAGE MODE) CONFIGURATION
