2 DEVICE DESCRIPTION C520/C520X / R520/R520X
09/2010 • 86B5200001 www.inor.com 9
2.2 Identification
The transmitter can be identified by the information in the label, see below.

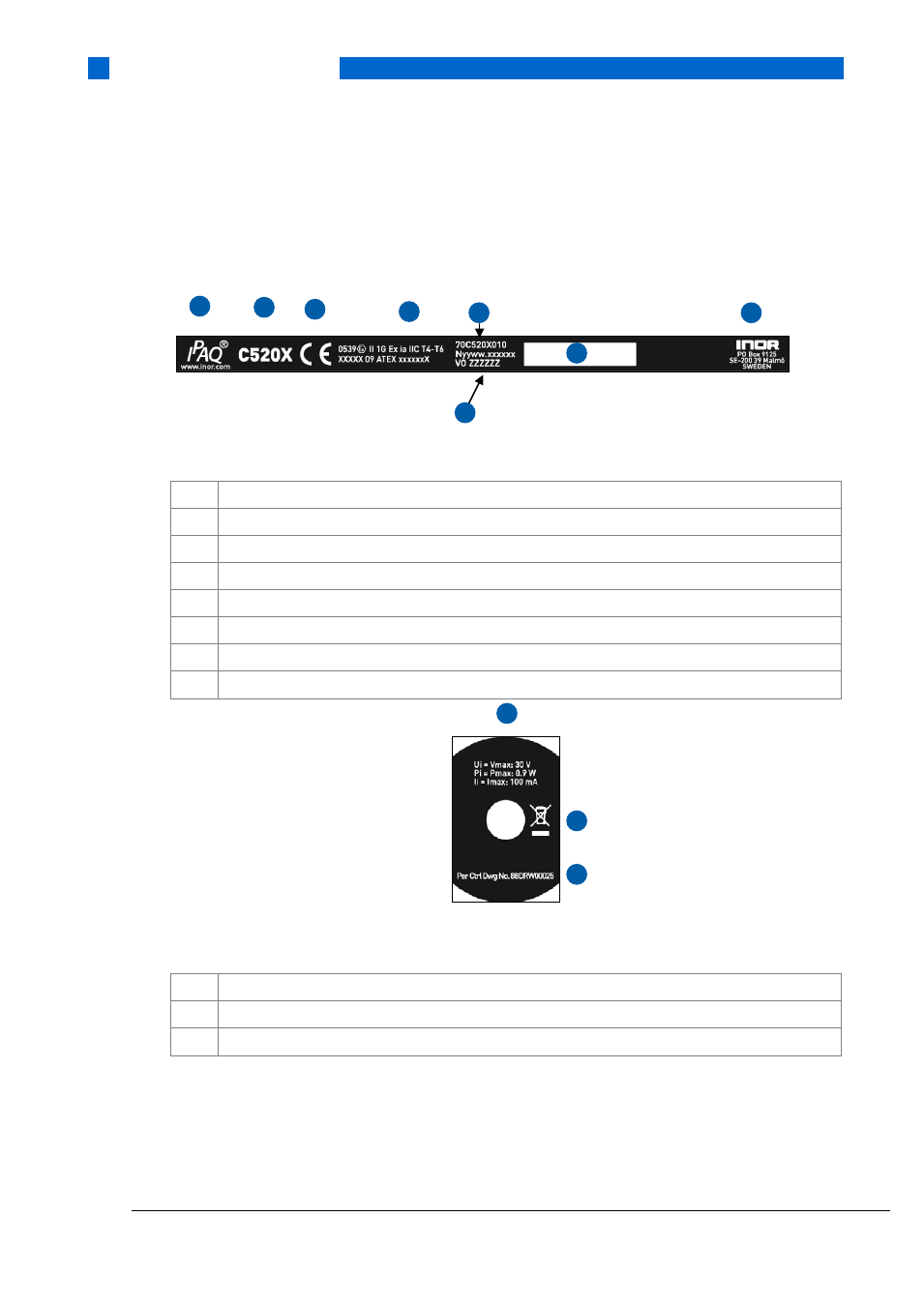

Figure 1: Round label - IPAQ C520X can be used in Category 1, 2 and 3, Zones 0, 1 and 2, Divisions 1 and 2
1 Family name
2 Model name of transmitter
3 CE mark (EC conformity)
4 Technical data (see Chapters 1.3.1, 6.2.3 and 6.2.4 user manual for information)
5 Ordering code (Part No)
6 Serial number and batch number
7 Printable field, sensor configuration
8 Manufacturer of transmitter and address
Figure 2: Bottom label - IPAQ C520X
1 Electrical data for output (see Chapter 6.2.3 user manual for information)
2 An electronic/electric device waste marking (see Chapter 7.2 user manual for information)
3 Control drawing number
1
4 3 2
5
6
7
8
1
3
2
