Page 47: Dimensions, Technical data
6
TECHNICAL DATA
C520/C520X / R520/R520X
09/2010 • 86B5200001
www.inor.com
47
6.4.2 Output load diagram

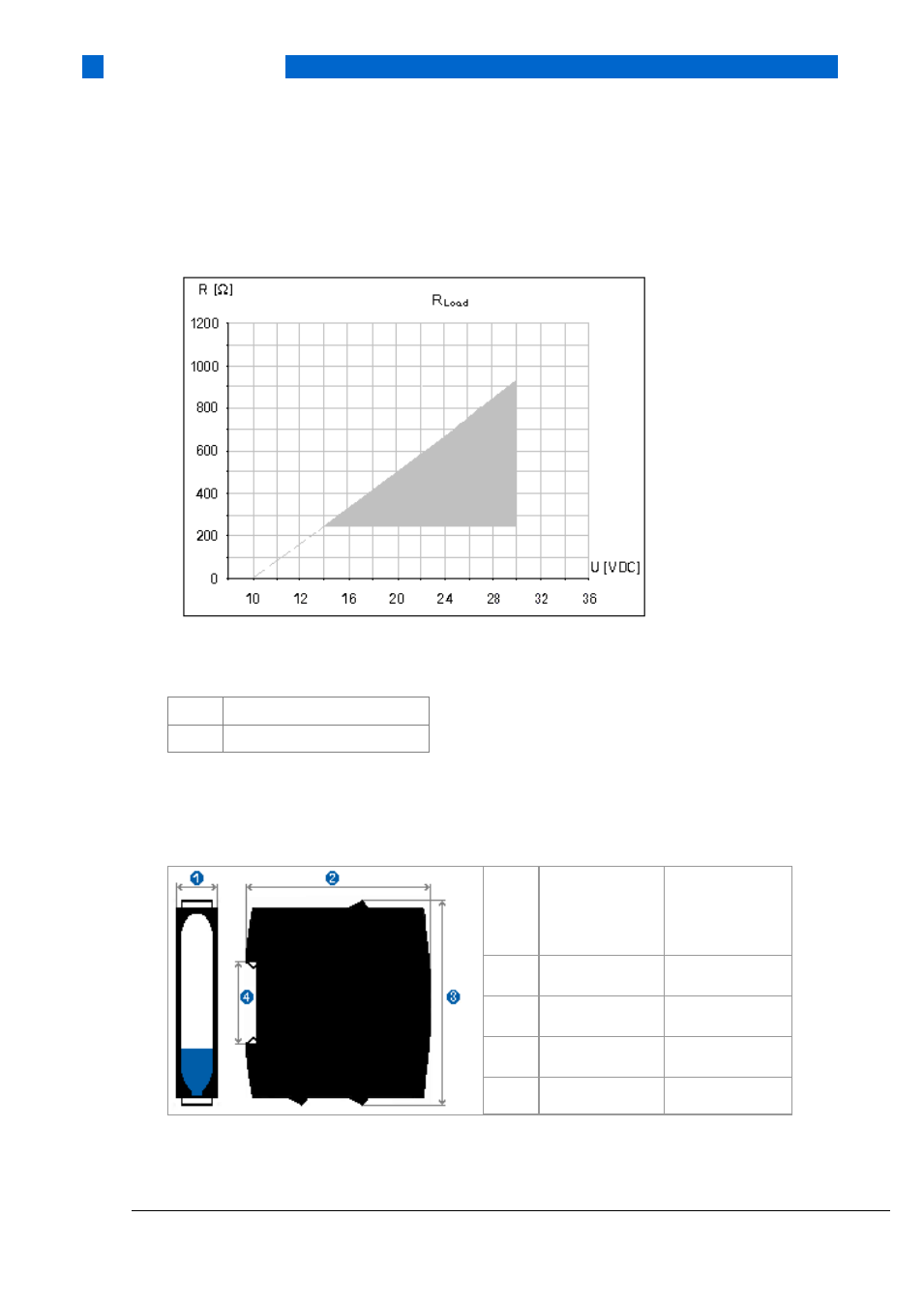

Figure 25: R520X output load diagram
Formula for the maximum permissible output load: R520X permissible R
Load
(
Ω) = (U-10)/0.022
R
Total output load [Ω]
U
Power supply [VDC]
6.4.3 Dimensions
Dimension [mm]
Dimension [inch]
1
17.5
0.69
2
81.3
3.2
3
83
3.27
4
35
1.38
Figure 26: R520X dimensions
