Page 41: Dimensions, Technical data
6
TECHNICAL DATA
C520/C520X / R520/R520X
09/2010 • 86B5200001
www.inor.com
41

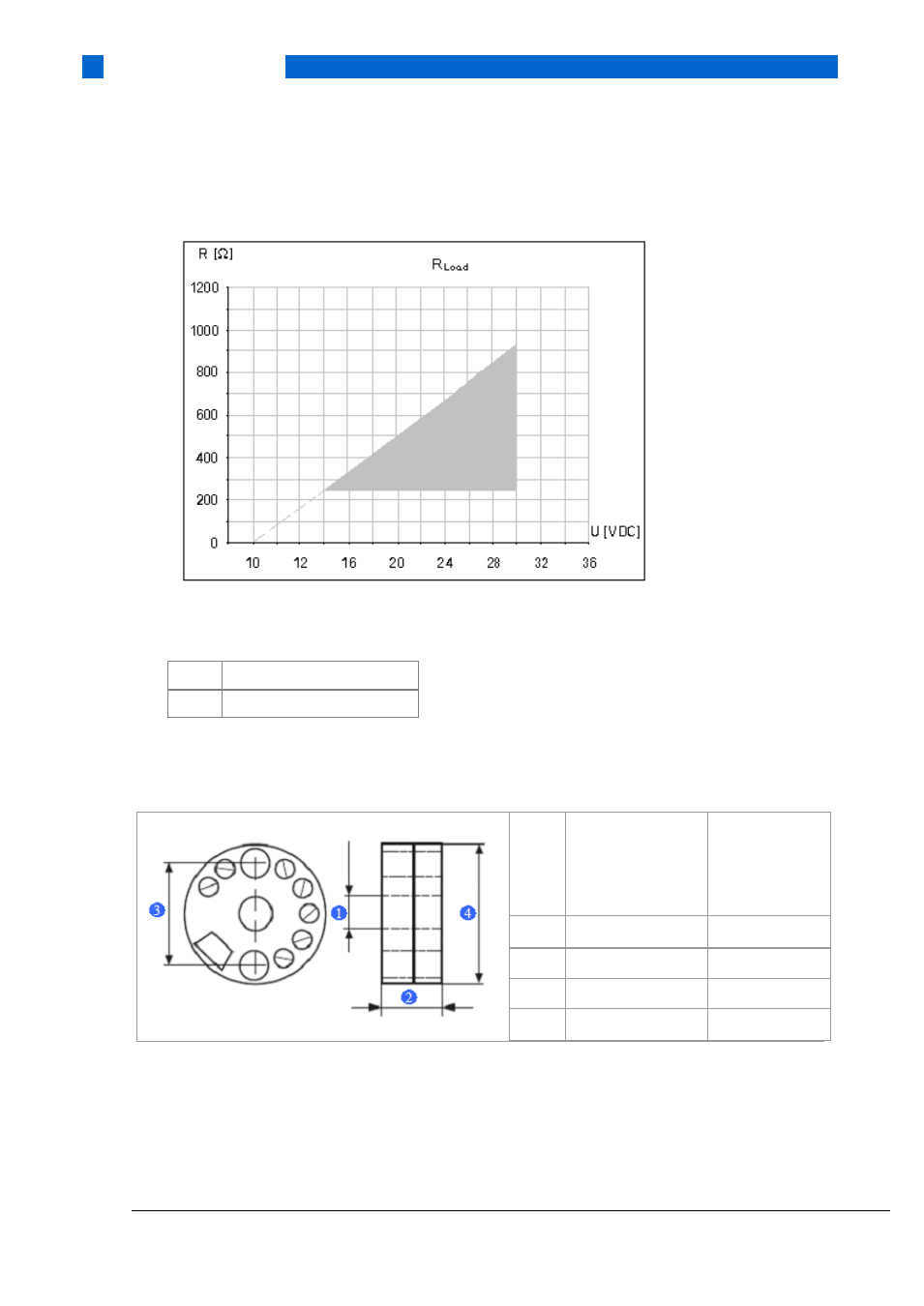

6.2.2 Output load diagram
Figure 21: C520X output load diagram
Formula for the maximum permissible output load: C520X permissible R
Load
(
Ω) = (U-10)/0.022
R
Load
Total output load [Ω]
U
Power supply [VDC]
6.2.3 Dimensions
Dimension [mm]
Dimension [inch]
1
7.0
0.28
2
23
0.92
3
33
1.30
4
44.5
1.75
Figure 22: C 520X dimensions
