INOR IPAQ C201 GB - Manual

MEASURE OF SUCCESS
USER INSTRUCTIONS
Analog PC-programmable
2-wire Transmitter
for Pt100 Input
The user instruction must be read prior to adjustment and/or installation.
All information subject to change without notice.
86B
C201001 2010-11

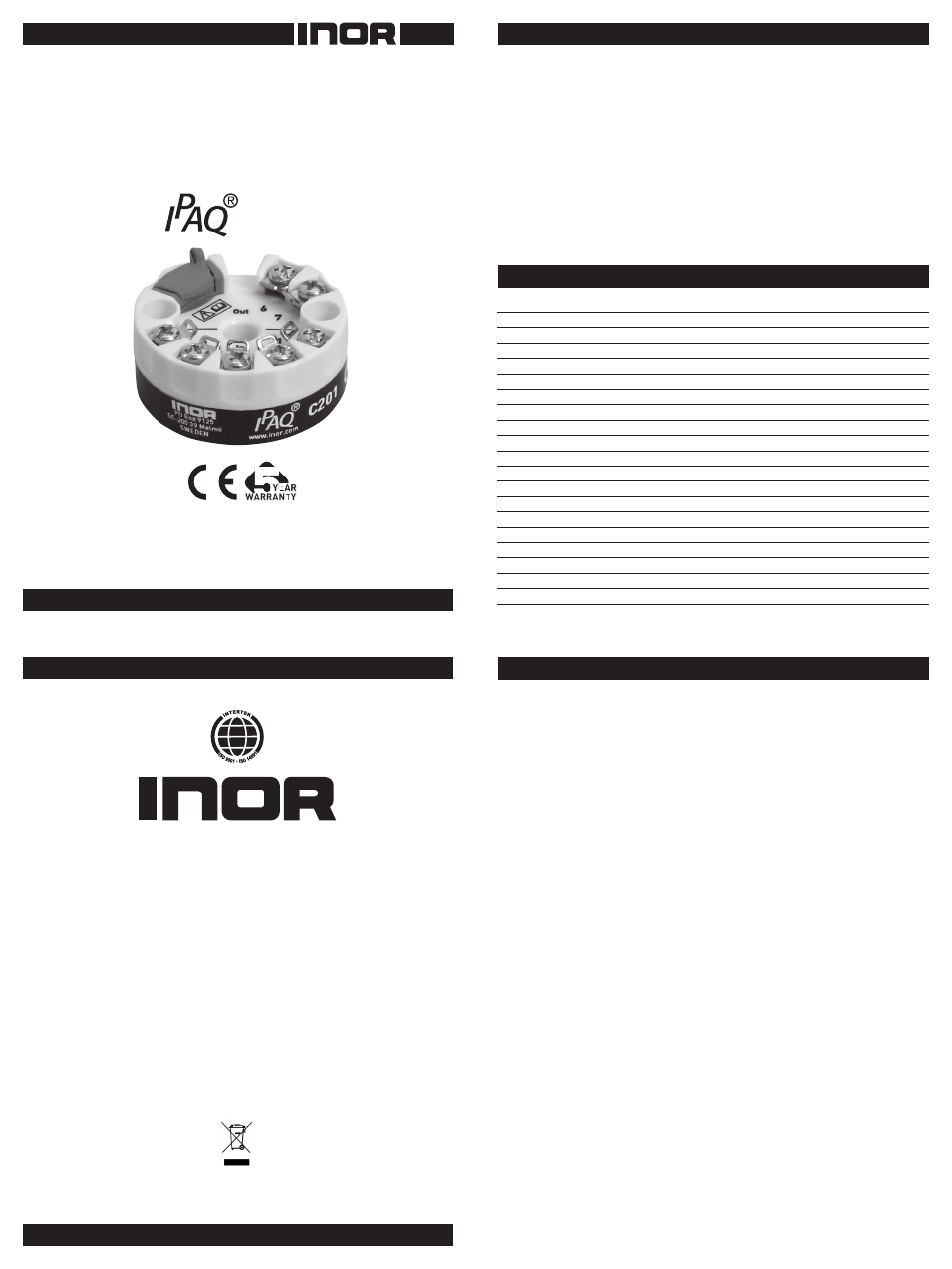

GENERAL INFORMATION
IPAQ C201 is an analog, non-isolated, easy-to-use 2-wire
temperature transmitter for Pt100 input intended to be used in
industrial environment.
The transmitter is configured from a PC via a USB port, connected
via the INOR USB Interface, by using the ConSoft program.
Calibration of the transmitter after the PC configuration is not
necessary.
ConSoft is compatible with Windows 2000 (SP3), Windows XP and
Windows Vista (32-bit).
All necessary hardware and software for configuration are included
in the ICON Configuration Kit, 70CFGUS001.
C201
MEASURE OF SUCCESS
This product should not be mixed with other kind of scrap, after usage.
It should be handled as an electronic/electric device.
www.inor.com, www.inor.se
DATA (shortform)
Input Pt100 3-wire connection
Pt100 ( α =0.00385) -50 to +850 °C / -58 to +1562 °F
Pt100 ( α =0.003902) -50 to +850 °C / -58 to +1562 °F
Pt100 ( α =0.003916) -50 to +850 °C / -58 to +1562 °F
Sensor monitoring
Sensor break
Upscale (≥21.0 mA) or downscale (≤3.6 mA)
Sensor short-circuit Fixed downscale (≤3.6 mA)
Adjustments - Zero -50, -25, 0, +25, +50 °C / -58, -13, +32, +77, +122 °F
Adjustments - Minimum span 20 °C / 36 °F
Output
4-20 mA, temperature linear
Response time < 50 ms
Ambient temperature
Operation -40 to +85 °C / -40 to +185 °F
Storage -50 to +85 °C / -58 to +185 °F
Galvanic isolation No
Power supply 8.5 to 32 VDC
Accuracy 1) Max. of ±0.1 °C / ±0.2 °F or ±0.1 % of span
Connection head DIN B or larger
1) Includes calibration and linearity errors
CONFIGURATION
Guidelines for ConSoft version 1.1.0.2 or higher.
Before making a configuration of IPAQ C201 you need to do
following:
1. Install the drivers for the INOR USB Interface.
2. Install the PC configuration software ConSoft in your PC.
Please refer to “Installation Guide for ICON”, 86BCONF004, for
detailed installation instructions. All software and guides are included
in the ICON Configuration Kit, 70CFGUS001, and can also be
downloaded from the web site www.inor.com.
Configuration procedure:
The help file in ConSoft contains complete information about the
configuration procedure. Here is a short-form guide:
1. Connect the IPAQ C201 to the PC via the USB Interface.
Configuration can be performed with or without connected power
supply.
2. In ConSoft, click on the upper left “Read from transmitter”
button. The software will automatically recognize the
connected transmitter and open the “C201/R201” configuration
window.
3. In the “C201/R201” configuration window you can enter:
a. Pt100 type (3 different standards)
b. Measuring range in three different engineering units
c. Upscale or downscale action at sensor break
d. Compensation for known sensor errors
e. TAG-number
4. The selected configuration is downloaded to the transmitter by
clicking the button “Transfer to transmitter”. When the transfer
is complete, the transmitter begins using the new parameters
directly.
