5.3.1 Configuration of the 520 series transmitters with ConSoft
ConSoft is a PC based graphical user interface for configuration of all INOR transmitters. The
PC configuration software ConSoft is used for configuration, display and documentation.
The current software versions of ConSoft and the USB Interface are available for downloading
on our website www.inor.com.

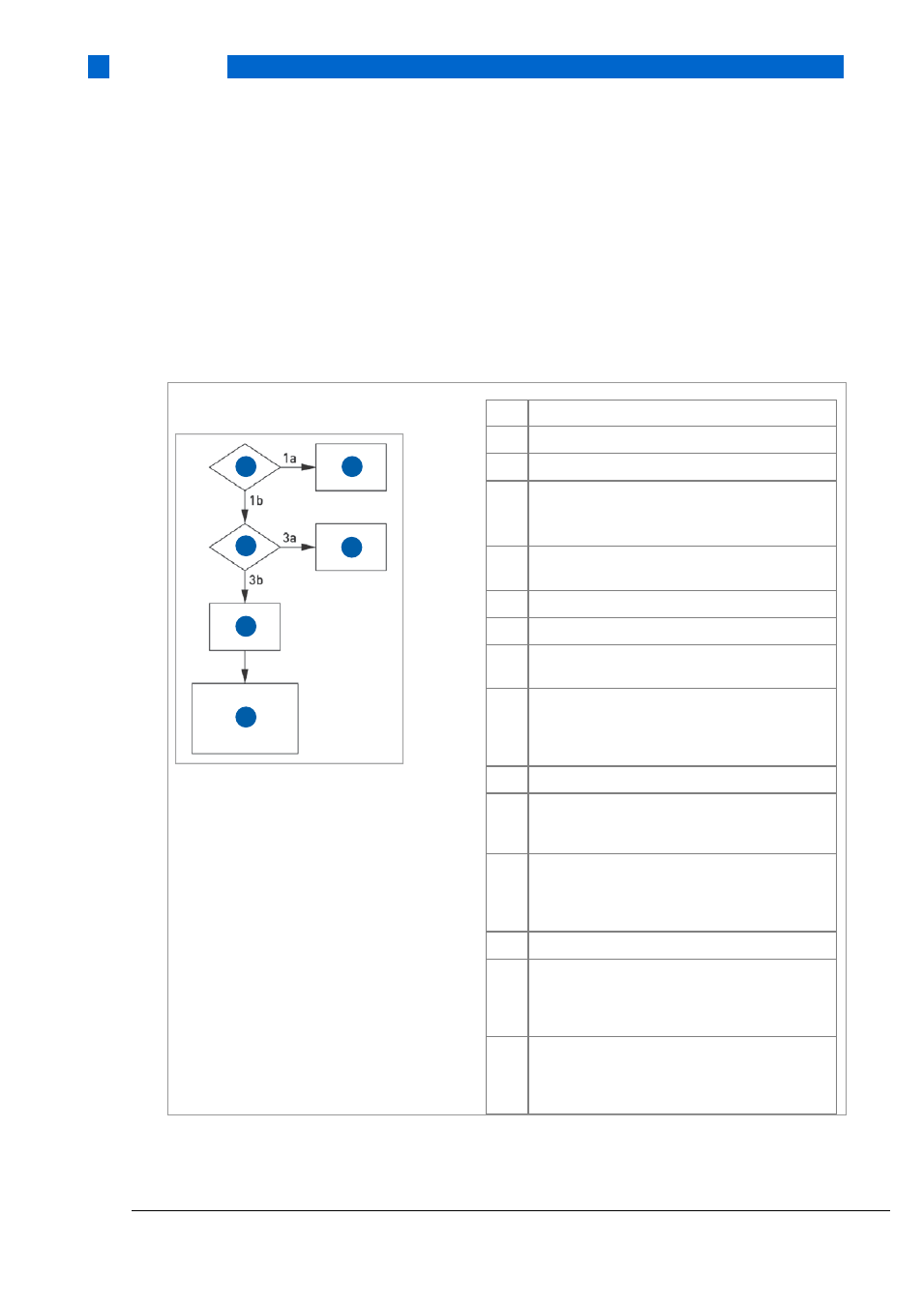

To upgrade your USB Interface software to the latest version, use the following flow chart.
1 Is the USB interface version 1.2.00 or higher?
1a No
1b Yes
2
No possibility of updating for hardware version
below 1.2.00.
Replace the USB interface with newer version.
3
Is ConSoft version 1.2.0.0 or higher installed
on your PC?
3a No
3b Yes
4
Download the current ConSoft version from
our website and install it on your PC.
5
Download the current software file
[USB_x.y.zz.hex] for the USB interface from
our website to your PC either on your desktop
or in a folder made for this purpose.
6.1 Start ConSoft
6.2
Connect the USB interface to the PC. Note that
no other device should be connected during
updating of the USB interface.
6.3
Click on Options/Update USB Interface/Load
file (type the path for the software file
downloaded on your desktop or in a separate
folder).
6.4 Wait until "File OK" message is on the screen.
6.5
Click on "Start update". A message
"Programming!" and a green status indicator
show up on the screen. The update will take
about one minute.
6.6
Wait until "Ready USB Interface" message is
displayed on the screen. Close the update
window. The USB interface is now ready for
use.
1 2
3 4
5
6
