SOLAR300 - SOLAR300N
EN - 169
7.10. RECORDING PV SYST. WITH SINGLE/MULTI MPPT – SINGLE/THREE PHASE AC
The instrument SOLAR300N, used together with remote units SOLAR-02 and MPP300
(optional), allows carrying out long recordings on PV systems characterized by 1 or more PV
fields (with the same direction and inclination), each connected to an MPPT of the inverter (see
§ 10.3) and single-phase or three-phase output. The remote unit MPP300 is capable of
communicating with SOLAR300N via USB cable (to manage data synchronization and
download) and with the remote unit SOLAR-02 (for recording irradiation and temperature
values) via a wireless radiofrequency (RF) connection, which is active up to a maximum
distance of 1m between the units.

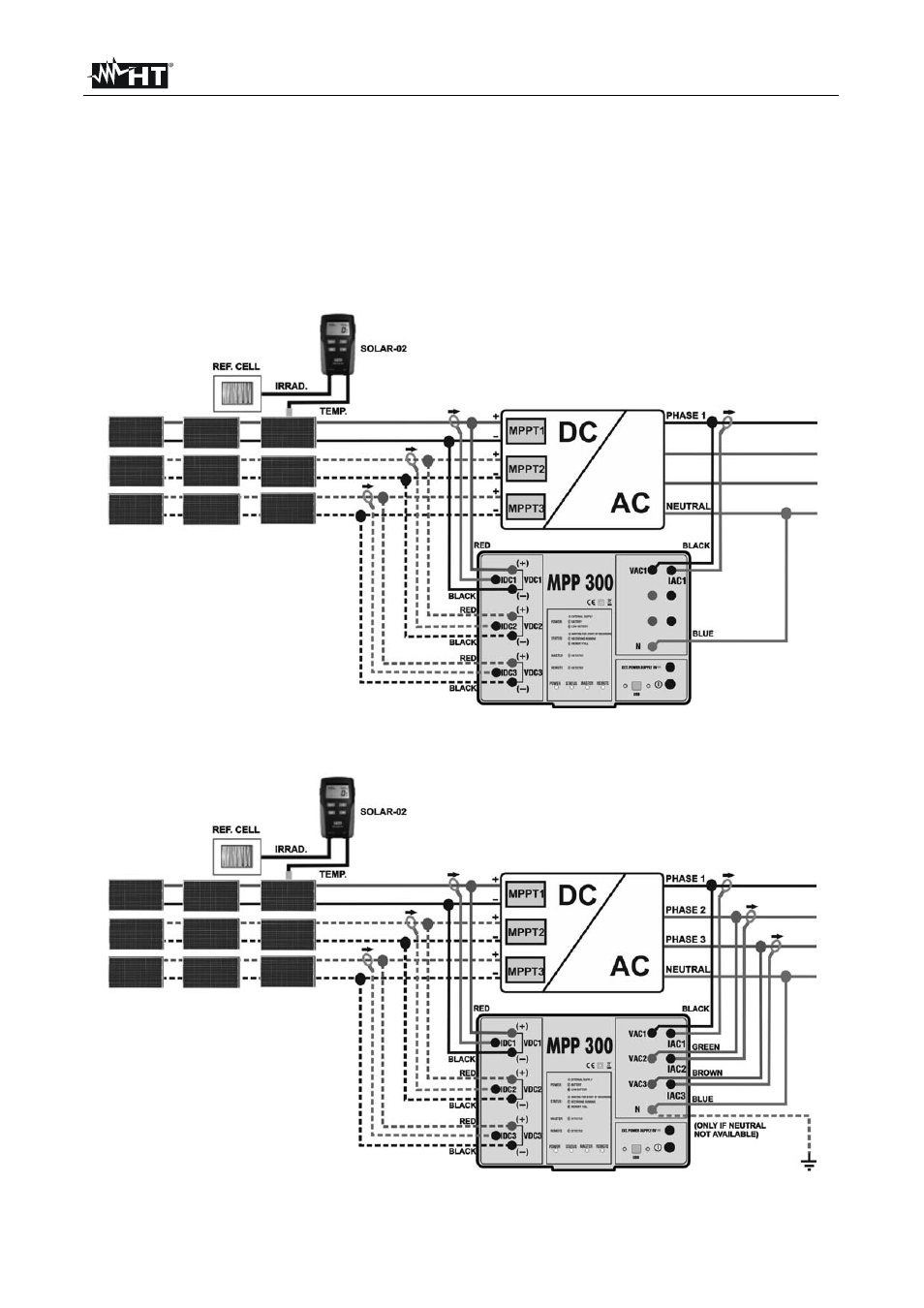

Fig. 252: Connection of MPP300 for testing a single-phase PV system
Fig. 253: Connection of MPP300 for testing a three-phase PV system
