SOLAR300 - SOLAR300N
EN - 160
32. To stop testing, press the F1 key on the instrument
SOLAR300N and confirm with ENTER that you want to
stop recording.
33.
The display of SOLAR300N will show various
messages indicating the different phases of data
transfer to the main unit.
34.
After the automatic phase of data transfer, the
instrument:
Do not show any results if do not exist on the PV
installation a “stable irradiance” condition more
than the minimum irradiance threshold (see §
5.3.3.3)
Display the best performance values if during the
recording, the Irradiance values reached the “stable”
condition and its values were higher than the
minimum irradiance threshold (see § 5.3.3.3)
35. Press SAVE to save the obtained results. Pressing the
key will display the virtual keyboard for adding possible
comments. Further pressing the SAVE key will archive
the measure and the added comments and will go back
to the initial screen for a new measurement.

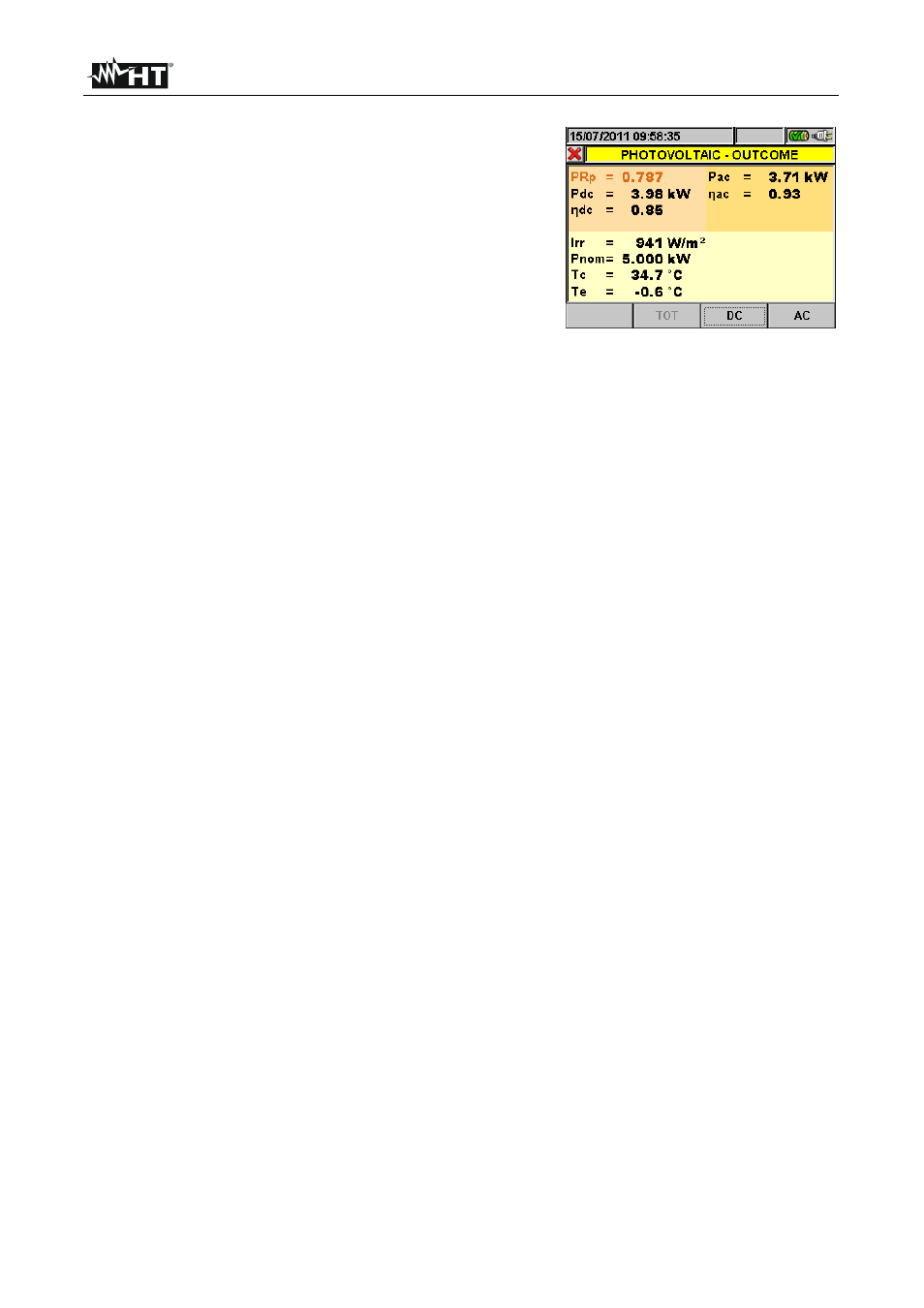

E x a m p l e o f a r e s u l t c o m b i n e d
w i t h M P P 3 0 0
