SOLAR300 - SOLAR300N
EN - 141
The following keys are active on this page:
 The
F1 key (or the PAG item on the display) advances to the following page
of saved values.
 The
ESC key (or the smart icon on the display) to exit the function and go
back to the “Recording analysis” page (Fig. 181).
In this page, the following symbols are used:
V1N
Phase L1 - Neutral Voltage.
VNPE Neutral - PE Voltage.
Freq Frequency.
I1
Phase L1 current.
Patt1 Phase L1 active power.
Preatt1 Phase L1 reactive power.
Papp1
Phase L1 apparent power.
Pf1 Phase L1 power factor.
CosPhi1 Cosine of the phase angle between the
Phase L1 voltage and current
fundamentals.
CosPhi represents the theoretical limit value which
can be reached by the Power factor if all harmonics
are eliminated from the electrical system. For
dimensioning a power factor correction system,
reference is usually made to the CosPhi parameter
value.

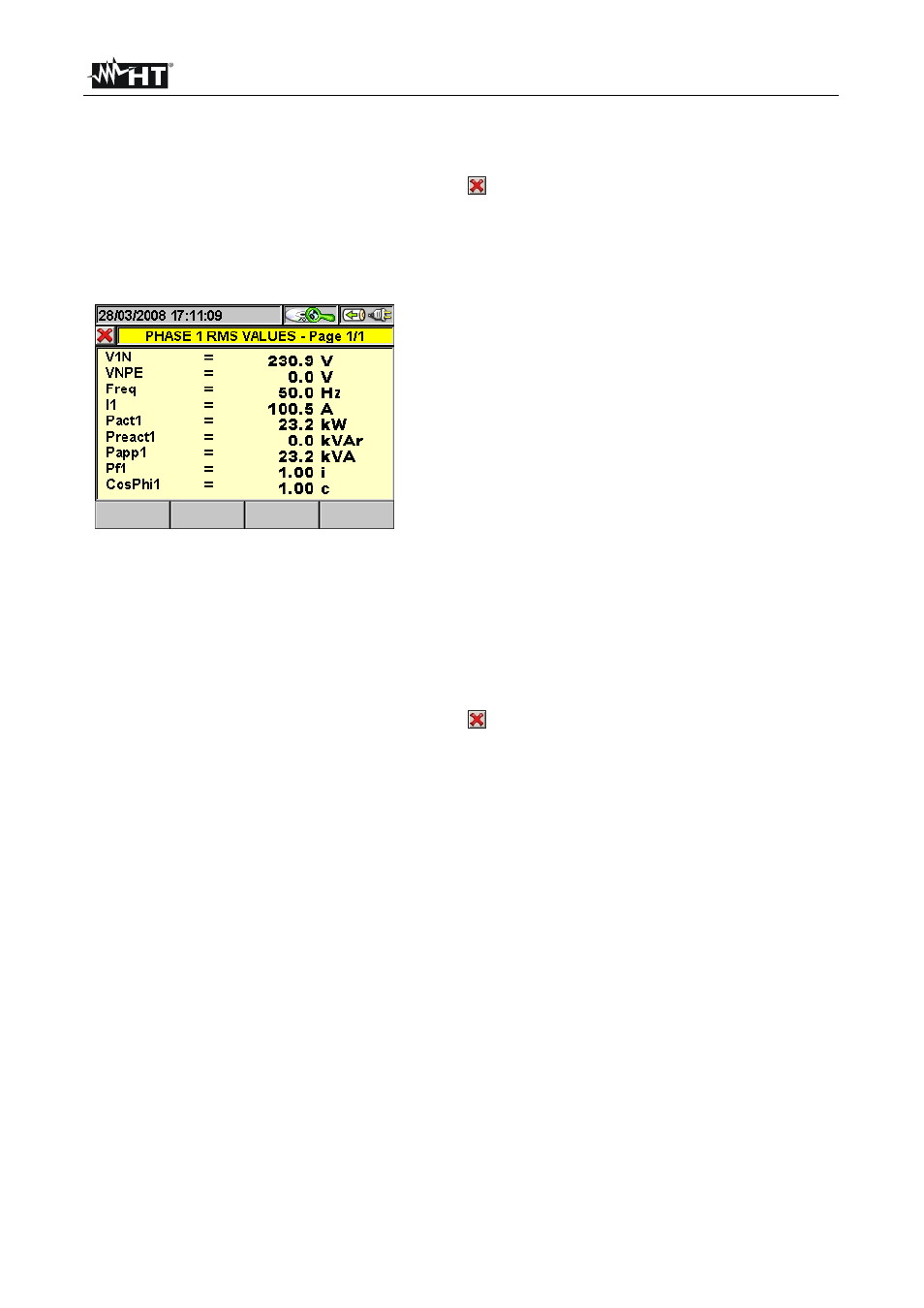

Fig. 231: Page 1/1 of numeric values for single-phase system
The following keys are active on this page:
 The
ESC key (or the smart icon on the display) to exit the function and go
back to the “Recording analysis” page (Fig. 181).
