7.8. RECORDING IN A PV-3 SYSTEM WITH REMOTE UNIT SOLAR-01
CAUTION
 The maximum voltage between inputs D1, D2, A1, A2 and A3 is 1000V /
CAT IV 600V to earth. Do not measure voltages exceeding the limits
indicated in this manual. If these voltage limit values are exceeded, the user
may be exposed to electrical shocks and the instrument could get damaged
 Where possible, disconnect the connecting points of the instrument, before
connecting it, by means of disconnecting switches S1 and S2
 If there is NO interest in recording the data relevant to the environmental
quantities (temperature and irradiation), it is NOT necessary to use and
connect the unit SOLAR-01 to main unit

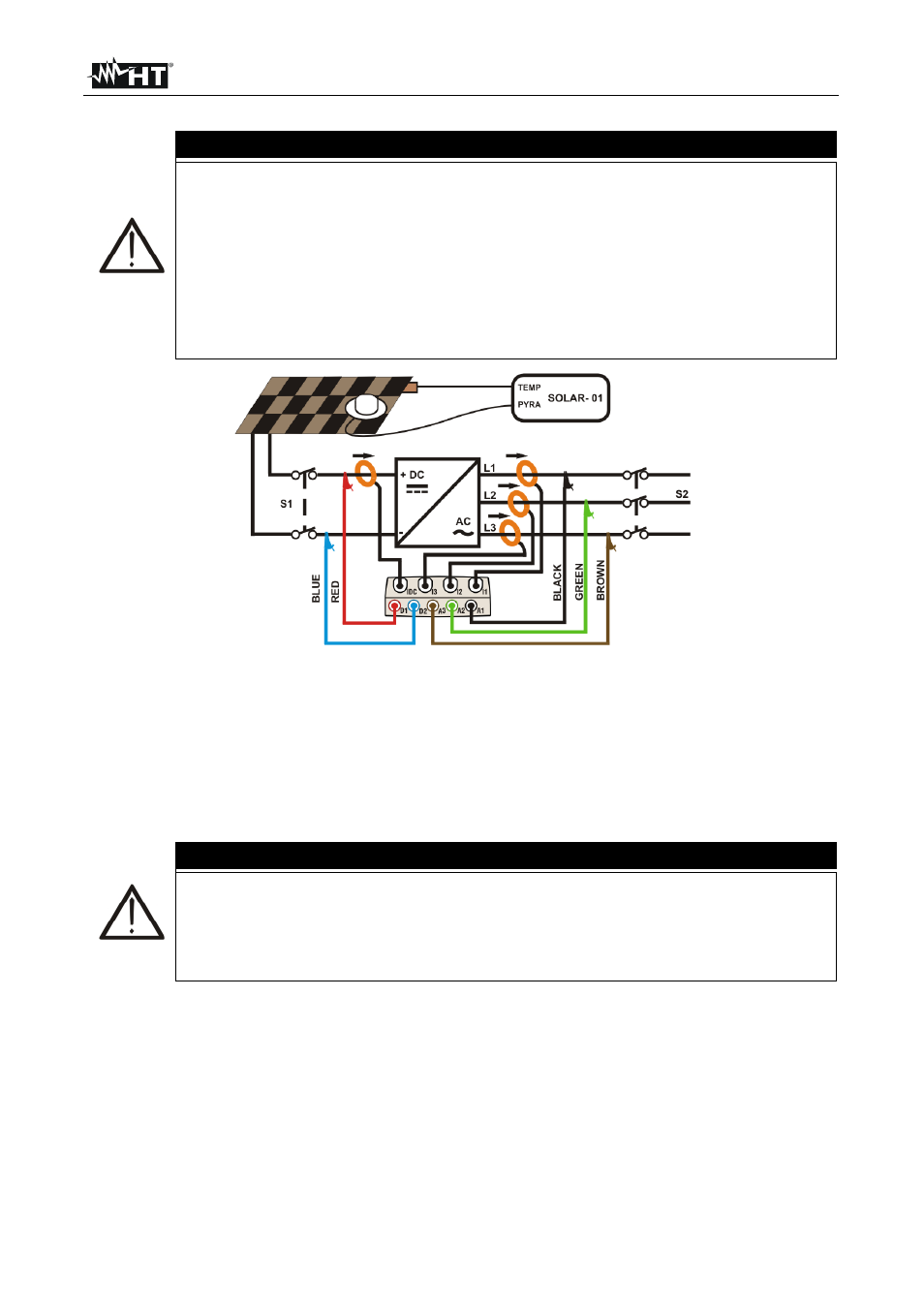

Fig. 250: Connecting the instrument in a PV-3 system with SOLAR-01
1. Check and, if necessary, change the basic settings of the instrument relative to PV-3
configuration (see § 5.3.1, 5.3.2, 5.3.3 and 5.4.2.4). Also check that the parameters of
the photovoltaic system considered correspond to the set values
2. Connect inputs D1 and D2 to the positive and negative string output pole respectively.
Connect inputs A1, A2 and A3 to the phase conductors, respecting the colors as
shown in Fig. 250
CAUTION
BEFORE CONNECT DC CLAMP ON CONDUCTOR
Turn on the clamp, select the correct range and press the ZERO key to the
DC clamp in order to eliminate possible residual magnetizations in the
clamp (values of current up to 0.02A are acceptable). Connect the output
of the clamp to the IDC input of the instrument
3. Connect the DC current clamp to the positive string output conductor by respecting
the direction of the arrow on the clamp itself as indicated in Fig. 250. Check the
status of internal batteries of the DC clamp after the connection to the
installation
4. Connect the AC clamps to the Phase L1, L2, L3 conductors by respecting the
direction of the arrow on the clamps as indicated in Fig. 250. Connect the output of
the clamps to the I1, I2, I3 input of the instrument respectively
5. Supply the electric system considered in case it was temporarily put out of service for
connecting the instrument
