Figure 38 – Agilent Technologies G6600-90006 User Manual
Page 99
Operation and Maintenance Manual
99
10
Holding the splitter fitting, gently insert the upper ceramic tube into the
large ceramic tube coaxially, to avoid placing stress on the fragile upper
ceramic tube. Lower the splitter fitting into place to engage the threads of
the 1/4" Swagelok nut. Tighten finger-tight.
11
If you do not need to replace the Large Ceramic Tube, proceed to
.
12
Remove the Tapered Union Fitting from the bottom of the Burner.
13
Slide the Large Ceramic Tube out of the Burner and remove it from the
Quartz Heater Assembly.
14
Insert the new large ceramic tube into the quartz heater assembly. Position
a 1/4" ferrule (flat end butted up against the top of the swivel nut) onto the
large ceramic tube. With the ferrule positioned against the swivel nut,
approximately 0.5 cm of the large ceramic tube should extend outside of the
nut. Insert the lower Burner tube into the center of the large ceramic tube
and finger tighten the heater swivel nut onto the tapered union fitting.

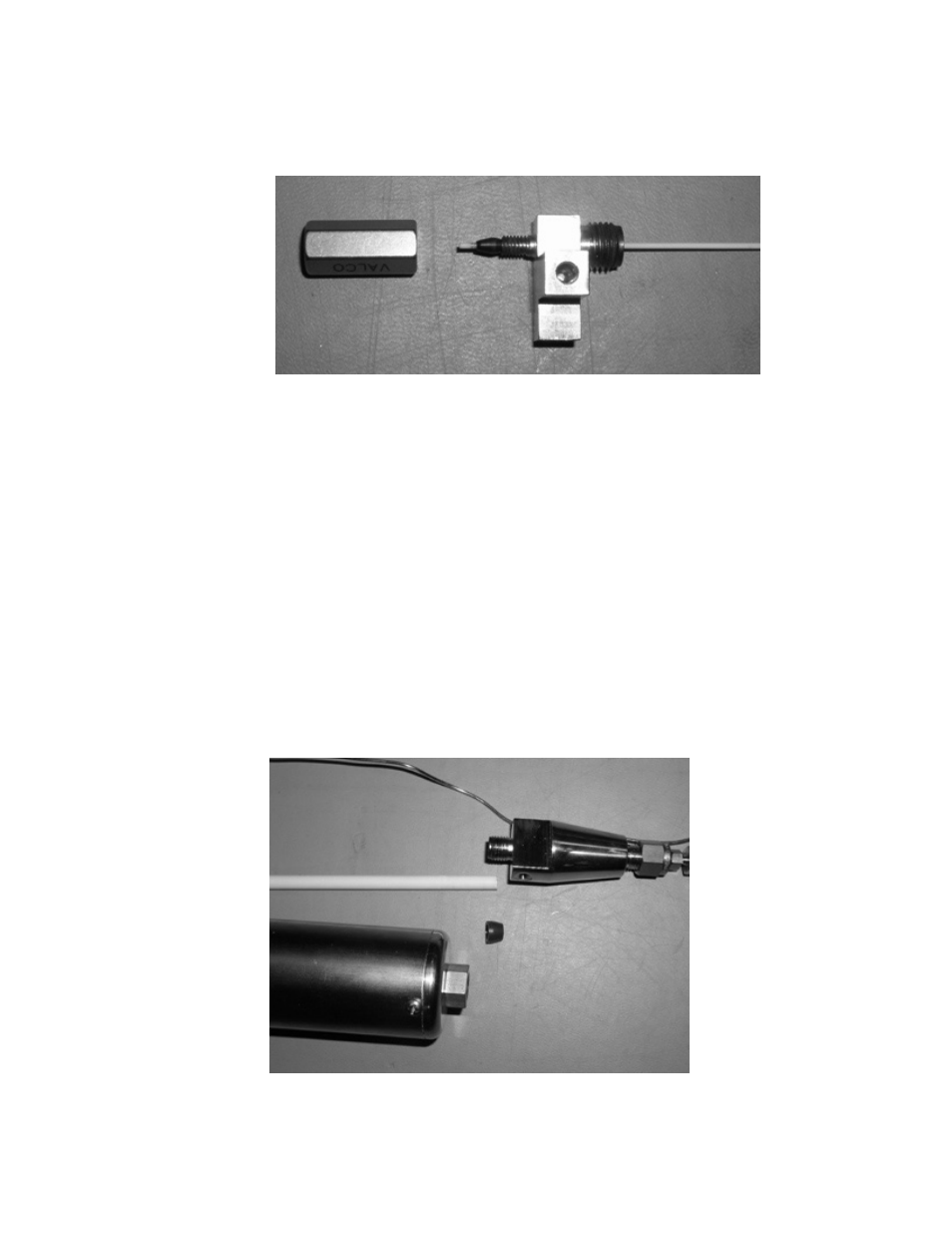

Figure 38 Positioning the Upper Tube in the Union Fitting
Figure 39 Proper Ferrule Orientation to the Large Ceramic Tube
