adapter, rotate this fitting so that the brazed H
2
line is aligned 180 °
(opposite) from the oxidizer Inlet port.
12 Making sure that the Burner inlet fitting does not loosen, use a 1/2" wrench
on a flat of the tapered union fitting and 9/16" wrench on the 1/4" Swagelok
nut of the Burner adapter to tighten the tapered union fitting 1/4" past
finger-tight.
13 Rotate the quartz heater assembly so that the thermocouple and heater
leads are in the same plane and pointed in the same direction as the peg on
the Burner inlet fitting. Turn the splitter fitting so that H2 inlet port is also
aligned with the peg on the Burner inlet fitting.
14 Tighten the nut on the splitter fitting one-quarter turn past finger-tight
using a 9/16" wrench on the 1/4" nut and a 7/16" wrench on the flats of the
splitter fitting.

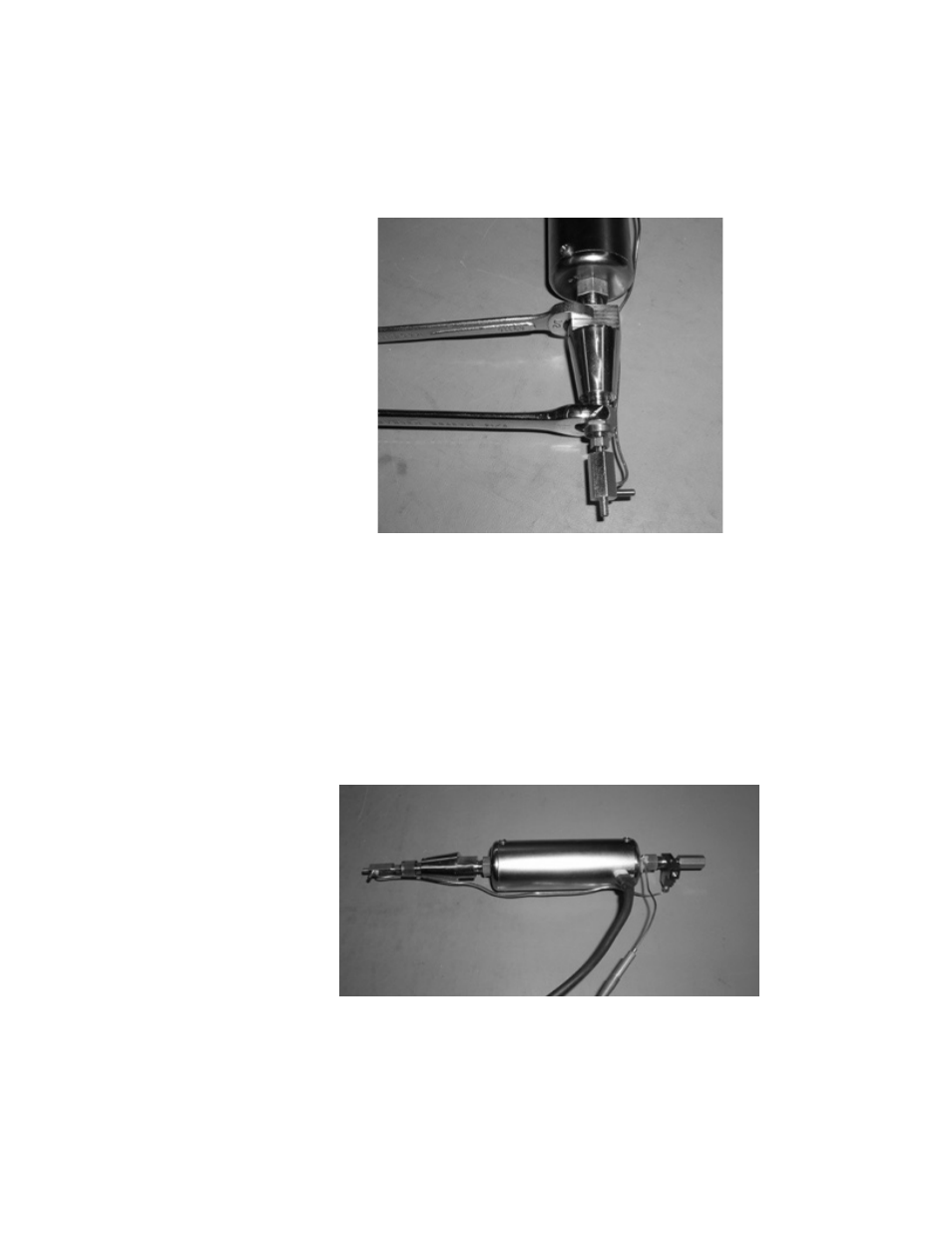

Figure 30 Tightening the Heater Swivel Nut
Figure 31 Proper Alignment of the Burner
