Operation and Maintenance Manual 27
Dual Plasma Controller
The Dual Plasma Controller powers the Dual Plasma Burner and supplies its
gases. Hydrogen and oxidant should be provided at 25 psig (1.72 bar) and the
Controller is plugged into an appropriate AC electrical outlet.
The parameters monitored or regulated by the Controller include Burner

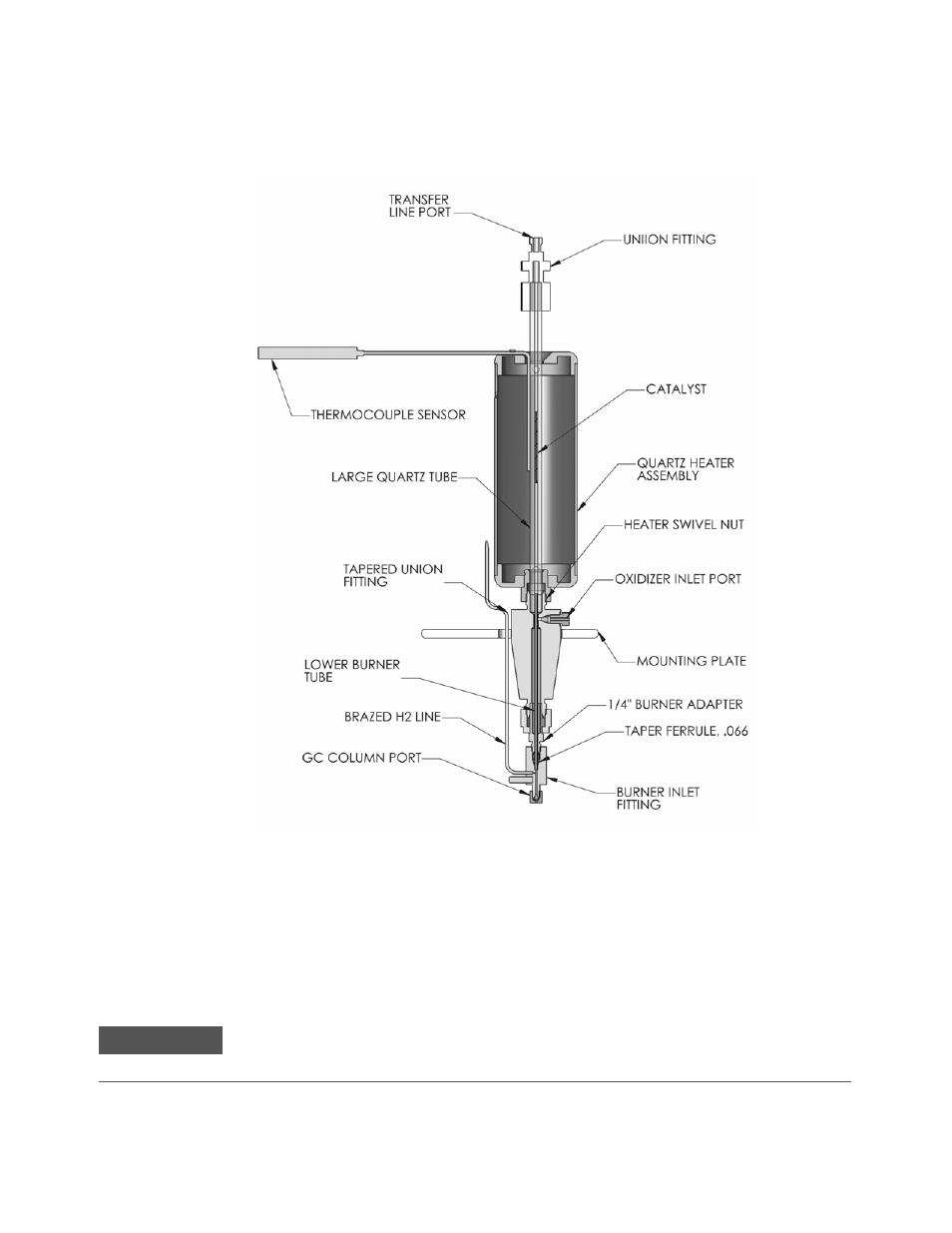

Figure 2 Cross-Section of the Dual Plasma Burner for the 255 NCD
WA R N I N G
Exceeding the gas inlet pressure of 25 psig (1.72 bar) may damage the hydrogen and oxi-
dant sensors or burst their connective tubing.
