220

Fabric OS Encryption Administrator’s Guide (KMIP)

53-1002747-02

Deployment in Fibre Channel routed fabrics

4

Deployment in Fibre Channel routed fabrics

In this deployment, the encryption switch may be connected as part of the backbone fabric to
another switch or blade that provides the EX_port connections (

Figure 126

), or it may form the

backbone fabric and directly provide the EX_port connections (

Figure 127

). The encryption

resources can be shared with the host and target edge fabrics using device sharing between
backbone and edge fabrics.

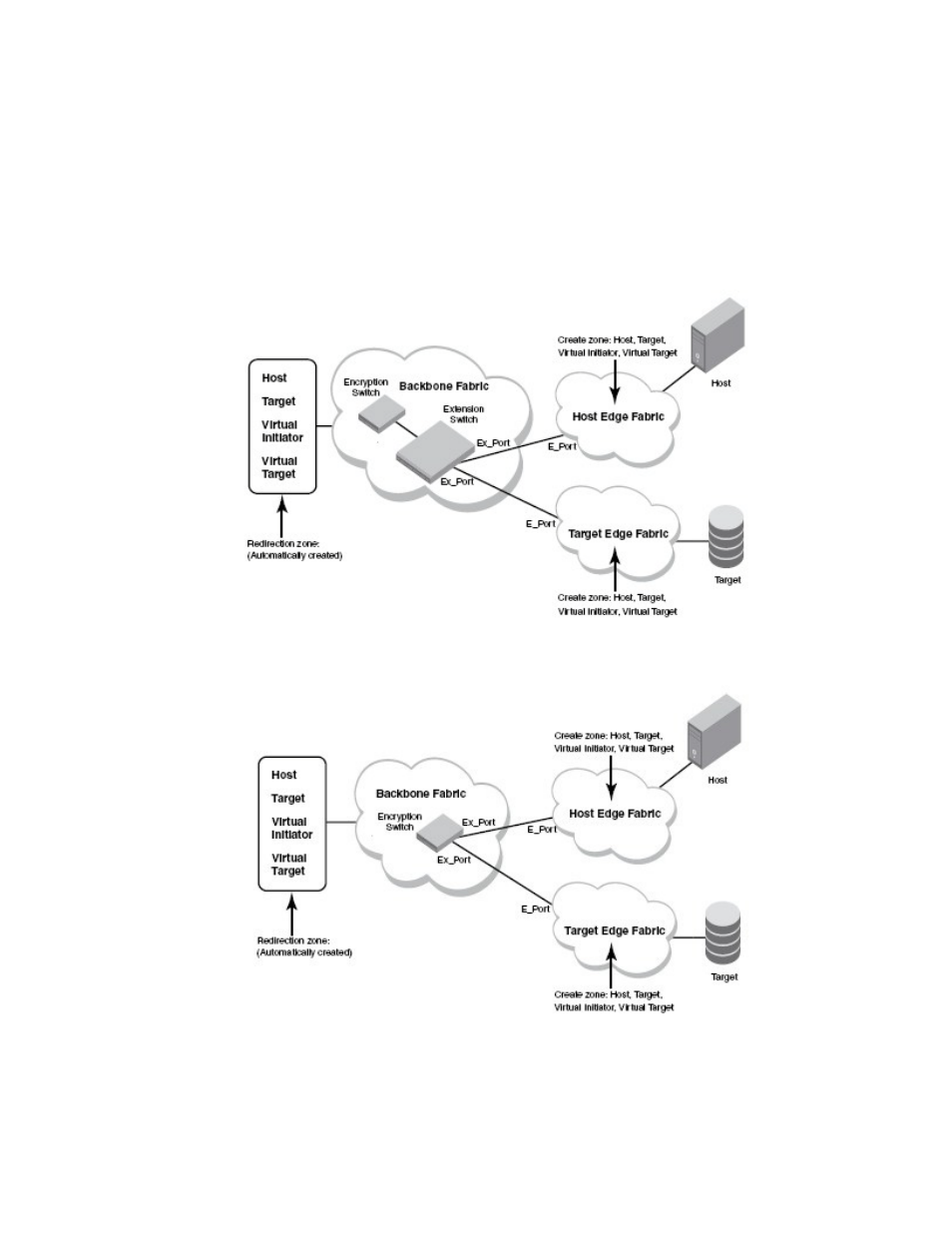

FIGURE 126

Encryption switch connected to FC router as part of backbone fabric

FIGURE 127

Encryption switch as FC router and backbone fabric
