82 Fabric OS Encryption Administrator’s Guide (KMIP)
53-1002747-02
Adding target disk LUNs for encryption
2
Adding target disk LUNs for encryption
You can add a new path to an existing disk LUN or add a new LUN and path by launching the Add
New Path wizard. To launch the wizard, complete the following steps:
Before you can add a target disk LUN for encryption, you must first configure storage arrays. For
more information, refer to
“Configuring storage arrays” on page 87.
1. Select Configure > Encryption from the menu task bar to display the Encryption Center
dialog box.
2. Select a group, switch, or engine from the Encryption Center Devices table, then select
Group/Switch/Engine > Disk LUNs from the menu task bar.
The Encryption Disk LUN View dialog box displays ( Figure 73 ).

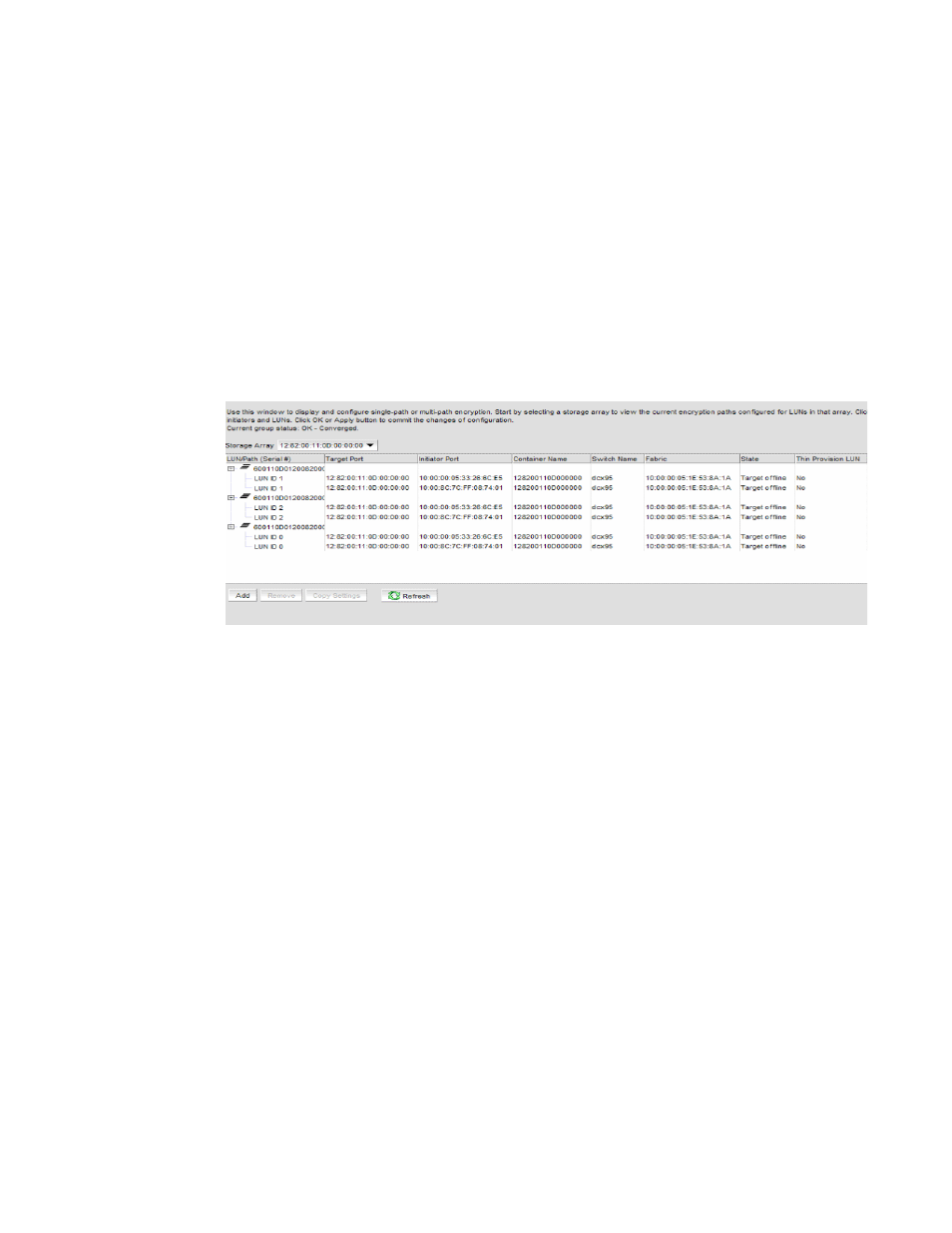

FIGURE 73 Encryption Disk LUN View dialog box
The dialog box provides a convenient way to view and manage disk LUNs that are provisioned
from different hosts, identify conflicts between configuration policies on storage systems, and
to provide a launching point for the Add New Path wizard for configuring multiple I/O paths to
the LUN.
The dialog box contains the following information:
• Storage Array selector: Determines which LUN paths are displayed in the table. Enables
you to select a storage array from the LUN view prior to launching the Add New Path
wizard. Only ports that belong to at least one target container are listed.
• Host selector: Used to select a host from the LUN view prior to launching the Add New Path
wizard. Only ports that belong to at least one target container are listed.
• Encryption path table: Should be LUN/Path identified by the following:
• LUN Path Serial #
• Target Port
• Initiator Port
• Container Name
• Switch Name
• Fabric
• State
• Thin Provision LUN
