Fabric OS Encryption Administrator’s Guide (KMIP)

215

53-1002747-02

Dual fabric deployment - HA and DEK cluster

4

In

Figure 122

, two encryption switches are required, one for each target path. The path from host

port 1 to target port 1 is defined in a CryptoTarget container on one encryption switch, and the path
from host port 2 to target port 2 is defined in a CryptoTarget container on the other encryption
switch. This forms a DEK cluster between encryption switches for both target paths. The DEK
cluster handles the target/host path failover along with the failure of either encryption switch.

Dual fabric deployment - HA and DEK cluster

Figure 123

shows an encryption deployment in a dual fabric SAN. Both fabrics have dual core

directors and several host and target edge switches in a highly redundant core-edge topology.

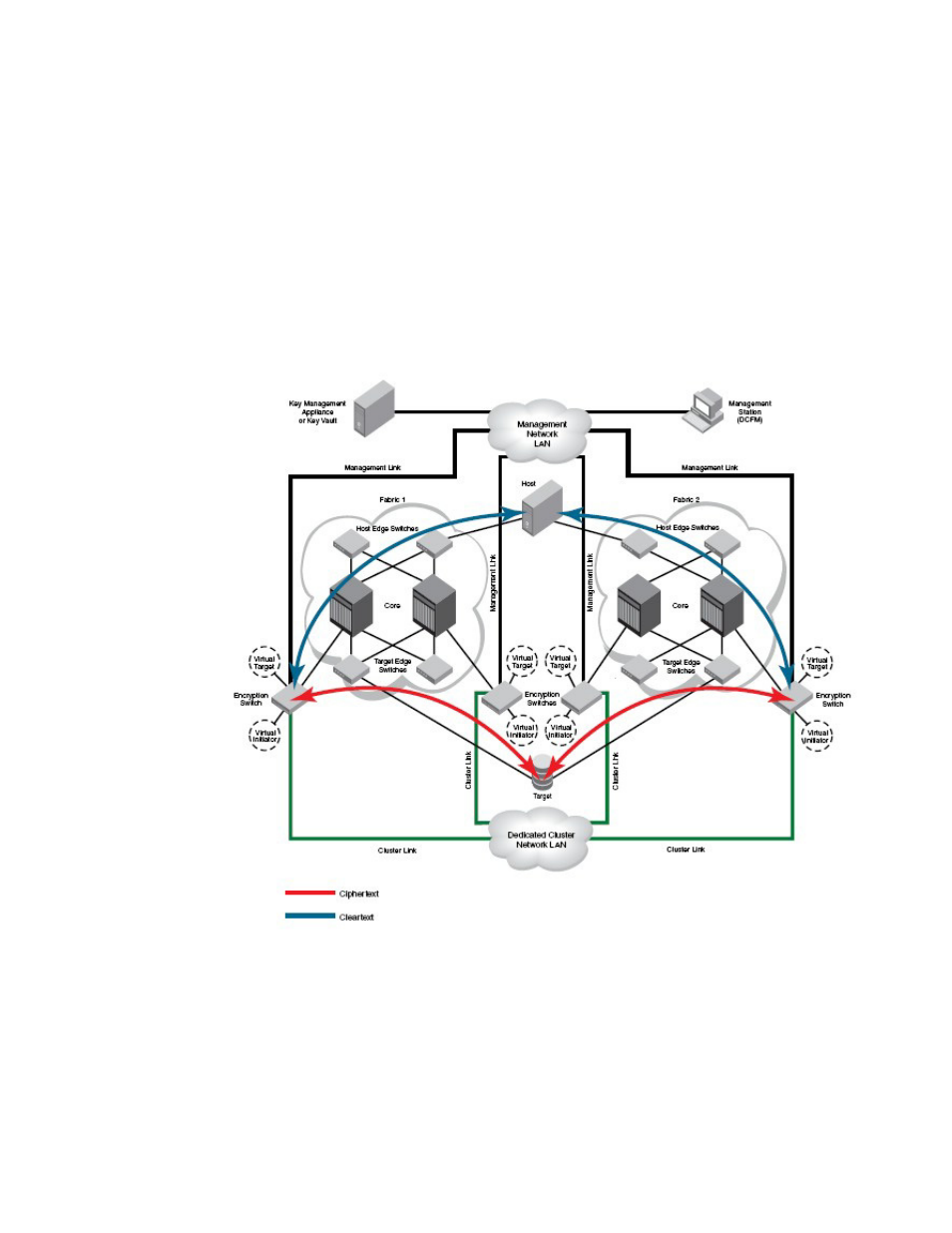

FIGURE 123

Dual fabric deployment - HA and DEK cluster

Figure 123

shows two paths to the target device, one in each fabric. The host also has a path to

each fabric. There are two encryption switches in each fabric, interconnected through a dedicated
cluster LAN. The Ge1 and Ge0 gigabit Ethernet ports on each of these switches are attached to this
LAN. encryption switches 1 and 3 act as a high availability cluster in fabric 1, providing automatic
