Fabric OS Encryption Administrator’s Guide (KMIP)
97
53-1002747-02
Tape LUN statistics
2
•
A Refresh button updates the statistics on the display since the last reset.
•
A Clear button resets all statistics in the display.
5. Do either of the following:
•
Click Clear to clear the tape LUN statistics, then click Yes to confirm.
•
Click Refresh to view the current statistics cumulative since the last reset.
Viewing and clearing statistics for tape LUNs in a container
To view or clear statistics for tape LUNs in a container, follow these steps:
1. Select Configure > Encryption from the menu task bar to display the Encryption Center
dialog box (Refer to
2. Select a group, switch, or engine from the Encryption Center Devices table that contains the
storage device to be configured, then select Group/Switch/Engine > Targets from the menu
task bar.
NOTE
You can also select a group, switch, or engine from the Encryption Center Devices table, then
click the Targets icon.
The Encryption Targets dialog box displays (
). The configured CryptoTarget containers
are listed in the table.

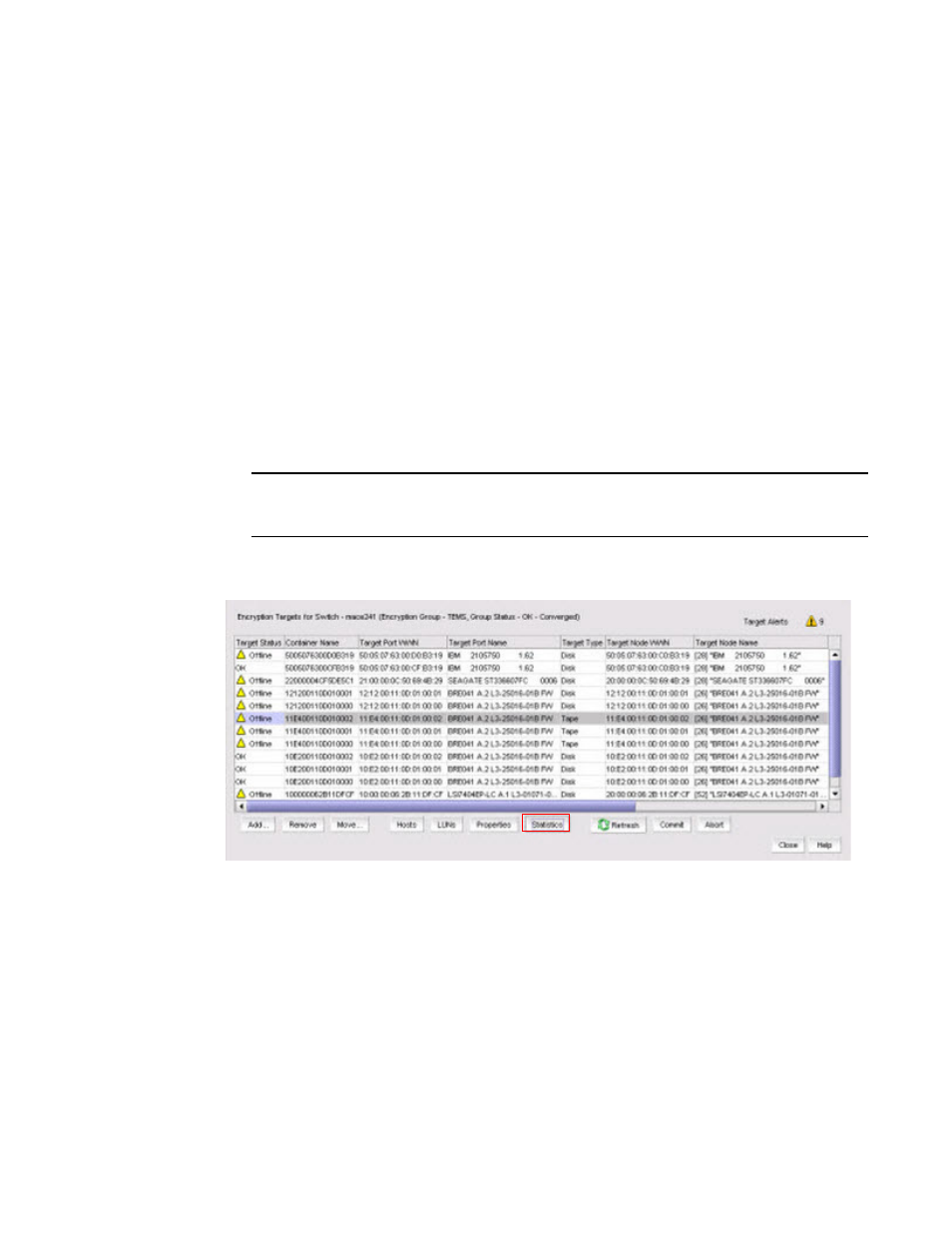

FIGURE 87
Encryption Targets dialog box
3. Select Tape as the container of type for which to display or clear statistics, then click Statistics.
The Tape LUN Statistics dialog box displays (
). The statistics for all LUNs that are
members of the selected tape container are displayed.
