84

Fabric OS Encryption Administrator’s Guide (KMIP)

53-1002747-02

Adding target disk LUNs for encryption

2

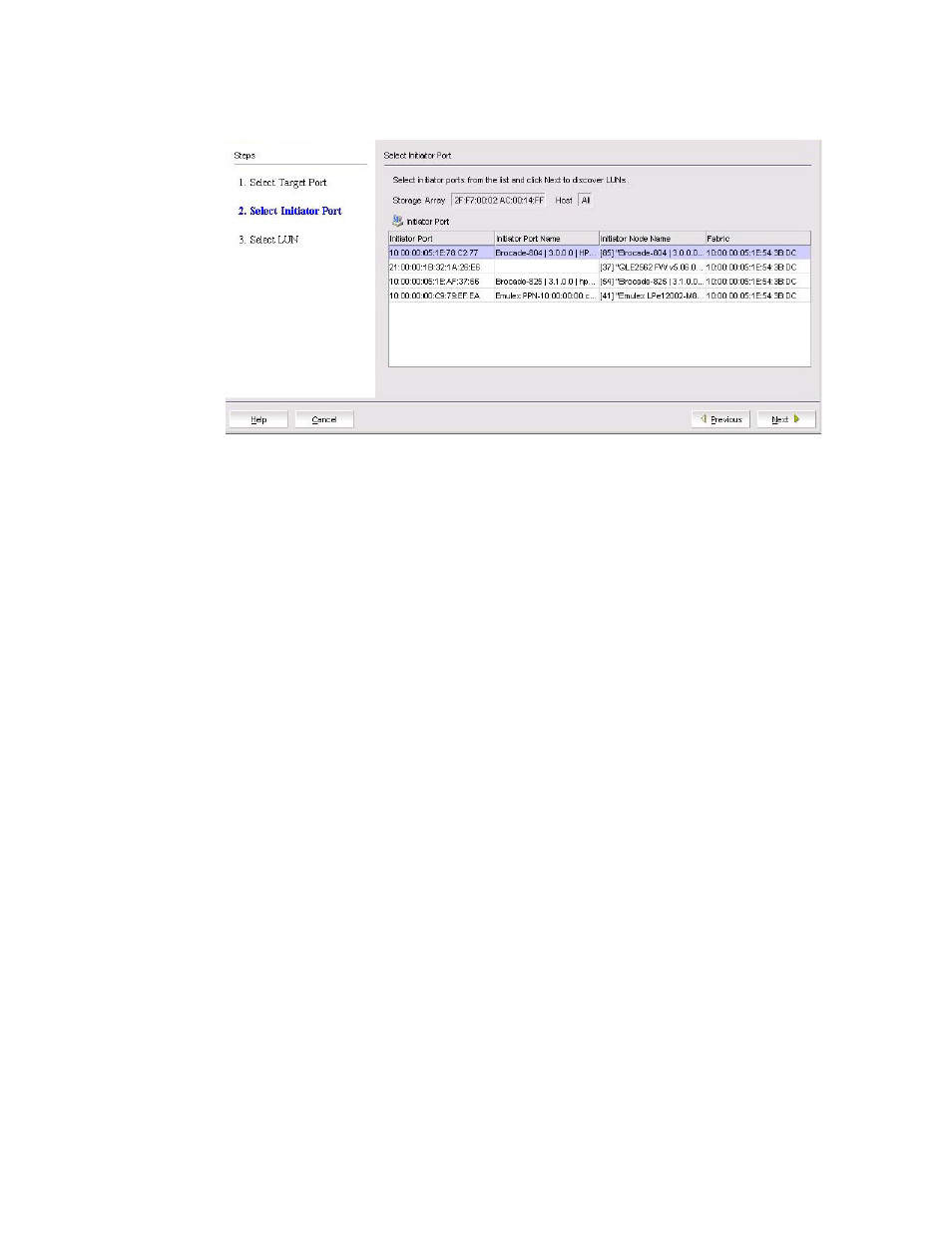

FIGURE 75

Select Initiator Port dialog box

The dialog box is used to select an initiator port when configuring multiple I/O paths to a disk
LUN. The dialog box contains the following information:

Storage Array: Displays the storage array that was selected from the LUN view prior to
launching the wizard.

Host: The host selected from the LUN view prior to launching the wizard.

Initiator Port table: Lists initiator ports using the following identifiers:

Initiator Port

Initiator Port Name

Initiator Node Name

Fabric

5. Select the initiator port from the Initiator Port table, then click Next.

LUN discovery is launched and a progress bar displays. There are four possible outcomes:

-

A message displays indicating no LUNs were discovered. Click OK to dismiss the message
and exit the wizard.

-

A message displays indicating LUNs have been discovered, but are already configured.
Click OK to dismiss the message and exit the wizard.

-

A message displays indicating that the target is not in the right state for discovering LUNs.
Click OK to dismiss the message and exit the wizard.

-

The Select LUN dialog box displays (

Figure 76

), which lists discovered LUNs that are

available.
