Multiple paths, one DEK cluster, and two HA clusters

4

failover for the encryption path between the host and target in fabric 1. Encryption switches 2 and
4 act as a high availability cluster in fabric 2, providing automatic failover for the encryption path
between the host and target in fabric 2. All four encryption switches provide an encryption path to
the same LUN, and use the same DEK for that LUN, forming a DEK cluster.

Multiple paths, one DEK cluster, and two HA clusters

Figure 124

shows a configuration with a DEK cluster that includes two HA clusters, with multiple

paths to the same target device.

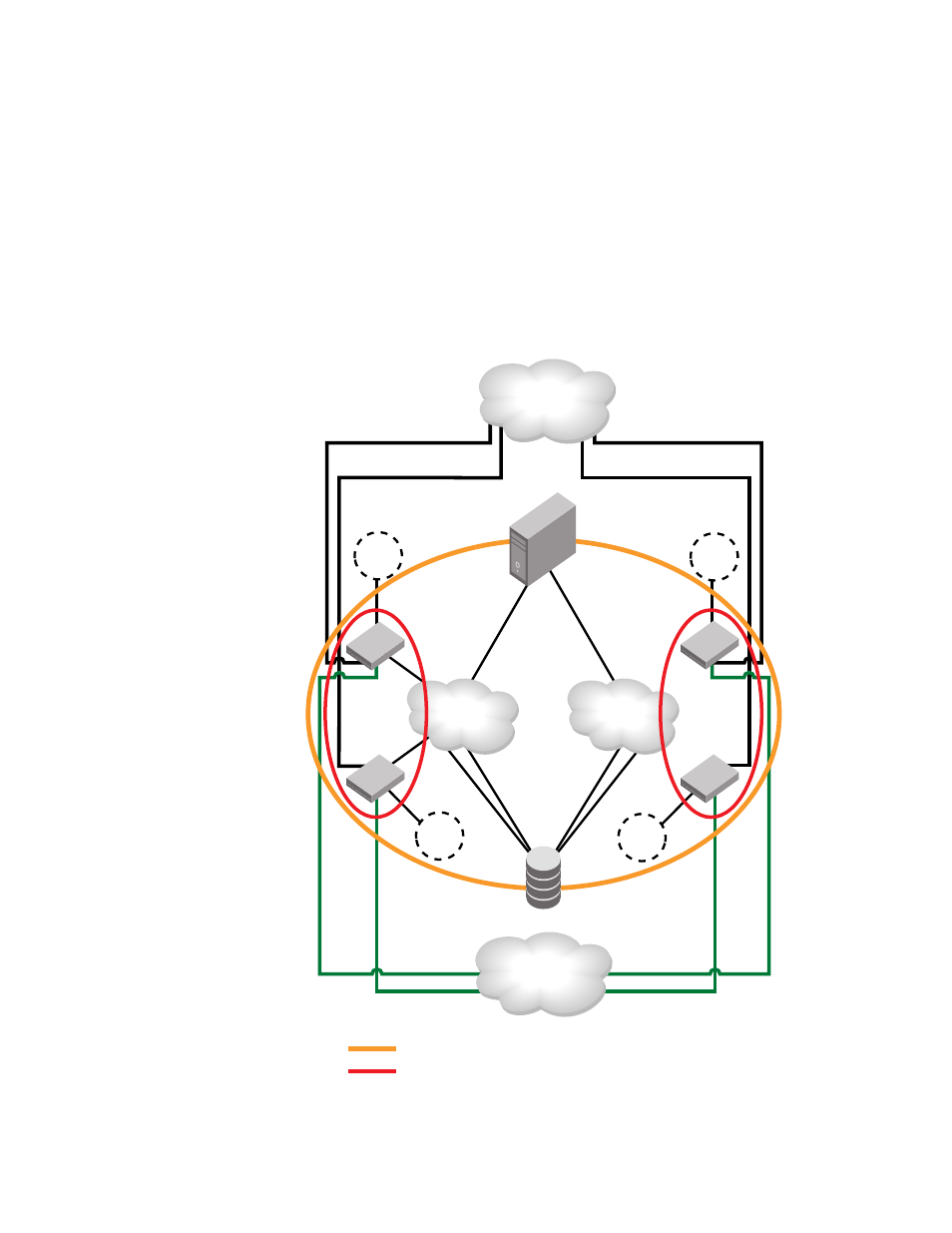

FIGURE 124

Multi-path, DEK cluster and HA cluster
